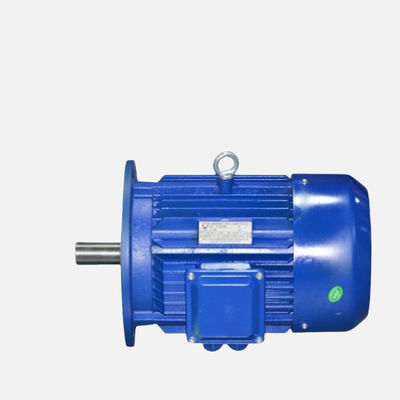

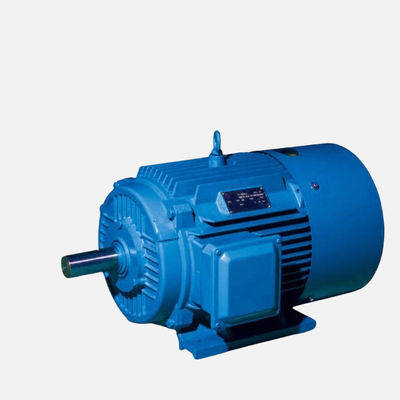

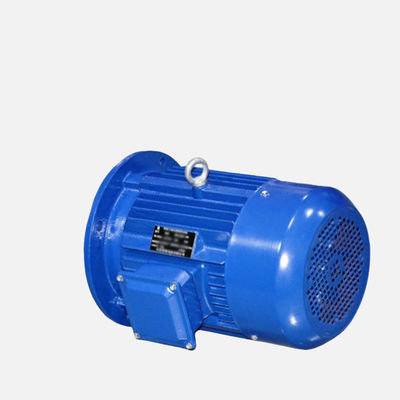

Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series（1.5~11KW）

  • Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series（1.5~11KW）
  • Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series（1.5~11KW）
  • Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series（1.5~11KW）
Place of Origin CHINA
Brand Name HC
Certification CCC CE
Model Number HCP S/M/L (1.5~11kw)
Minimum Order Quantity 10PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C, T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Brushless Electric Motor Application Industry Petrochemical, Mining, Electric Power
Application Mill, Fans, Pumps, Compressors, Extruders, Belt Machines Models HCP Permanent Magnet Frequency Conversion Series
Protection Class IP54/IP55 Insulation Level F
Rated Power 1.1~11KW Rated Speed 750r~3000r
Rated Voltage 380(V) Or Made To Order
Highlight

PMSMipm electric motor

,

ipm electric motor 1.5kw

,

synrm electric motor 11kw
Leave a Message
Product Description

Permanent Magnet Low Voltage Synchronous Motor(PMSM) HCP series(1.1~11KW)



Description



The factory is a strategic partner of Beijing Institute of Precision Electromechanical Control Equipment under China Aerospace Science and Technology Corporation.

The factory has been combined with the production, education and research of China Aerospace, the Institute of Electrical Engineering of the Chinese Academy of Sciences and other related units, and fully relies on the strong equipment research and development capabilities of China Aerospace to ensure the excellent performance of the products, stable and reliable quality.


1. Material



The stator winding of this series of products adopts high-quality pure copper coil, and the rotor adopts sintered NdFeB rare earth permanent magnet, high standard material selection, and long service life of the product;


2. Design



ultra-light, ultra-thin, compact motor structure design, high power density (24nm/kg, 5.8kw/kg), small size, higher efficiency and wider economic operating range, with significant energy-saving effect;


3. Process



The stator skeleton adopts PEEK material with high strength and high insulation characteristics, the epoxy material filling and potting, which adopts high strength and high thermal conductivity, fills and seals to solve the fixing and cooling needs, the iron core adopts high magnetic permeability and low loss amorphous alloy material, the winding adopts spiral centralized molding, multi-stage winding, SMC material and permanent magnet fixation, and adopts magnetic pole shoe process and demagnetization protection technology to ensure the stability and reliability of the product.





Performance
Please refer to the following table for the specific parameters of this series of products:



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300
