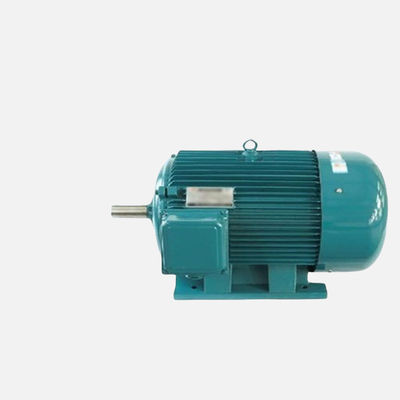

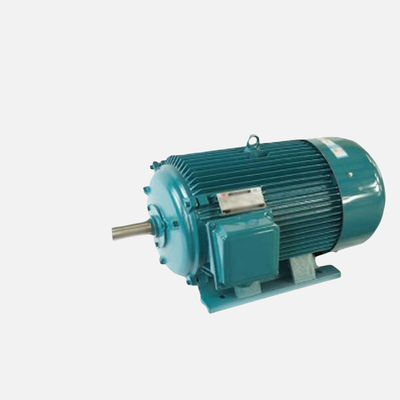

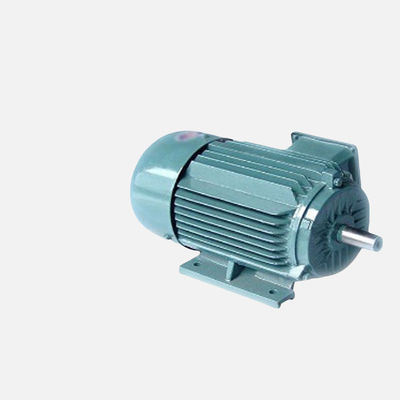

IC01 Cooling Type Synchronous Permanent Magnet Motor For Heavy Duty Applications

  • IC01 Cooling Type Synchronous Permanent Magnet Motor For Heavy Duty Applications
  • IC01 Cooling Type Synchronous Permanent Magnet Motor For Heavy Duty Applications
  • IC01 Cooling Type Synchronous Permanent Magnet Motor For Heavy Duty Applications
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-20
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Type IC01 Insulation Level F
Working System S1 Rate Output 1.1~11KW
Rated Speed 750r~3000r Speed Adjust By VFD
Efficiency Level IE4 Category Electric Wrenches
Highlight

IC01 permanent magnet motor

,

Cooling Type permanent magnet motor

,

Heavy Duty ipm synrm motor
Leave a Message
Product Description

IC01 Cooling Type Synchronous Permanent Magnet Motor for Heavy Duty Applications

Product Description:

Product Overview - Permanent Magnet Synchronous Motor

The Permanent Magnet Synchronous Motor is a high-performance motor designed for use in electric wrenches. It is a type of External Rotor Motor, which means that the rotor is located on the outside of the motor, making it more efficient and powerful.

Key Features
  • High Efficiency: The Permanent Magnet Synchronous Motor has a high efficiency rating, meaning that it can convert a large amount of electrical energy into mechanical energy, resulting in less energy waste and cost savings.
  • High Power Density: This motor has a compact design, making it suitable for use in tools with limited space. Despite its small size, it is able to deliver high power output, making it ideal for heavy-duty applications.
  • Low Noise: With advanced design and precision manufacturing, the Permanent Magnet Synchronous Motor operates with minimal noise, providing a quieter work environment for users.
  • Long Lifetime: This motor is built to last, with durable components and materials that can withstand frequent use and harsh working conditions. This ensures a longer lifetime and reduces the need for frequent replacements.
Product Specifications
  • Category: Electric Wrenches
  • Type: Permanent Magnet
  • Rated Speed: 750r~3000r
  • Protection Grade: IP54/IP55
  • Insulation Level: F
Applications

The Permanent Magnet Synchronous Motor is commonly used in electric wrenches for various industrial and commercial applications, including:

  • Tightening and loosening bolts and screws in manufacturing and assembly lines
  • Automotive repair and maintenance
  • Construction and building projects
  • Shipbuilding and ship repair
Conclusion

The Permanent Magnet Synchronous Motor is a reliable and powerful motor that is specifically designed for use in electric wrenches. Its high efficiency, compact design, low noise, and long lifetime make it a valuable and essential component in a wide range of industrial and commercial applications.



Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Dimensions: As Customers’ Requirements
  • Speed Adjust: By VFD
  • Insulation level: F
  • Phase: Three-phase, Three Phase
  • Efficiency Level: IE4
  • Blushless AC Synchronous Motor
  • Permanent Magnet AC Motor
  • Synchronous Permanent Magnet Motor


Technical Parameters:

Product Name Permanent Magnet Synchronous Motor
Cooling Type IC01
Speed Adjust By VFD
Working System S1
Insulation Level F
Rated Output 1.1~11KW
Category Electric Wrenches
Main Parts Imported
Efficiency Level IE4
Phase Three-phase, Three Phase
Type Permanent Magnet
Key Features Blushless AC Synchronous Motor, Internal Permanent Magnet Motor, Magnetic Synchronous Motor

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

IC01 Cooling Type Synchronous Permanent Magnet Motor For Heavy Duty Applications 0

Applications:

HC JN-HCP-5 Permanent Magnet Synchronous Motor: Powering Your Industry

Are you looking for a reliable and efficient motor to power your industrial processes? Look no further than HC's JN-HCP-5 Permanent Magnet Synchronous Motor. This highly acclaimed motor is designed to deliver superior performance and stability in a wide range of applications. With its advanced technology and top-notch features, it is the perfect choice for industries that demand precision and efficiency.

Product Attributes
  • Brand Name: HC
  • Model Number: JN-HCP-5
  • Place of Origin: CHINA
  • Certification: ISO9001 CCC CE
  • Minimum Order Quantity: 50PCS
  • Price: Negotiable
  • Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
  • Delivery Time: 25 Days
  • Payment Terms: L/C,T/T
  • Supply Ability: 30K PCS/Month
  • Phase: Three-phase, Three Phase
  • Efficiency Level: IE4
  • Main Parts: Imported
  • Category: Electric Wrenches
  • Rated speed: 750r~3000r
Application Scenarios

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is suitable for a wide range of industries and applications. Some of the common scenarios where it can be used are:

  1. Industrial Automation: The motor's high efficiency and precision make it an ideal choice for automating industrial processes such as assembly lines, packaging, and material handling.
  2. Robotics: The motor's compact design and precise control make it a perfect fit for robotic applications, such as robotic arms and end-effectors.
  3. Medical Equipment: The motor's smooth and quiet operation, along with its high accuracy, makes it a promising option for medical equipment like MRI machines, X-ray machines, and surgical robots.
  4. Electric Vehicles: With its powerful performance and energy-saving features, the HC JN-HCP-5 motor is an excellent choice for electric vehicles, including cars, bikes, and scooters.
  5. Renewable Energy: The motor's high efficiency and low maintenance make it an excellent fit for renewable energy systems, such as wind turbines and solar panels.
Why Choose HC JN-HCP-5 Permanent Magnet Synchronous Motor?

There are several reasons why the HC JN-HCP-5 Permanent Magnet Synchronous Motor stands out from its competitors:

  • Synchronous Permanent Magnet Motor: The HC JN-HCP-5 motor uses a synchronous permanent magnet design, which ensures high efficiency and precise control.
  • Blushless AC Synchronous Motor: The motor operates on AC power, but with a blushless design, eliminating the need for brushes, reducing maintenance and improving reliability.
  • Advanced Technology: The motor is equipped with advanced technology, such as imported main parts and IE4 efficiency level, making it one of the most advanced motors in the market.
  • Customizable: The motor can be customized according to specific requirements, such as different power ratings, speeds, and mounting options.
  • Reliable Performance: The HC JN-HCP-5 motor is designed for long-term and heavy-duty use, ensuring stable and reliable performance even in harsh industrial environments.

Don't compromise on the performance and efficiency of your industrial processes. Choose the HC JN-HCP-5 Permanent Magnet Synchronous Motor and experience the difference it can make. Contact us today to learn more about this amazing product and how it can benefit your industry.



Customization:

Customized Services for Permanent Magnet Synchronous Motor

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: CHINA

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C,T/T

Supply Ability: 30K PCS/Month

Dimensions: As Customers’ Requirements

Efficiency Level: IE4

Phase: Three-phase, Three Phase

Category: Electric Wrenches

Type: Permanent Magnet

At HC, we understand that every customer has unique needs and requirements. That's why we offer customized services for our Permanent Magnet Synchronous Motor (PMSM). As a leading manufacturer of Blushless AC Synchronous Motor and Magnetic Synchronous Motor, we are committed to providing the best solutions for your specific applications.

Our PMSM, model number JN-HCP-5, boasts superior quality and performance. It is manufactured in China and has obtained ISO9001, CCC, and CE certifications, ensuring its reliability and safety. With a minimum order quantity of 50PCS, we offer competitive pricing for our high-quality product.

In terms of packaging, we provide various options to suit your transportation needs. You can choose from our Sea Pallet, Air Carton, or Express Packaging services. Our delivery time is 25 days, and we accept flexible payment terms such as L/C and T/T.

With a monthly supply ability of 30K PCS, we can meet your demand for PMSM in a timely manner. We also offer customized dimensions to fit your specific requirements. Our PMSM is highly efficient with an IE4 efficiency level and operates on three-phase power.

At HC, we specialize in electric wrenches and our PMSM is a perfect fit for this category. Its permanent magnet design ensures reliable and long-lasting performance. Trust us to provide the best customized services for your Permanent Magnet Synchronous Motor needs. Contact us now for more information!



Packing and Shipping:

Packaging and Shipping for Permanent Magnet Synchronous Motor

Our Permanent Magnet Synchronous Motor is carefully packaged to ensure safe delivery to our customers. Each motor is wrapped in protective materials and placed in a sturdy cardboard box. Extra cushioning is added to prevent any damage during transportation.

We offer various shipping options to accommodate our customers' needs. Our motors can be shipped domestically or internationally through trusted carriers. We also provide expedited shipping for urgent requests.

All orders are processed and shipped within 1-2 business days. Once your order is shipped, a tracking number will be provided for easy monitoring of your package.

For international orders, please note that customs and duty fees may apply and are the responsibility of the customer.

Upon receiving the package, please inspect the motor for any damages. If you have any concerns, please contact us immediately and we will assist you with the return or replacement process.

Thank you for choosing our Permanent Magnet Synchronous Motor. We strive to provide the best products and services to our customers.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is HC.
  • Q: What is the model number of this product?
  • A: The model number of this product is JN-HCP-5.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What certifications does this product have?
  • A: This product has ISO9001, CCC, and CE certifications.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 50PCS.
  • Q: Is the price negotiable?
  • A: Yes, the price for this product is negotiable.
  • Q: How is this product packaged?
  • A: This product can be packaged by sea pallet, air carton, or express packaging.
  • Q: How long is the delivery time for this product?
  • A: The delivery time for this product is 25 days.
  • Q: What are the payment terms for this product?
  • A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 30,000 PCS per month.
Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
