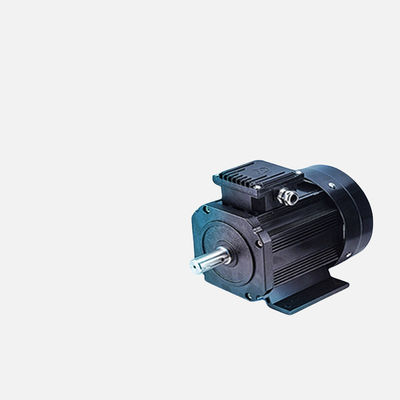

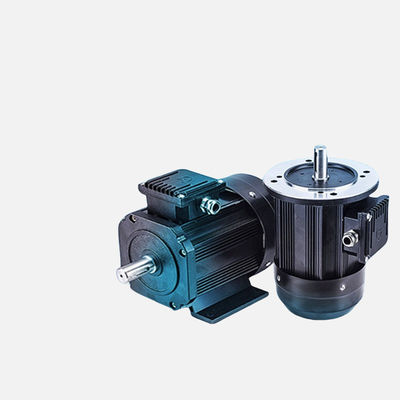

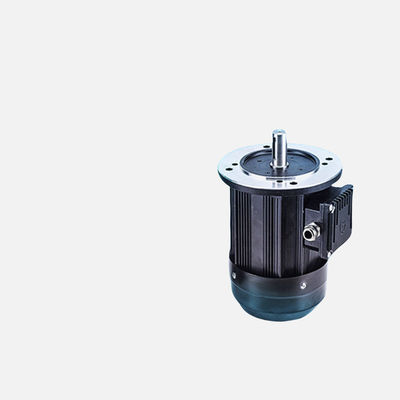

Cooling Type IC01 External Rotor Motor 1.1-11KW For Industrial Applications

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSpeed Adjust | By VFD | Insulation Level | F |
---|---|---|---|
Cooling Type | IC01 | Rated Speed | 750r~3000r |
Rated Voltage | 380V Or Made To Order. | Protection Grade | IP54/IP55 |
Category | Electric Wrenches | Rate Output | 1.1~11KW |
Highlight | IP55 Permanent Magnet Synchronous Motor,Permanent Magnet Synchronous Motor 11KW,External Rotor Motor 1.1KW |
Cooling Type IC01 External Rotor Motor 1.1-11KW for Industrial Applications
Product Description:
The Permanent Magnet Synchronous Motor is a type of electric motor that uses a permanent magnet to generate the magnetic field required for its operation. It is also known as a Synchronous Permanent Magnet Motor, as the rotor and stator are synchronized in rotation.
This innovative motor has a rated speed of 750r to 3000r, making it suitable for a wide range of industrial applications. With a rated output ranging from 1.1KW to 11KW, it provides reliable and efficient performance, making it a preferred choice for various industries.
- High efficiency
- Energy saving
- Low noise
- Smooth operation
The Permanent Magnet Synchronous Motor is designed to provide maximum efficiency and energy savings, making it an ideal solution for industries looking to reduce their energy consumption. Its low noise operation ensures a comfortable working environment, while its smooth operation minimizes vibrations and ensures stable performance.
The Motor has a protection grade of IP54 or IP55, making it suitable for use in harsh environments. The IP54 rating ensures protection against dust and splashing water, while the IP55 rating offers additional protection against jets of water from any direction.
All the main parts of the Permanent Magnet Synchronous Motor are imported, ensuring high quality and reliability. These parts are carefully selected and tested to meet the highest standards, making the motor a durable and long-lasting solution for your industrial needs.
The Permanent Magnet Synchronous Motor is a type of permanent magnet motor, which means it uses a permanent magnet in its construction. This type of motor offers several advantages over other types, such as high efficiency, low maintenance, and compact size.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Protection Grade: IP54/IP55
- Phase: Three-phase, Three Phase
- Category: Electric Wrenches
- Type: Permanent Magnet
- Insulation level: F
- Keywords: PMSM, Magnetic Synchronous Motor, Brushless DC Electric Motor, High Efficiency, Low Noise, Low Vibration
Technical Parameters:
Dimensions | As Customers' Requirements |
---|---|
Rate Output | 1.1~11KW |
Main Parts | Imported |
Type | PMSM (Permanent Magnet Synchronous Motor) |
Category | Electric Wrenches |
Cooling Type | IC01 (self-ventilated) |
Rated Voltage | 380V or Made to Order |
Working System | S1 (continuous duty) |
Phase | Three-phase / Three Phase |
Insulation Level | F (high insulation level for enhanced safety) |
PMSM (Permanent Magnet Synchronous Motor) | Multiphase Permanent Magnet Motor / Internal Permanent Magnet Motor |
---|---|
Dimensions | As Customers' Requirements |
Rate Output | 1.1~11KW |
Main Parts | Imported |
Type | PMSM |
Category | Electric Wrenches |
Cooling Type | IC01 |
Rated Voltage | 380V or Made to Order |
Working System | S1 |
Phase | Three-phase / Three Phase |
Insulation Level | F |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
The Permanent Magnet Synchronous Motor, also known as the Blushless AC Synchronous Motor, is a high performance motor developed by HC. With its advanced technology, efficient design and superior quality, it has become one of the most sought after motors in the market.
- Brand Name: HC
- Model Number: JN-HCP-5
- Place of Origin: China
- Certification: ISO9001 CCC CE
- Minimum Order Quantity: 50PCS
- Price: Negotiable
- Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
- Delivery Time: 25 Days
- Payment Terms: L/C,T/T
- Supply Ability: 30K PCS/Month
- Insulation level: F
- Main Parts: Imported
- Protection Grade: IP54/IP55
- Cooling Type: IC01
- Rated voltage: 380V Or Made To Order.
- External Rotor Motor: The motor is designed with an external rotor, which provides a compact and efficient structure, making it easier to install and maintain.
- Multiphase Permanent Magnet Motor: This motor uses a multiphase permanent magnet design, which provides higher torque and better control, making it suitable for a wide range of applications.
- High Efficiency: The permanent magnet design and advanced technology make this motor highly efficient, resulting in energy savings and lower operating costs.
- Energy Saving: With its high efficiency and energy-saving design, this motor is an eco-friendly option for various industries.
- Low Noise: The advanced design and construction of this motor ensure low noise operation, making it suitable for noise-sensitive environments.
- Reliable Performance: HC has a strict quality control system in place to ensure that each motor meets the highest standards, providing reliable performance and long service life.
- Wide Range of Applications: This motor can be used in various industries such as HVAC, industrial automation, transportation, and more.
- HVAC Systems: The Permanent Magnet Synchronous Motor is widely used in HVAC systems for its high efficiency, low noise, and reliable performance.
- Industrial Automation: With its multiphase permanent magnet design, this motor is suitable for various industrial automation applications, providing precise control and high torque.
- Transportation: The compact and efficient design of this motor makes it ideal for use in transportation systems such as electric vehicles, elevators, and more.
- Renewable Energy: This motor can be used in wind turbines and other renewable energy systems, providing high efficiency and reliable performance.
- Household Appliances: The energy-saving design of this motor makes it a suitable choice for household appliances such as refrigerators, washing machines, and more.
The Permanent Magnet Synchronous Motor by HC is a high-quality, efficient, and eco-friendly motor that can be used in a wide range of applications. With its advanced technology, reliable performance, and energy-saving design, it is the perfect solution for your motor needs.
Customization:
HC offers customization service for our Permanent Magnet Synchronous Motor, also known as Magnetic Synchronous Motor or PM Synchronous Motor. With our expertise and advanced technology, we can meet your specific requirements and provide you with a motor that is tailored to your needs.
Our motor, model number JN-HCP-5, is proudly made in CHINA and certified with ISO9001, CCC, and CE. The minimum order quantity is 50 pieces, and the price is negotiable. We use high-quality materials and advanced packaging methods, such as By Sea Pallet, By Air Carton, or By Express Packaging, to ensure safe delivery of our products.
Our delivery time is 25 days, and we accept payment through L/C and T/T. Our supply ability is 30,000 pieces per month, making us a reliable and efficient supplier for your business. Our Permanent Magnet Synchronous Motor is a type of motor that uses permanent magnets to create a magnetic field, resulting in better performance and efficiency. The dimensions can be customized according to your requirements, and the speed can be adjusted using a VFD (Variable Frequency Drive).
This motor also has a rate output of 1.1~11KW, making it suitable for various industrial applications. The main parts of our motor are imported, ensuring high quality and reliability. Choose HC for your customization needs and experience the power of our Permanent Magnet Synchronous Motor.
Packing and Shipping:
The Permanent Magnet Synchronous Motor is carefully packaged and shipped to ensure safe delivery to our customers. Our packaging and shipping process follows industry standards and guidelines to guarantee the best protection for the motor.
The motor is first placed in a sturdy, custom-made cardboard box. It is then wrapped in multiple layers of bubble wrap to prevent any damage during transportation. The box is sealed with high-strength tape to secure the motor in place.
For international shipments, the motor is placed in a wooden crate to provide extra protection. The crate is also heat-treated to comply with international shipping regulations.
We offer various shipping options to meet our customers' needs. For local shipments, we use reliable courier services to ensure prompt and safe delivery. For international shipments, we work with trusted freight forwarders to ensure efficient transportation and timely delivery.
Customers can also choose to use their own preferred shipping methods. In such cases, we will provide the necessary documentation and support to facilitate the shipping process.
Our team carefully tracks each shipment to ensure that it reaches its destination on time and in perfect condition. We take pride in our packaging and shipping process and strive to provide the best service to our customers.
FAQ:
- Q1: What is the brand name of the product?
- A1: The brand name is HC.
- Q2: What is the model number of the product?
- A2: The model number is JN-HCP-5.
- Q3: Where is this product manufactured?
- A3: This product is manufactured in China.
- Q4: What certifications does this product have?
- A4: This product is certified with ISO9001, CCC, and CE.
- Q5: What is the minimum order quantity for this product?
- A5: The minimum order quantity is 50PCS.
