750r-3000r Rated Speed Permanent Magnet Synchronous Motor For Industrial Applications

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCooling Type | IC01 | Type | Permanent Magnet |
---|---|---|---|
Phase | Three-phase, Three Phase | Main Parts | Imported |
Speed Adjust | By VFD | Protection Grade | IP54/IP55 |
Dimensions | As Customers’ Requirements | Insulation Level | F |
Highlight | 750RPM Permanent Magnet Synchronous Motor,3000RPM Permanent Magnet Synchronous Motor,oem pmsm motor for electric vehicles |

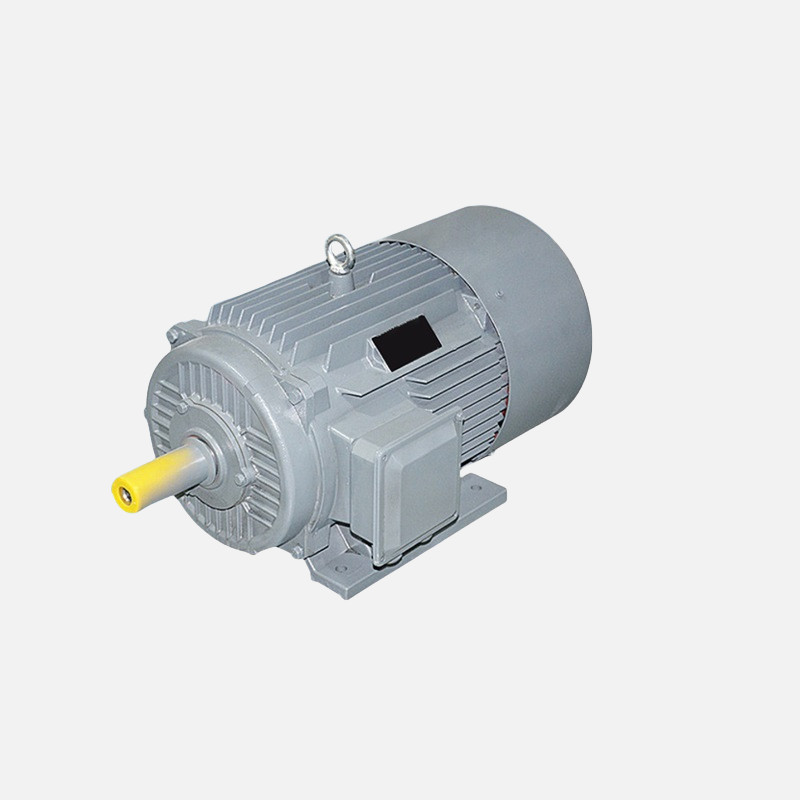

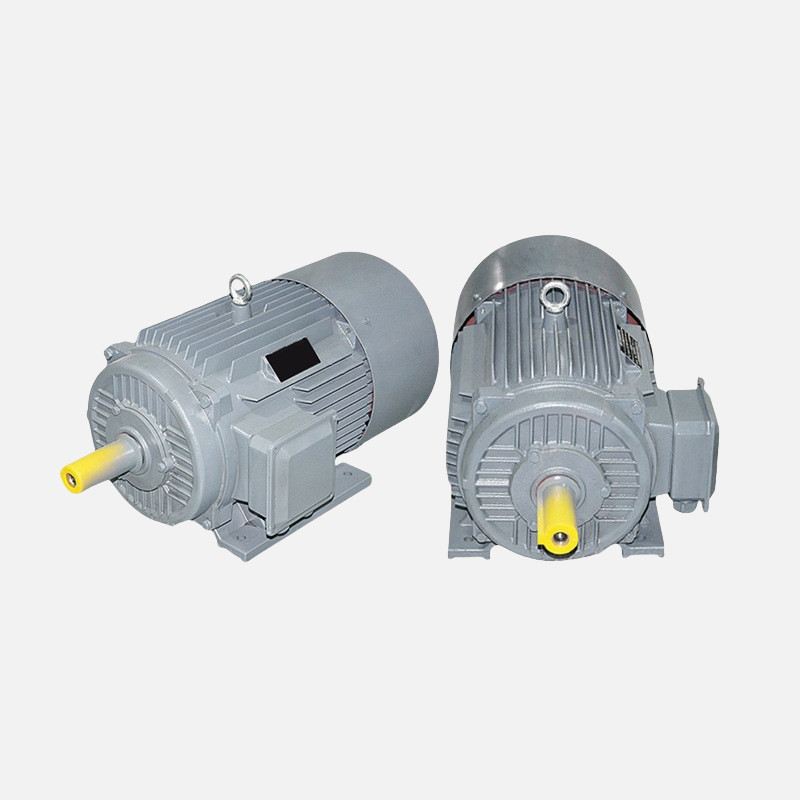

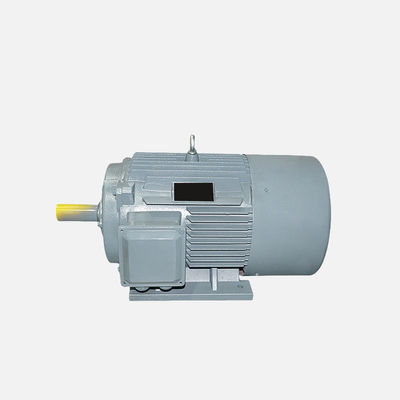

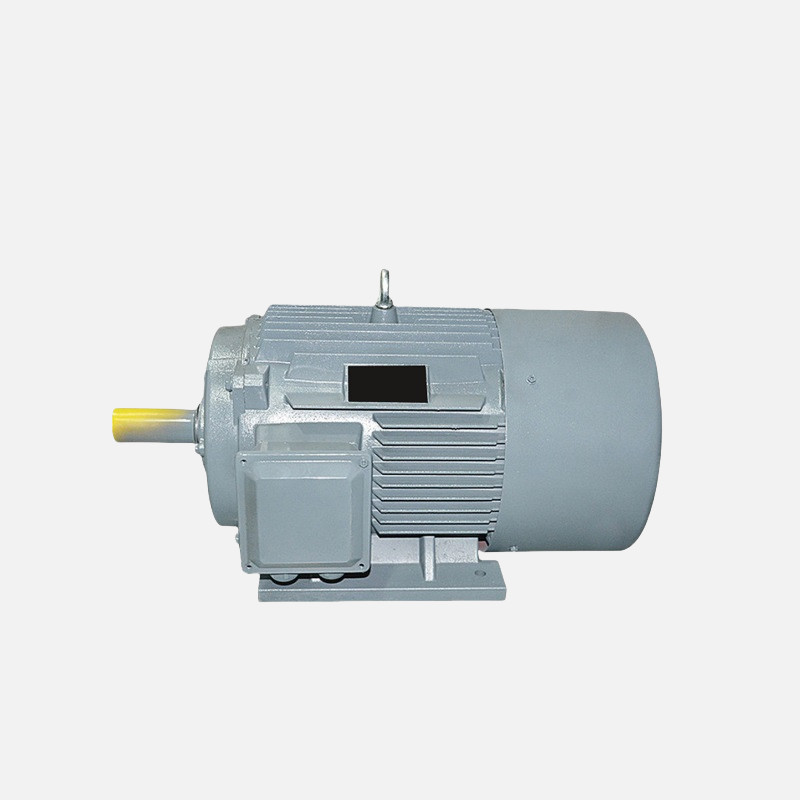

750r-3000r Rated Speed Permanent Magnet Synchronous Motor for Industrial Applications
Product Description:
This Permanent Magnet Synchronous Motor (PMSM) is a high-performance and energy-efficient electric wrench, designed for a wide range of industrial applications. It is a type of Permanent Magnet AC Motor, also known as a Multiphase Permanent Magnet Motor.
The PMSM operates on a continuous duty cycle, also known as S1 duty cycle, which is suitable for applications that require constant torque and speed. It is designed to work efficiently for a long period of time without overheating.
The PMSM has a wide range of rated speeds from 750 revolutions per minute (r/min) to 3000r/min, allowing for precise control and flexibility in various industrial processes. This makes it suitable for both high-speed and low-speed applications.
The main parts of the PMSM, such as the permanent magnets and stator winding, are imported from reputable manufacturers. This ensures the high quality and reliability of the motor, making it a durable and long-lasting product.
The PMSM is designed to operate at a high efficiency level of IE4, which is one of the highest efficiency levels for electric motors. This means that it consumes less energy and produces less heat, resulting in significant cost savings and a reduced carbon footprint.
The PMSM is categorized as an electric wrench, which is a type of power tool used for tightening or loosening bolts and nuts. Its high torque and precise control make it a valuable tool for various industrial and construction applications.
- High Efficiency: The PMSM operates at a high efficiency level of IE4, resulting in significant energy savings and cost reduction.
- Low Noise: The use of permanent magnets in the PMSM reduces the noise level, making it suitable for use in noise-sensitive environments.
- High Torque: The PMSM is designed to deliver high torque output, allowing for efficient and precise tightening or loosening of bolts and nuts.
- Precise Control: With a wide range of rated speeds, the PMSM offers precise control and flexibility in various industrial processes.
- Durable: The PMSM is made with high-quality, imported parts, making it a durable and long-lasting product.
- Energy Saving: The high efficiency of the PMSM results in significant energy savings, making it an environmentally-friendly choice.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Rate Output: 1.1~11KW
- Working System: S1
- Rated voltage: 380V Or Made To Order.
- Type: Permanent Magnet
- Speed Adjust: By VFD
- Multiphase Permanent Magnet Motor
- Internal Permanent Magnet Motor
- Brushless DC Electric Motor
Technical Parameters:
Type | Permanent Magnet Synchronous Motor |
---|---|
Dimensions | As Customers’ Requirements |
Main Parts | Imported |
Speed Adjust | By VFD |
Protection Grade | IP54/IP55 |
Insulation level | F |
Rated voltage | 380V Or Made To Order |
Cooling Type | IC01 |
Rated speed | 750r~3000r |
Category | Electric Wrenches |
Key Words | Magnetic Synchronous Motor, Internal Permanent Magnet Motor, PM Synchronous Motor |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
A Permanent Magnet Synchronous Motor, also known as PMSM or Synchronous Permanent Magnet Motor, is a type of electric motor that uses permanent magnets in the rotor to create a magnetic field. This type of motor is widely used in various industries due to its high efficiency, energy-saving capabilities, low noise, and long lifespan.
The HC JN-HCP-5 Permanent Magnet Synchronous Motor is suitable for a wide range of applications, including:
- Industrial Machinery: The high efficiency and low noise of the motor make it ideal for use in industrial machinery, such as pumps, compressors, fans, and conveyors.
- Electric Vehicles: The compact size and high power density of the motor make it suitable for use in electric vehicles, providing reliable and efficient propulsion.
- Home Appliances: The energy-saving capabilities of the motor make it suitable for use in home appliances, such as refrigerators, air conditioners, and washing machines.
- Power Generation: The motor can be used in power generation systems, such as wind turbines and hydro turbines, to convert mechanical energy into electrical energy.
- Robotics: The precise control and high torque capabilities of the motor make it suitable for use in robotics, providing smooth and accurate movements.
- High Efficiency: The HC JN-HCP-5 PMSM has an efficiency level of IE4, which means it can convert a higher percentage of electrical energy into mechanical energy, resulting in lower energy consumption and cost savings.
- Energy Saving: The use of permanent magnets in the rotor eliminates the need for power to create a magnetic field, making the motor more energy-efficient compared to other types of motors.
- Low Noise: The absence of brushes and commutators in the motor reduces the noise level, making it suitable for use in noise-sensitive environments.
- Long Lifespan: The use of high-quality materials and advanced manufacturing techniques ensures a long lifespan for the motor, making it a reliable and cost-effective choice.
- Wide Application: The motor can be used in various industries and applications, making it a versatile and efficient solution for different needs.
The HC JN-HCP-5 Permanent Magnet Synchronous Motor is a high-quality, efficient, and reliable product that can be used in a wide range of applications. Its advanced features, such as high efficiency, energy-saving capabilities, low noise, and long lifespan, make it a popular choice in various industries. With its brand name, certification, and various other attributes, the motor is a top choice for those looking for a powerful and efficient electric motor.
Customization:
- Brand Name: HC
- Model Number: JN-HCP-5
- Place of Origin: CHINA
- Certification: ISO9001 CCC CE
- Minimum Order Quantity: 50PCS
- Price: Negotiable
- Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
- Delivery Time: 25 Days
- Payment Terms: L/C,T/T
- Supply Ability: 30K PCS/Month
- Insulation level: F
- Protection Grade: IP54/IP55
- Rated speed: 750r~3000r
- Dimensions: As Customers’ Requirements
- Type: Permanent Magnet
With our Permanent Magnet Synchronous Motor, also known as Internal Permanent Magnet Motor or PM Synchronous Motor, you can expect high performance and efficiency for your industrial needs. We offer customization services for our customers to meet their specific requirements.
Our motor has a strong magnetic field and efficient synchronous operation, making it suitable for various applications. It has been certified with ISO9001, CCC, and CE, ensuring its quality and reliability.
We have a minimum order quantity of 50PCS, and the price is negotiable depending on the customization needs of our customers. We offer different packaging options, including By Sea Pallet, By Air Carton, and By Express Packaging, to ensure safe delivery of our products.
Our delivery time is 25 days, and we accept payment through L/C and T/T. With a supply ability of 30K PCS per month, we can meet the demands of our customers efficiently.
Our Permanent Magnet Synchronous Motor has an insulation level of F and protection grade of IP54/IP55, making it suitable for various environmental conditions. The rated speed can range from 750r to 3000r, and we can customize the dimensions according to our customers’ requirements.
Choose HC JN-HCP-5 Permanent Magnet Synchronous Motor for a reliable and efficient solution for your industrial needs. Contact us now for our customization services!
Packing and Shipping:
The Permanent Magnet Synchronous Motor will be carefully packaged in a sturdy cardboard box to ensure its safe transport. The motor will be wrapped in protective materials such as bubble wrap or foam to prevent any damage during shipping.
Any additional accessories or components that come with the motor will also be securely packaged in the same box.
The motor will be shipped via a reliable and trusted shipping company to ensure timely and safe delivery. The shipping method will be determined based on the customer's location and preferences.
Customers can also choose to have the motor shipped using their own preferred shipping method, with the necessary arrangements and fees to be discussed and agreed upon.
Once the motor has been shipped, customers will receive a tracking number to monitor the delivery status of their product. Any concerns or issues with the shipping process can be addressed by contacting our customer service team.
We strive to ensure that our customers receive their Permanent Magnet Synchronous Motor in perfect condition and in a timely manner. Therefore, we take great care in packaging and shipping our product to meet our customers' expectations.
FAQ:
- Q: What is the brand of this product?
- A: The brand name of this product is HC.
- Q: What is the model number of this product?
- A: The model number of this product is JN-HCP-5.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: Does this product have any certifications?
- A: Yes, this product is certified with ISO9001, CCC, and CE.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 50PCS.
- Q: Is the price negotiable for this product?
- A: Yes, the price for this product is negotiable depending on the quantity ordered.
- Q: How is this product packaged for delivery?
- A: This product is packaged either by sea pallet, air carton, or express packaging.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is 25 days.
- Q: What are the accepted payment terms for this product?
- A: The accepted payment terms for this product are L/C and T/T.
- Q: What is the supply ability of this product?
- A: The supply ability for this product is 30,000 PCS per month.
