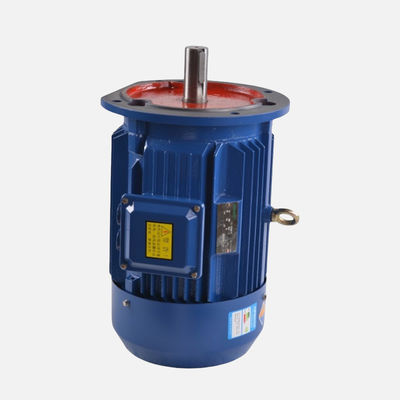

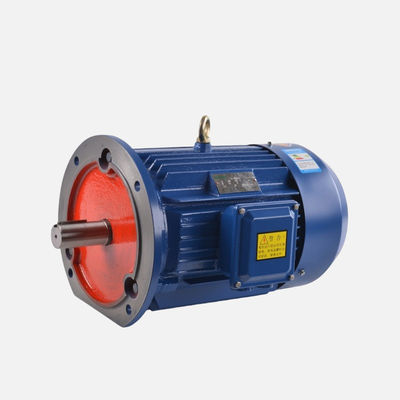

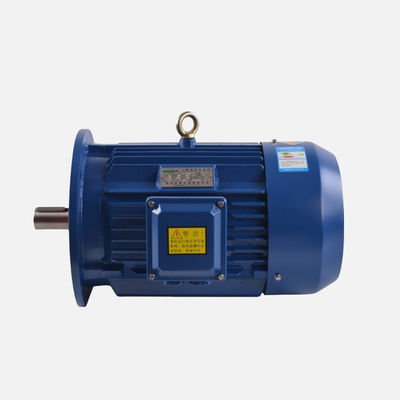

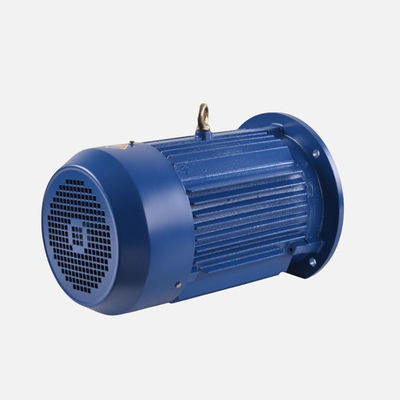

Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System

  • Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System
  • Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System
  • Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System
  • Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-17
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 380V Or Made To Order. Speed Adjust By VFD
Cooling Type IC01 Dimensions As Customers’ Requirements
Phase Three-phase, Three Phase Insulation Level F
Rated Speed 750r~3000r Main Parts Imported
Highlight

Three Phase magnet motor generator

,

magnet motor generator S1 System

,

3000r pmsm motor for ev
Leave a Message
Product Description

Imported Main Parts Permanent Magnet Synchronous Motor for Three Phase S1 Working System

Product Description:

Product Overview: Permanent Magnet Synchronous Motor

The Permanent Magnet Synchronous Motor is a highly advanced and efficient motor designed for various industrial and commercial applications. This motor is also known as a Blushless AC Synchronous Motor, as it uses permanent magnets in the rotor to create a synchronous rotation with the stator. With its advanced design and cutting-edge technology, this motor offers superior performance and reliability, making it the preferred choice for many industries.

Key Features:
  • Cooling Type: The Permanent Magnet Synchronous Motor comes with an IC01 cooling type, which ensures efficient heat dissipation and prevents overheating. This makes the motor suitable for continuous operation even in harsh environments.
  • High Efficiency: This motor is designed to provide high efficiency, resulting in significant energy savings. With its advanced design and precise engineering, it can operate at an optimum level, reducing energy consumption and increasing productivity.
  • Low Noise: The Permanent Magnet Synchronous Motor is designed to operate quietly, producing low noise levels. This makes it suitable for applications where noise reduction is essential, such as in hospitals, schools, and residential areas.
  • Compact Size: The motor has a compact and lightweight design, making it easy to install and suitable for applications where space is limited. Its compact size also makes it suitable for mobile and portable equipment.
  • Reliable Performance: The Permanent Magnet Synchronous Motor is built with high-quality materials and components, ensuring its reliable performance even in demanding conditions. It is designed to withstand high temperatures, voltage fluctuations, and other challenging conditions, providing long-lasting and trouble-free operation.
  • Wide Speed Range: This motor offers a wide speed range, making it suitable for various applications. It can operate at a rated speed of 750r~3000r, making it versatile and adaptable to different operating conditions.
  • Phase: The motor operates on a three-phase power supply, providing stable and efficient performance. It also has a three-phase stator arrangement, ensuring smooth and balanced operation.
  • Working System: The Permanent Magnet Synchronous Motor has an S1 working system, which means it can operate continuously at a constant load without overheating. This makes it suitable for applications where continuous operation is required.
  • Customizable Dimensions: The motor can be customized to meet specific requirements and dimensions as per the customer's needs. This makes it suitable for a wide range of applications and industries.
  • Energy-saving and Eco-friendly: With its high efficiency and low power consumption, the motor is energy-saving and eco-friendly. It helps reduce carbon footprint and contributes to a greener environment.
  • Durable: The Permanent Magnet Synchronous Motor is designed to withstand harsh operating conditions, making it highly durable. Its sturdy construction and high-quality components ensure a long lifespan and minimal maintenance.
  • Versatile: This motor is highly versatile and can be used in various applications, including industrial machinery, pumps, compressors, fans, and many others. Its compact size and customizable dimensions make it suitable for a wide range of industries and equipment.


Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Phase: Three-phase, Three Phase
  • Type: Permanent Magnet
  • Insulation level: F
  • Protection Grade: IP54/IP55
  • Rate Output: 1.1~11KW
  • External Rotor Motor
  • Internal Permanent Magnet Motor
  • Synchronous Permanent Magnet Motor


Technical Parameters:

Technical Parameters Value
Efficiency Level IE4
Main Parts Imported
Category Electric Wrenches
Rated Speed 750r~3000r
Cooling Type IC01
Insulation Level F
Phase Three-phase, Three Phase
Dimensions As Customers’ Requirements
Protection Grade IP54/IP55
Type Permanent Magnet

Key Features:

  • Efficient IE4 level for energy-saving performance
  • High-quality imported main parts for durability and reliability
  • Suitable for electric wrenches in various applications
  • Rated speed of 750r~3000r for optimal performance
  • Efficient cooling system with IC01 design
  • Insulation level of F for safe operation
  • Three-phase motor for stable and powerful operation
  • Customizable dimensions to meet customers' requirements
  • IP54/IP55 protection grade for protection against dust and water
  • Permanent magnet design for efficient and smooth operation

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

Imported Main Parts Permanent Magnet Synchronous Motor For Three Phase S1 Working System 0



Applications:

Permanent Magnet Synchronous Motor - HC JN-HCP-5

HC JN-HCP-5 Permanent Magnet Synchronous Motor is a high quality, energy efficient motor designed for various industrial applications. With its advanced technology and reliable performance, it has gained ISO9001, CCC, and CE certification, ensuring its quality and safety.

The HC JN-HCP-5 Permanent Magnet Synchronous Motor boasts the following attributes:

  • Brand Name: HC
  • Model Number: JN-HCP-5
  • Place of Origin: CHINA
  • Certification: ISO9001 CCC CE
  • Minimum Order Quantity: 50PCS
  • Price: Negotiable
  • Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
  • Delivery Time: 25 Days
  • Payment Terms: L/C,T/T
  • Supply Ability: 30K PCS/Month
  • Rate Output: 1.1~11KW
  • Rated voltage: 380V Or Made To Order.
  • Working System: S1
  • Rated speed: 750r~3000r
  • Insulation level: F
Applications and Scenarios

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is suitable for a wide range of industrial applications, including:

  • Machine tools
  • Compressors
  • Pumps
  • Fans
  • Conveyors
  • Textile machinery
  • Printing machinery
  • And more

It can also be used in various scenarios such as:

  • Manufacturing plants
  • Power plants
  • Chemical plants
  • Mining operations
  • And more
Advanced Technology

The HC JN-HCP-5 Permanent Magnet Synchronous Motor utilizes advanced technology to provide high efficiency and reliable performance. Its brushless AC synchronous motor design eliminates the need for brushes, reducing wear and maintenance costs. The PM Synchronous Motor design ensures smooth and precise operation, making it ideal for applications that require constant speed and torque.

Energy Efficient

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is designed to be energy efficient, helping businesses reduce their energy consumption and costs. With its low friction and high efficiency, it can help companies achieve their sustainability goals while also improving their bottom line.

Customizable

The HC JN-HCP-5 Permanent Magnet Synchronous Motor can be customized to meet specific voltage and speed requirements, making it suitable for a wide range of applications. This flexibility also allows for easy integration into existing systems, reducing downtime and installation costs.

Get Your HC JN-HCP-5 Permanent Magnet Synchronous Motor Today

With its exceptional quality, advanced technology, and customizable options, the HC JN-HCP-5 Permanent Magnet Synchronous Motor is the perfect choice for all your industrial motor needs. Contact us today to place your order and experience the benefits of this top-of-the-line motor.

www.hc-motor.com



Customization:

Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C,T/T

Supply Ability: 30K PCS/Month

Product Description:

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is a highly efficient and low noise motor that is suitable for various applications. With its brushless DC electric motor and blushless AC synchronous motor design, it offers superior performance and reliability. The internal permanent magnet motor allows for better control and precision in operation.

Product Attributes:
  • Working System: S1
  • Category: Electric Wrenches
  • Main Parts: Imported
  • Efficiency Level: IE4
  • Phase: Three-phase, Three Phase


Packing and Shipping:

Packaging and Shipping for Permanent Magnet Synchronous Motor

The Permanent Magnet Synchronous Motor is carefully packaged to ensure safe delivery to our customers. Each motor is individually wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transportation. The box is then sealed and labeled with the product name, model number, and any other necessary information.

For international shipments, the motor is also placed in a wooden crate for added protection. The crate is secured with straps and labeled with all the required shipping information.

We work with trusted and reliable shipping carriers to ensure timely and efficient delivery of our products. Customers can choose their preferred shipping method, and we provide tracking information for every shipment.

Our packaging materials are environmentally friendly and can be recycled. We take great care to minimize our impact on the environment while ensuring the safety of our products during shipping.

We also offer customization options for packaging, such as adding customer logos or labeling for bulk orders. Please contact our customer service team for more information.

Thank you for choosing our Permanent Magnet Synchronous Motor. We strive to provide the best quality products and services for our customers, and we are committed to ensuring safe and secure packaging and shipping for every order.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is HC.
  • Q: What is the model number of this product?
  • A: The model number of this product is JN-HCP-5.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What certifications does this product have?
  • A: This product has ISO9001, CCC, and CE certifications.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 50PCS.
  • Q: Is the price negotiable?
  • A: Yes, the price for this product is negotiable.
  • Q: How is this product packaged?
  • A: This product can be packaged by sea pallet, air carton, or express packaging.
  • Q: How long is the delivery time for this product?
  • A: The delivery time for this product is 25 days.
  • Q: What are the payment terms for this product?
  • A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 30,000 PCS per month.




Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
