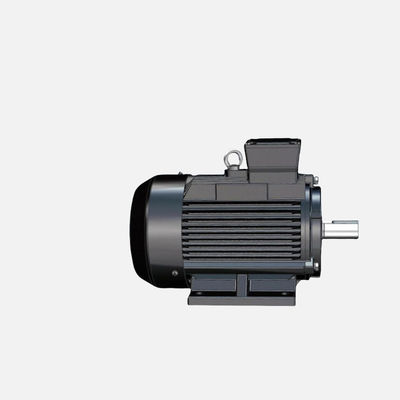

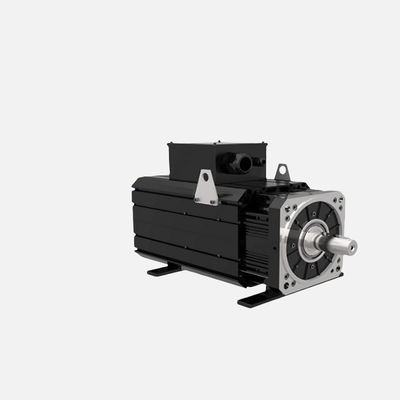

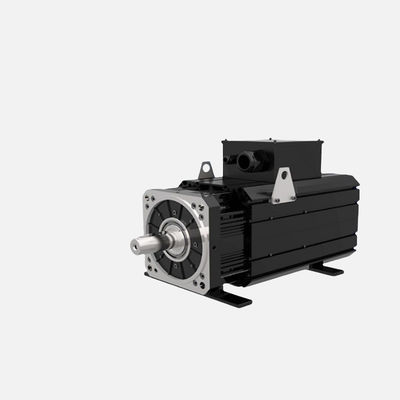

IP54/IP55 Blushless AC Synchronous Motor With Speed Control Adjustment Via VFD 1.1~11KW

  • IP54/IP55 Blushless AC Synchronous Motor With Speed Control Adjustment Via VFD 1.1~11KW
  • IP54/IP55 Blushless AC Synchronous Motor With Speed Control Adjustment Via VFD 1.1~11KW
  • IP54/IP55 Blushless AC Synchronous Motor With Speed Control Adjustment Via VFD 1.1~11KW
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-18
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Speed 750r~3000r Type Permanent Magnet
Rate Output 1.1~11KW Cooling Type IC01
Working System S1 Efficiency Level IE4
Protection Grade IP54/IP55 Speed Adjust By VFD
Highlight

3000r Permanent Magnet Synchronous Motor

,

VFD Permanent Magnet Synchronous Motor

,

750r permanent magnet ac motor
Leave a Message
Product Description

IP54/IP55 Blushless AC Synchronous Motor with Speed Control Adjustment via VFD

Product Description:

Permanent Magnet Synchronous Motor

The Permanent Magnet Synchronous Motor (PMSM) is a type of brushless DC electric motor that uses permanent magnets attached to the rotor to create a magnetic field. This type of motor is known for its high efficiency and power density, making it a popular choice in various industries.

Product Attributes
  • Insulation Level: F
  • Efficiency Level: IE4
  • Protection Grade: IP54/IP55
  • Category: Electric Wrenches
  • Cooling Type: IC01

The PMSM is classified as a multiphase permanent magnet motor, meaning it has multiple phases, or windings, on the stator. This allows for a more efficient and smoother operation compared to single-phase motors.

Key Features

The Permanent Magnet Synchronous Motor boasts several key features that make it a top choice for various applications:

  • High Efficiency: The PMSM has a high efficiency level of IE4, meaning it can convert a large percentage of electrical energy into mechanical energy with minimal losses.
  • High Power Density: Due to its compact design and use of permanent magnets, the PMSM has a high power density, meaning it can produce a large amount of torque in a smaller frame size.
  • Smooth and Precise Operation: The use of permanent magnets and multiphase windings allows the PMSM to operate smoothly and precisely, making it ideal for precise control applications.
  • Low Maintenance: Since the PMSM does not use brushes, there is less wear and tear on the motor, resulting in lower maintenance costs and longer lifespan.
Applications

The Permanent Magnet Synchronous Motor is suitable for a wide range of applications, including:

  • Electric vehicles
  • Industrial machinery
  • Robotics
  • Renewable energy systems
  • Medical equipment
  • And more

With its high efficiency, power density, and smooth operation, the PMSM is a versatile motor that can be used in various industries and applications.

Conclusion

The Permanent Magnet Synchronous Motor is a highly efficient and powerful motor that offers precise operation and low maintenance. Its compact design and use of permanent magnets make it an excellent choice for various applications, making it a valuable asset in the world of electric motors.



Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Category: Electric Wrenches
  • Type: Permanent Magnet
  • Speed Adjust: By VFD
  • Insulation level: F
  • Rated voltage: 380V Or Made To Order
  • Permanent Magnet AC Motor
  • Multiphase Permanent Magnet Motor
  • Brushless DC Electric Motor


Technical Parameters:

Product Name Permanent Magnet Synchronous Motor
Model Number PMSM
Type Magnetic Synchronous Motor, Internal Permanent Magnet Motor
Rated Speed 750r~3000r
Rated Voltage 380V or Made To Order
Rated Output 1.1~11KW
Speed Adjust By VFD
Dimensions As Customers' Requirements
Phase Three-phase, Three Phase
Cooling Type IC01
Category Electric Wrenches
Insulation Level F
Protection Grade IP54/IP55

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

IP54/IP55 Blushless AC Synchronous Motor With Speed Control Adjustment Via VFD 1.1~11KW 0

Applications:

HC Permanent Magnet Synchronous Motor

HC Permanent Magnet Synchronous Motor, also known as PM Synchronous Motor, is a type of Permanent Magnet AC Motor with high efficiency and energy saving features. It is widely used in various industries and applications due to its superior performance and reliable quality.

Brand Name: HC

HC Permanent Magnet Synchronous Motor is manufactured and sold by HC, a leading company in the field of motor production. HC is a trusted brand with a good reputation for providing high-quality products and excellent services.

Model Number: JN-HCP-5

The model number of HC Permanent Magnet Synchronous Motor is JN-HCP-5. This model is designed for heavy-duty applications and is suitable for various industrial environments.

Place of Origin: CHINA

HC Permanent Magnet Synchronous Motor is proudly made in China. With advanced technology and strict quality control, HC ensures that every motor meets international standards and customer requirements.

Certification: ISO9001 CCC CE

HC Permanent Magnet Synchronous Motor has obtained ISO9001, CCC and CE certifications, which demonstrate its compliance with international standards and regulations. This ensures the quality and safety of the motor.

Minimum Order Quantity: 50PCS

The minimum order quantity for HC Permanent Magnet Synchronous Motor is 50PCS. This allows customers to purchase the motor in small quantities for their specific needs and reduces the initial investment.

Price: Negotiable

The price of HC Permanent Magnet Synchronous Motor is negotiable. HC offers competitive prices to meet different budget requirements of customers.

Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging

HC Permanent Magnet Synchronous Motor can be packaged in various ways, such as sea pallets, air cartons, or express packaging. This allows for flexible and convenient transportation options for customers.

Delivery Time: 25 Days

The delivery time for HC Permanent Magnet Synchronous Motor is 25 days. With efficient production and management, HC ensures timely delivery to meet customers' project schedules.

Payment Terms: L/C,T/T

HC accepts various payment terms, including L/C and T/T, to provide customers with flexible and convenient payment options.

Supply Ability: 30K PCS/Month

With advanced production technology and facilities, HC has a strong supply ability of 30K PCS per month. This enables HC to meet the demands of customers with large orders in a timely manner.

Phase: Three-phase, Three Phase

HC Permanent Magnet Synchronous Motor has a three-phase design, providing stable and efficient power output for various applications.

Speed Adjust: By VFD

The speed of HC Permanent Magnet Synchronous Motor can be easily adjusted by using a VFD (Variable Frequency Drive). This allows for precise control of the motor speed, making it suitable for different applications.

Main Parts: Imported

HC Permanent Magnet Synchronous Motor adopts high-quality main parts that are imported from trusted suppliers. This ensures the reliability and durability of the motor.

Cooling Type: IC01

HC Permanent Magnet Synchronous Motor has an IC01 cooling type, which provides efficient heat dissipation and ensures the motor operates at a safe temperature.

Efficiency Level: IE4

HC Permanent Magnet Synchronous Motor has an efficiency level of IE4, which is the highest level in the current motor efficiency standards. This means the motor has excellent energy-saving features and can significantly reduce operation costs for customers.

Application Fields and Scenarios

HC Permanent Magnet Synchronous Motor can be widely used in various fields and scenarios, including:

  • Industrial machinery and equipment
  • Electric vehicles
  • Compressors
  • Pumps and fans
  • Automation systems
  • Renewable energy systems

In these applications, HC Permanent Magnet Synchronous Motor can provide efficient and reliable power output, contributing to the smooth operation of various processes and systems.

Overall, HC Permanent Magnet Synchronous Motor is a high-quality, efficient, and energy-saving motor that offers great value for customers. With its advanced technology, reliable quality, and wide range of applications, it is an ideal choice for various industries and scenarios.



Customization:

Customized Service for Permanent Magnet Synchronous Motor - HC
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Phase: Three-phase, Three Phase
Dimensions: As Customers’ Requirements
Main Parts: Imported
Insulation level: F
Working System: S1

At HC, we understand that every client has unique needs and requirements. That's why we offer customized services for our Permanent Magnet Synchronous Motor - JN-HCP-5. With our high quality and reliable performance, we have obtained ISO9001, CCC, and CE certifications for our product.

Our motor is a three-phase external rotor motor, equipped with imported parts for better efficiency and durability. It also has an F class insulation level for added safety. To cater to your specific needs, we offer flexible packaging options such as By Sea Pallet, By Air Carton, and By Express Packaging.

We value your time and strive to deliver our product in a timely manner, with a delivery time of 25 days. We also offer flexible payment options such as L/C and T/T. With a strong supply capacity of 30K PCS per month, we ensure that you will receive your order on time.

Choose HC for a customized Permanent Magnet Synchronous Motor that meets your exact requirements. Contact us now for more information and to place your order.



Packing and Shipping:

Packaging:

The Permanent Magnet Synchronous Motor is carefully packaged to ensure safe and secure delivery to our customers. Each motor is individually wrapped in protective materials and placed in a sturdy cardboard box. The box is then sealed and labelled with the product's information and handling instructions.

For larger orders, the motors are packed in wooden crates to provide extra protection during transportation.

We also offer customized packaging options to meet the specific needs of our customers.

Shipping:

We offer various shipping options to accommodate our customers' preferences and delivery timeline. Our standard shipping method is by sea, but we also offer air and land transportation for faster delivery.

All shipments are carefully tracked to ensure timely delivery and we provide our customers with the tracking information for their orders.

For international shipments, we handle all necessary customs procedures and documentation to ensure a smooth delivery process.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is HC.
  • Q: What is the model number of this product?
  • A: The model number of this product is JN-HCP-5.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What certifications does this product have?
  • A: This product has ISO9001, CCC, and CE certifications.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 50PCS.
  • Q: Is the price negotiable?
  • A: Yes, the price for this product is negotiable.
  • Q: How is this product packaged?
  • A: This product can be packaged by sea pallet, air carton, or express packaging.
  • Q: How long is the delivery time for this product?
  • A: The delivery time for this product is 25 days.
  • Q: What are the payment terms for this product?
  • A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 30,000 PCS per month.




Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
