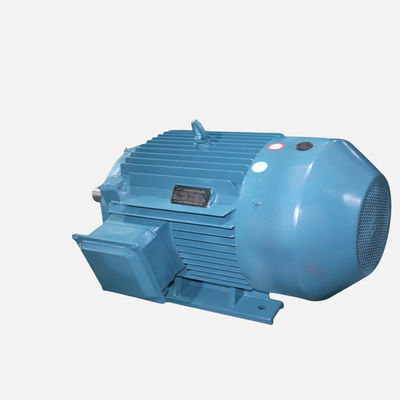

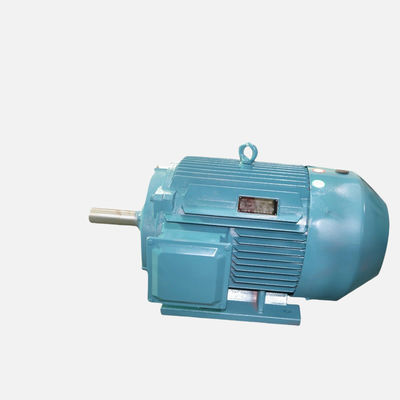

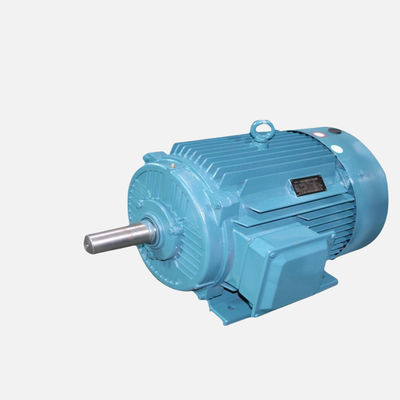

Working System S1 Permanent Magnet Synchronous Motor with Protection Grade IP54/IP55 1.1~11KW

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xEfficiency Level | IE4 | Cooling Type | IC01 |
---|---|---|---|
Speed Adjust | By VFD | Category | Electric Wrenches |
Rated Voltage | 380V Or Made To Order. | Dimensions | As Customers’ Requirements |
Rate Output | 1.1~11KW | Phase | Three-phase, Three Phase |
Highlight | S1 magnet synchronous motor,magnet synchronous motor IP54,IP55 permanent magnet stepper motor |
Working System S1 Permanent Magnet Synchronous Motor with Protection Grade IP54/IP55 1.1~11KW
Product Description:
This product is a type of external rotor motor, which has been widely used in various industries due to its high efficiency, low noise, and compact structure. With its imported main parts and multiphase permanent magnet technology, it is a reliable and advanced solution for various machinery and equipment.
- Type: Permanent Magnet
- Rated Speed: 750r~3000r
- Rated Voltage: 380V Or Made To Order
- Protection Grade: IP54/IP55
- Energy Efficiency: The permanent magnet technology used in this motor ensures high energy efficiency, which can save electricity costs for users.
- Low Noise: The external rotor design and advanced motor control technology greatly reduce the noise level, creating a comfortable working environment.
- High Torque: With its synchronous permanent magnet design, this motor can provide high torque output, making it suitable for heavy-duty applications.
- Compact Structure: The compact and lightweight structure of this motor saves space and makes it easy to install in various equipment and machinery.
Overall, the Permanent Magnet Synchronous Motor is a reliable and efficient solution for a wide range of industrial and commercial applications. Its advanced technology and high-quality components make it a top choice for machinery and equipment manufacturers worldwide.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Speed Adjust: By VFD
- Main Parts: Imported
- Rate Output: 1.1~11KW
- Type: Permanent Magnet
- Category: Electric Wrenches
- Key Features:
- Multiphase Permanent Magnet Motor
- Brushless DC Electric Motor
- Permanent Magnet AC Motor
- High efficiency and energy saving
- Smooth and stable operation
- Compact and lightweight design
- High torque and power output
- Easy speed adjustment with VFD
- Imported main parts for superior quality and durability
Technical Parameters:
Category | Electric Wrenches |
---|---|
Rated speed | 750r~3000r |
Rated voltage | 380V Or Made To Order |
Efficiency Level | IE4 |
Dimensions | As Customers’ Requirements |
Type | Permanent Magnet |
Cooling Type | IC01 |
Phase | Three-phase, Three Phase |
Main Parts | Imported |
Working System | S1 |
Key Features | Blushless AC Synchronous Motor, PM Synchronous Motor, Multiphase Permanent Magnet Motor |
---|
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
HC JN-HCP-5 Permanent Magnet Synchronous Motor, also known as PMSM or Brushless DC Electric Motor, is a high-performance motor designed for industrial, commercial, and agricultural applications. It is a type of synchronous motor that uses permanent magnets to generate a magnetic field, resulting in high efficiency and energy savings.
Equipped with advanced technology and imported main parts, HC JN-HCP-5 is a reliable and durable motor with a long lifespan and easy maintenance. Its efficiency level reaches IE4, making it one of the most energy-efficient motors in the market.
- Energy-saving: With its permanent magnet design, HC JN-HCP-5 can achieve higher efficiency and save up to 30% energy compared to traditional motors.
- High Efficiency: The motor is designed with advanced technology and imported main parts, ensuring a high level of efficiency and reliable performance.
- Low Noise: HC JN-HCP-5 operates smoothly and quietly, providing a comfortable working environment.
- Long Lifespan: The use of high-quality materials and advanced technology results in a long lifespan of the motor, reducing maintenance and replacement costs.
- Easy Maintenance: The simple and compact design of HC JN-HCP-5 makes it easy to maintain and repair.
HC JN-HCP-5 Permanent Magnet Synchronous Motor is suitable for various industrial, commercial, and agricultural applications, including but not limited to:
- HVAC Systems: The motor is widely used in heating, ventilation, and air conditioning systems, providing energy-saving and efficient operation.
- Pumps: HC JN-HCP-5 is an ideal choice for water pumps, sewage pumps, and other types of pumps, ensuring high efficiency and low noise operation.
- Fans: The motor can be applied in various types of fans, such as exhaust fans, ventilation fans, and cooling fans, providing smooth and quiet operation.
- Conveyors: HC JN-HCP-5 is suitable for different types of conveyors, including belt conveyors, roller conveyors, and chain conveyors, ensuring efficient and reliable operation.
- Elevators: With its advanced design and reliable performance, the motor is widely used in elevators, providing smooth and safe operation.
- Machinery: HC JN-HCP-5 is suitable for various types of machinery, such as packaging machinery, textile machinery, and printing machinery, providing energy-saving and efficient operation.
- Automation Systems: The motor can be integrated into automation systems, providing precise and efficient power transmission.
Brand Name | HC |
---|---|
Model Number | JN-HCP-5 |
Place of Origin | China |
Certification | ISO9001 CCC CE |
Minimum Order Quantity | 50PCS |
Price | Negotiable |
Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
Delivery Time | 25 Days |
Payment Terms | L/C,T/T |
Supply Ability | 30K PCS/Month |
Working System | S1 |
Speed Adjust | By VFD |
Main Parts | Imported |
Efficiency Level | IE4 |
Rate Output | 1.1~11KW |
Customization:
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Rated Voltage: 380V or Made to Order
Phase: Three-phase, Three Phase
Cooling Type: IC01
Working System: S1
Protection Grade: IP54/IP55
Our Permanent Magnet Synchronous Motor, also known as Internal Permanent Magnet Motor, is highly efficient and reliable. With our customized service, we can tailor this motor to meet your specific needs and requirements.
Our Permanent Magnet AC Motor offers superior performance and energy savings, making it a popular choice for various industrial and commercial applications.
Choose HC for your Permanent Magnet AC Motor needs and experience our top-notch quality and excellent service.
Packing and Shipping:
Thank you for choosing our Permanent Magnet Synchronous Motor. Before we ship the product to you, we ensure that it is properly packaged to prevent any damage during transportation. Our packaging process includes:
- Wrapping the motor in a protective material to prevent scratches and other physical damage.
- Placing the motor in a sturdy and secure box to prevent any movement or shifting during shipping.
- Adding additional padding or cushioning materials to further protect the motor.
- Sealing the box with strong packing tape to ensure its safety during transit.
We also take great care in labeling the package with all necessary information, including the product name, model number, and shipping address. This helps to ensure that your motor arrives at the correct destination in a timely manner.
For shipping, we offer various options to meet your needs, including express, standard, and economy shipping. Our shipping partners are reliable and experienced, ensuring that your motor arrives safely and on schedule.
Upon receiving your motor, please carefully check the packaging for any signs of damage. If there are any concerns, please contact us immediately so we can resolve the issue.
Thank you for choosing our Permanent Magnet Synchronous Motor. We are confident that you will be satisfied with its quality and performance.
FAQ:
- Q1: What is the brand name of the product?
- A1: The brand name is HC.
- Q2: What is the model number of the product?
- A2: The model number is JN-HCP-5.
- Q3: Where is this product manufactured?
- A3: This product is manufactured in China.
- Q4: What certifications does this product have?
- A4: This product is certified with ISO9001, CCC, and CE.
- Q5: What is the minimum order quantity for this product?
- A5: The minimum order quantity is 50PCS.
