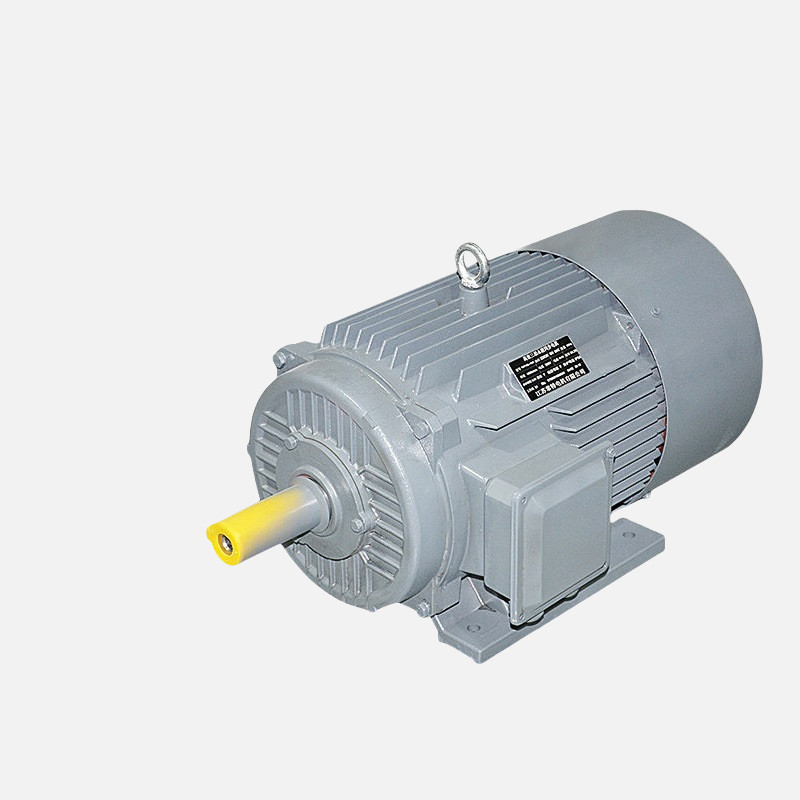

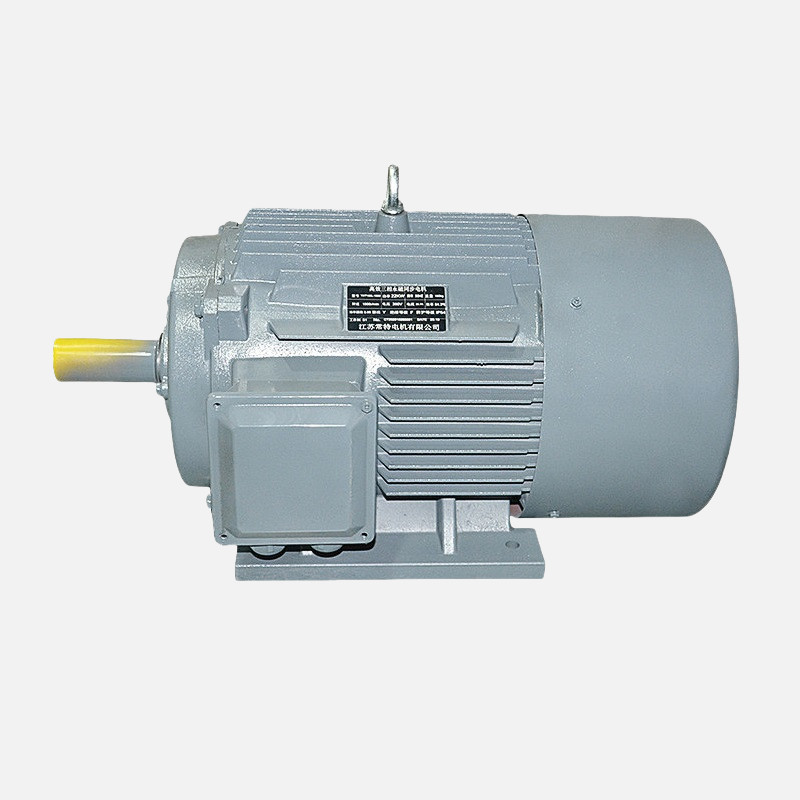

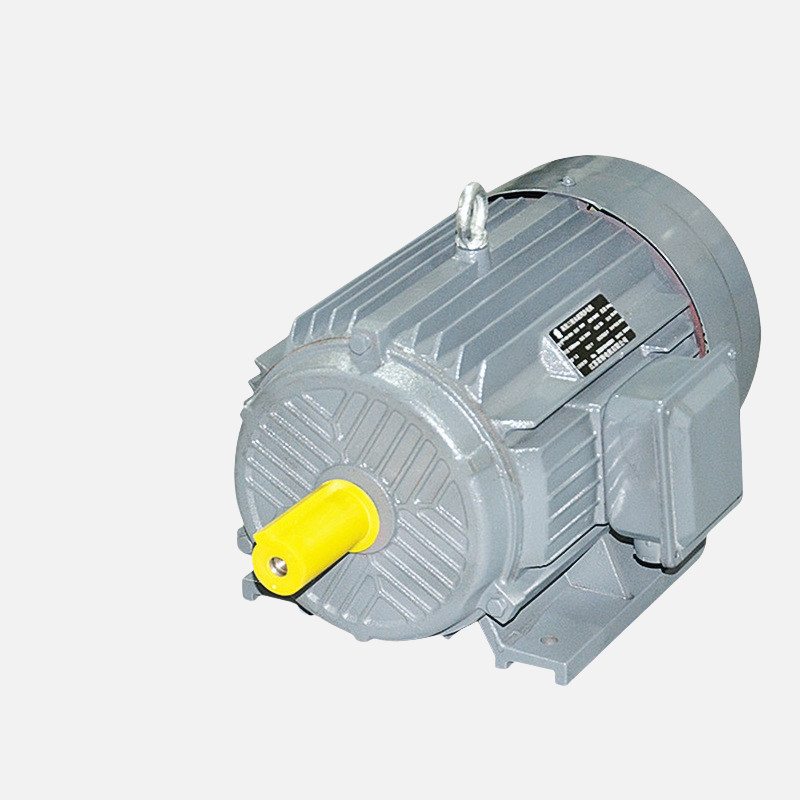

F Insulation Level Permanent Magnet Synchronous Motor for Energ Saving Solutions

  • F Insulation Level Permanent Magnet Synchronous Motor for Energ Saving Solutions
  • F Insulation Level Permanent Magnet Synchronous Motor for Energ Saving Solutions
  • F Insulation Level Permanent Magnet Synchronous Motor for Energ Saving Solutions
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-15
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency Level IE4 Rated Speed 750r~3000r
Phase Three-phase, Three Phase Working System S1
Dimensions As Customers’ Requirements Type Permanent Magnet
Rate Output 1.1~11KW Rated Voltage 380V Or Made To Order.
Highlight

F Insulation pm motor

,

IE4 pm motor

,

Energ Saving 3 phase permanent magnet motor
Leave a Message
Product Description

F Insulation Level Permanent Magnet Synchronous Motor for Energy-Saving Solutions

Product Description:

Permanent Magnet Synchronous Motor

The Permanent Magnet Synchronous Motor is a high-performance motor designed for various industrial applications. It is a type of Blushless AC Synchronous Motor that utilizes permanent magnets to produce synchronous rotation. This motor is also known as a Permanent Magnet AC Motor or a Synchronous Permanent Magnet Motor.

Product Overview:

The Permanent Magnet Synchronous Motor is a highly efficient and reliable motor that offers precise speed control and high torque output. It is designed to operate at a wide range of speeds, making it suitable for various applications.

Product Attributes:
  • Rated speed: The motor is available in a range of speeds from 750r to 3000r, providing flexibility for different operating conditions.
  • Cooling Type: The motor is designed with an IC01 cooling system, which ensures efficient heat dissipation and prolonged motor life.
  • Speed Adjust: The motor can be easily controlled and adjusted by a Variable Frequency Drive (VFD), allowing for precise speed regulation.
  • Working System: The motor is designed for continuous duty operation (S1), making it suitable for applications that require constant motor operation.
  • Dimensions: The motor can be customized as per customers' requirements, ensuring a perfect fit for various industrial applications.
Applications:

The Permanent Magnet Synchronous Motor is widely used in various industries, including:

  • Electric vehicles
  • Industrial pumps and fans
  • Conveyor systems
  • Machine tools
  • Robotics
  • And more
Conclusion:

The Permanent Magnet Synchronous Motor is a highly efficient and versatile motor that offers precise speed control, high torque output, and long-lasting performance. Its advanced design and customizable features make it an ideal choice for various industrial applications.



Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Insulation level: F
  • Working System: S1
  • Cooling Type: IC01
  • Speed Adjust: By VFD
  • Main Parts: Imported
  • Internal Permanent Magnet Motor
  • PM Synchronous Motor
  • PMSM


Technical Parameters:

Category Electric Wrenches
Cooling Type IC01
Insulation Level F
Phase Three-phase, Three Phase
Dimensions As Customers' Requirements
Efficiency Level IE4
Type Permanent Magnet
Main Parts Imported
Protection Grade IP54/IP55
Rate Output 1.1~11KW
Category Multiphase Permanent Magnet Motor
Cooling Type IC01
Insulation Level F
Phase Three-phase, Three Phase
Dimensions As Customers' Requirements
Efficiency Level IE4
Type External Rotor Motor, Brushless AC Synchronous Motor
Main Parts Imported
Protection Grade IP54/IP55
Rate Output 1.1~11KW

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300





F Insulation Level Permanent Magnet Synchronous Motor for Energ Saving Solutions 0



Applications:

Permanent Magnet Synchronous Motor - HC Brand
Synchronous Permanent Magnet Motor for Industrial Use

HC Brand's Permanent Magnet Synchronous Motor is a high-efficiency and reliable product designed for industrial use. With its low noise and energy-saving features, it is suitable for a wide range of applications, especially in the field of electric wrenches. Our PM Synchronous Motor is designed to provide durable and long-lasting performance, making it a cost-effective choice for your business.

Product Attributes
  • Brand Name: HC
  • Model Number: JN-HCP-5
  • Place of Origin: China
  • Certification: ISO9001, CCC, CE
  • Minimum Order Quantity: 50PCS
  • Price: Negotiable
  • Packaging Details: By Sea Pallet / By Air Carton / By Express Packaging
  • Delivery Time: 25 Days
  • Payment Terms: L/C, T/T
  • Supply Ability: 30K PCS/Month
  • Phase: Three-phase
  • Rated Voltage: 380V or made to order
  • Category: Electric Wrenches
  • Efficiency Level: IE4
  • Cooling Type: IC01

If you are interested in our Permanent Magnet Synchronous Motor, please feel free to contact us. We offer customized voltage options and large-scale production capabilities to meet your specific needs. Our short delivery time and flexible payment terms make it convenient for you to get the product you need. Don't hesitate, contact us now!

Contact Us


Customization:

HC Permanent Magnet Synchronous Motor Customization Service

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: CHINA

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet/By Air Carton/By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 30K PCS/Month

Rated Speed: 750r~3000r

Rate Output: 1.1~11KW

Speed Adjust: By VFD

Insulation Level: F

Dimensions: As Customers’ Requirements

Product Attributes: Synchronous Permanent Magnet Motor, Brushless DC Electric Motor, Magnetic Synchronous Motor



Packing and Shipping:

Packaging and Shipping

The Permanent Magnet Synchronous Motor will be carefully packaged and shipped to ensure its safe arrival to our customers. Our packaging process includes the following steps:

  • First, the motor will be placed in a sturdy and durable foam box to protect it from any potential damage during transportation.
  • Next, the foam box will be placed in a cardboard box and sealed with strong packing tape to prevent any movement during shipping.
  • Finally, the cardboard box will be labeled with the necessary shipping information and handled with care by our trusted shipping partners.

We offer a variety of shipping options to meet our customers' needs, including express shipping for urgent orders. Our team will work closely with our customers to ensure timely and efficient delivery of the Permanent Magnet Synchronous Motor.

For international orders, we will take extra care to comply with all customs and shipping regulations to ensure a smooth and hassle-free delivery process.

Upon arrival, our customers can expect to receive a well-packaged and intact Permanent Magnet Synchronous Motor that is ready to be installed and used.
