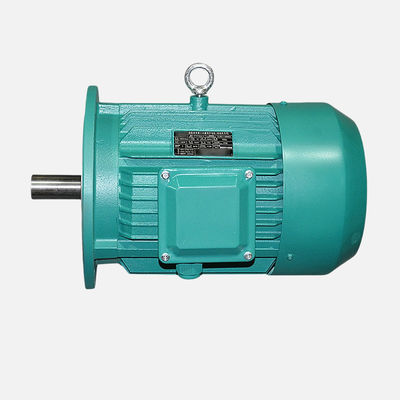

Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-Phase

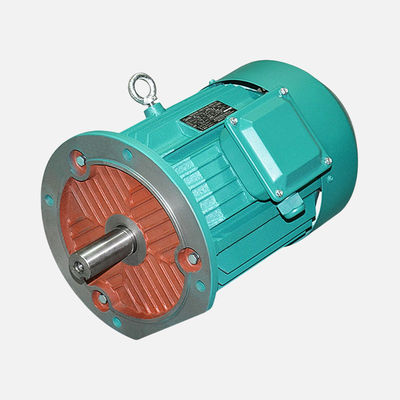

  • Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-Phase

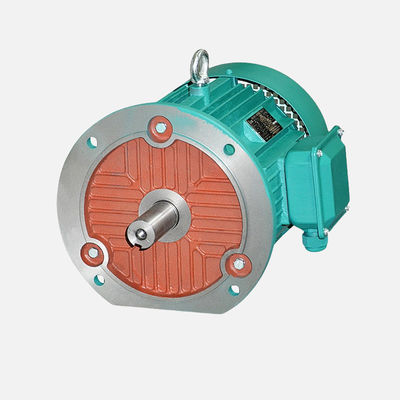

  • Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-Phase
  • Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-Phase
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-13
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Grade IP54/IP55 Insulation Level F
Phase Three-phase, Three Phase Cooling Type IC01
Rated Speed 750r~3000r Speed Adjust By VFD
Main Parts Imported Rate Output 1.1~11KW
Highlight

750r permanent magnet electric motor

,

3000R permanent magnet electric motor

,

brushless ipm motor ISO9001
Leave a Message
Product Description

Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-phase

Product Description:

Permanent Magnet Synchronous Motor - Product Overview
Cooling Type: IC01

The Permanent Magnet Synchronous Motor (PMSM) is a highly efficient and reliable motor that utilizes IC01 cooling type. This cooling method ensures that the motor operates at a safe temperature, extending its lifespan and reducing the risk of overheating.

Phase: Three-phase, Three Phase

The PMSM is a three-phase motor, meaning it has three sets of windings that are spaced evenly around the stator. This design allows for a smooth and constant power output, making it suitable for a wide range of industrial applications.

Working System: S1

The PMSM is designed to operate continuously at a constant load, making it ideal for S1 working systems. It can maintain a consistent speed and torque output, ensuring stable and reliable operation.

Rated voltage: 380V Or Made To Order.

The PMSM is designed to operate at a rated voltage of 380V. However, it can also be customized to meet specific voltage requirements, making it a versatile choice for various industries and applications.

Type: Permanent Magnet

The PMSM is a type of permanent magnet motor that uses rare earth magnets to create a magnetic field. This design eliminates the need for brushes, making it a brushless DC electric motor that is more efficient, reliable, and low maintenance.

Key Features
  • Synchronous Permanent Magnet Motor
  • Brushless DC Electric Motor
  • Multiphase Permanent Magnet Motor
  • High Efficiency
  • Low Noise
  • Compact Structure
  • Wide Speed Range
  • Easy Maintenance

The PMSM offers a range of key features that make it a top choice for various applications. Its synchronous design ensures precise speed control, while the use of permanent magnets eliminates the need for brushes, reducing noise and increasing efficiency. Its compact structure allows for easy integration into different systems, and its wide speed range offers flexibility for different operating conditions. Additionally, the PMSM requires minimal maintenance, making it a cost-effective and reliable option for long-term use.



Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Main Parts: Imported
  • Working System: S1
  • Cooling Type: IC01
  • Dimensions: As Customers’ Requirements
  • Speed Adjust: By VFD
  • External Rotor Motor
  • Brushless DC Electric Motor
  • Permanent Magnet AC Motor


Technical Parameters:

Technical Specification Value
Product Name Permanent Magnet Synchronous Motor
Efficiency Level IE4
Dimensions As Customers' Requirements
Rated Voltage 380V or Made to Order
Working System S1
Rated Speed 750r~3000r
Speed Adjust By VFD
Main Parts Imported
Cooling Type IC01
Rated Output 1.1~11KW
Category Electric Wrenches

Key Features Description
Product Name Permanent Magnet Synchronous Motor
Efficiency Level IE4 - High Efficiency for energy saving
Dimensions As Customers' Requirements - Customizable for various applications
Rated Voltage 380V or Made to Order - Flexible for different power supply systems
Working System S1 - Suitable for continuous operation
Rated Speed 750r~3000r - Wide range of speed options for different tasks
Speed Adjust By VFD - Easy and precise speed control
Main Parts Imported - High quality and reliable components
Cooling Type IC01 - Efficient cooling system for continuous operation
Rated Output 1.1~11KW - Various power options for different tasks
Category Electric Wrenches - Suitable for industrial and household applications
Key Words Multiphase Permanent Magnet Motor, Blushless AC Synchronous Motor, Energy Saving Motor

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

Category Electric Wrenches Permanent Magnet Synchronous Motor 750r-3000r Three-Phase 0

Applications:

HC JN-HCP-5 Permanent Magnet Synchronous Motor

HC JN-HCP-5 Permanent Magnet Synchronous Motor is a highly efficient and energy-saving product that is widely used in various industries. This motor is designed and manufactured by HC, a leading brand in the field of electrical equipment, with the model number JN-HCP-5 and the place of origin in China. It has obtained ISO9001, CCC, and CE certifications, ensuring its high quality and reliability. With a minimum order quantity of 50PCS, it is suitable for both small and large-scale applications.

Application

The Permanent Magnet Synchronous Motor is suitable for various applications, including industrial machinery, electric vehicles, household appliances, and more. Its high efficiency and energy-saving features make it an ideal choice for industries that require continuous and precise motor control, such as CNC machines, elevators, and air compressors. It can also be used in electric vehicles, providing a smooth and powerful driving experience. Additionally, it can be used in household appliances such as washing machines, refrigerators, and air conditioners to reduce energy consumption and save costs.

Features and Benefits

The HC JN-HCP-5 Permanent Magnet Synchronous Motor has many outstanding features that make it a preferred choice in the market:

  • Magnetic Synchronous Motor: This motor uses permanent magnets in its rotor, ensuring better efficiency and higher torque compared to other types of motors.
  • High Efficiency: With an efficiency rate of over 95%, this motor can save up to 30% of energy compared to traditional motors, reducing operational costs.
  • Low Noise: The advanced design and high-quality materials used in this motor result in a noise level as low as 55dB, providing a quiet working environment.
  • Maintenance-free: The internal permanent magnet design eliminates the need for regular maintenance, reducing downtime and costs.
  • High Power Density: This motor has a compact design and high power density, making it suitable for applications where space is limited.
Technical Specifications
  • Insulation Level: F
  • Protection Grade: IP54/IP55
  • Phase: Three-phase
  • Dimensions: As Customers' Requirements
  • Working System: S1
Packaging and Delivery

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is carefully packaged to ensure safe delivery. Customers can choose from three packaging options: By Sea Pallet, By Air Carton, or By Express Packaging. The delivery time is 25 days, and payment can be made through L/C or T/T. With a supply ability of 30K PCS per month, HC can meet the demands of various industries.

Conclusion

The HC JN-HCP-5 Permanent Magnet Synchronous Motor is a reliable and high-quality product that offers numerous benefits and features. Its advanced technology and design make it suitable for various applications, providing energy-saving and cost-effective solutions for businesses. With HC's commitment to providing top-notch products and services, this motor is an excellent choice for those looking for a durable and efficient motor for their applications.



Customization:

Permanent Magnet Synchronous Motor Customization Service

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: CHINA

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C,T/T

Supply Ability: 30K PCS/Month

Product Attributes:
  • External Rotor Motor
  • PMSM
  • Synchronous Permanent Magnet Motor
  • Working System: S1
  • Rated speed: 750r~3000r
  • Category: Electric Wrenches
  • Rated voltage: 380V Or Made To Order.
  • Speed Adjust: By VFD


Packing and Shipping:

Packaging and Shipping for Permanent Magnet Synchronous Motor

When shipping Permanent Magnet Synchronous Motors, it is important to ensure that they are properly packaged to prevent any damage during transportation. Below are the recommended packaging guidelines:

  • Use sturdy and durable packaging materials such as corrugated boxes, foam padding, and bubble wrap.
  • Ensure that the motor is tightly secured inside the packaging to prevent any movement.
  • Include shock-absorbing materials such as foam or cushioning pads to protect the motor from any impact or vibration.
  • Seal the packaging with strong tape to prevent it from opening during transit.
  • Label the package clearly with the product name, model number, and any other necessary shipping information.
  • For international shipments, make sure to comply with all customs regulations and include any required documentation.

For larger motors, it is recommended to use wooden crates for added protection. It is also important to consider the weight and dimensions of the package to ensure safe handling and transportation.

When shipping Permanent Magnet Synchronous Motors, it is recommended to use a reliable and experienced shipping carrier to ensure timely and safe delivery.

Upon receiving the motor, it is important to inspect the packaging for any damages and report it to the shipping carrier immediately if necessary.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is HC.
  • Q: What is the model number of this product?
  • A: The model number of this product is JN-HCP-5.
  • Q: Where is this product made?
  • A: This product is made in CHINA.
  • Q: What certifications does this product have?
  • A: This product is certified with ISO9001, CCC, and CE.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 50PCS.
  • Q: Is the price negotiable for this product?
  • A: Yes, the price for this product is negotiable.
  • Q: How is this product packaged?
  • A: This product can be packaged by sea pallet, air carton, or express packaging.
  • Q: How long does it take for delivery?
  • A: The delivery time for this product is 25 days.
  • Q: What are the accepted payment terms for this product?
  • A: The accepted payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 30K PCS per month.
Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
