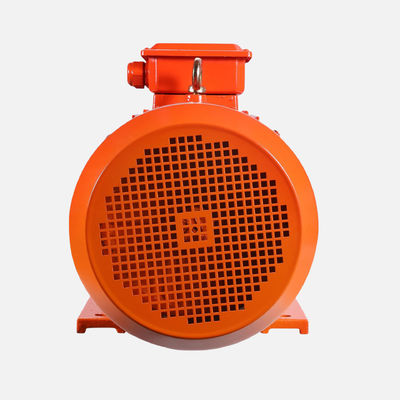

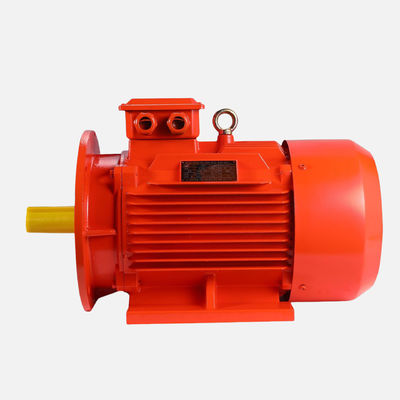

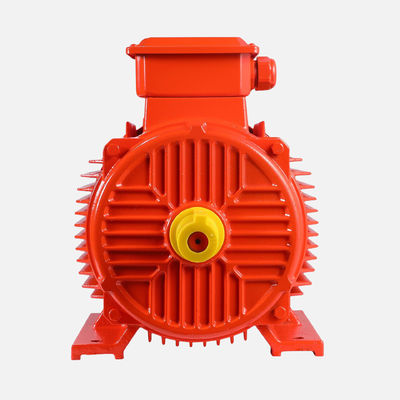

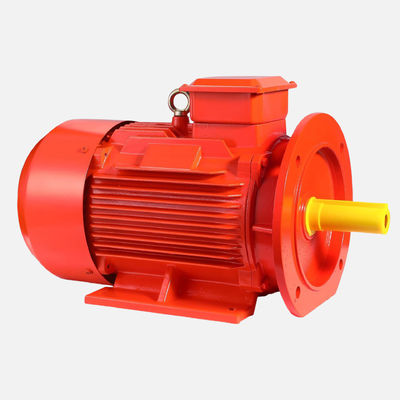

Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r

  • Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r
  • Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r
  • Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r
  • Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-7
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Electric Wrenches Efficiency Level IE4
Dimensions As Customers’ Requirements Rated Speed 750r~3000r
Cooling Type IC01 Phase Three-phase, Three Phase
Insulation Level F Type Permanent Magnet
Highlight

750RPM interior permanent magnet motor

,

3000rpm interior permanent magnet motor

,

IC01 permanent magnet synchronous
Leave a Message
Product Description

Speed Adjust By VFD Synchronous Permanent Magnet Motor with Rated Speed 750r-3000r

Description:

Features:


  • Product Name: Permanent Magnet Synchronous Motor
  • Insulation level: F
  • Rated voltage: 380V Or Made To Order.
  • Main Parts: Imported
  • Protection Grade: IP54/IP55
  • Rate Output: 1.1~11KW
  • Synchronous Permanent Magnet Motor
  • Magnetic Synchronous Motor
  • Blushless AC Synchronous Motor
  • Electric AC Motor


Technical Parameters:

Product Name Permanent Magnet Synchronous Motor
Insulation Level F
Cooling Type IC01
Category Electric Wrenches
Dimensions As Customers’ Requirements
Rated Speed 750r~3000r
Phase Three-phase, Three Phase
Working System S1
Efficiency Level IE4
Protection Grade IP54/IP55
Rated Output 1.1~11KW
Product Name Permanent Magnet Synchronous Motor
Insulation Level F
Cooling Type IC01
Category Electric Wrenches
Dimensions As Customers’ Requirements
Rated Speed 750r~3000r
Phase Three-phase, Three Phase
Working System S1
Efficiency Level IE4
Protection Grade IP54/IP55
Rated Output 1.1~11KW
Key Features Internal Permanent Magnet Motor, Magnetic Synchronous Motor, Brushless DC Electric Motor

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

Speed Adjust By VFD Synchronous Permanent Magnet Motor With Rated Speed 750r-3000r 0

Applications:

Permanent Magnet Synchronous Motor - HC JN-HCP-5
Product Overview

The Permanent Magnet Synchronous Motor, also known as the Internal Permanent Magnet Motor or PMSM, is a type of electric motor that uses permanent magnets to produce a magnetic field. It is designed and produced by HC, a leading manufacturer of industrial electric tools and equipment. The model number for this product is JN-HCP-5 and it is proudly made in China.

Application and Usage

The Permanent Magnet Synchronous Motor is widely used in various industrial applications due to its high efficiency and energy-saving capabilities. It is most commonly used in electric wrenches, but can also be used in other industrial tools and equipment that require variable speed control. The motor can be made to order with a rated voltage of either 380V or depending on the customer's specific needs.

Product Attributes
  • Brand Name: HC
  • Model Number: JN-HCP-5
  • Place of Origin: China
  • Certification: ISO9001, CCC, CE
  • Minimum Order Quantity: 50PCS
  • Price: Negotiable
  • Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
  • Delivery Time: 25 Days
  • Payment Terms: L/C, T/T
  • Supply Ability: 30K PCS/Month
  • Rated Voltage: 380V Or Made To Order
  • Cooling Type: IC01
  • Working System: S1
  • Category: Electric Wrenches
  • Rated Output: 1.1~11KW


Customization:

HC Customized Service for Permanent Magnet Synchronous Motor
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Protection Grade: IP54/IP55
Cooling Type: IC01
Rated voltage: 380V Or Made To Order.
Insulation level: F
Rate Output: 1.1~11KW
Key words: PM Synchronous Motor, Permanent Magnet AC Motor, Synchronous Permanent Magnet Motor


Packing and Shipping:

Packaging and Shipping

The Permanent Magnet Synchronous Motor is carefully packaged and shipped to ensure its safe delivery to our customers.

Each motor is placed in a sturdy cardboard box with ample padding to prevent any damage during transportation.

We also use strong and durable packaging materials to protect the motor from any external impacts.

For international shipments, the motor is securely packed in a wooden crate to withstand long-distance travel.

All necessary documents and certifications are included in the package for easy customs clearance.

Our standard shipping method is through reputable couriers, but we can also accommodate specific shipping requests from our customers.

We strive to provide timely and efficient shipping services to ensure that our customers receive their orders in a timely manner.

For bulk orders, we offer customized packaging and shipping solutions to meet our customers' unique needs.

At Permanent Magnet Synchronous Motor, we are committed to delivering our products with the highest level of quality and care.
