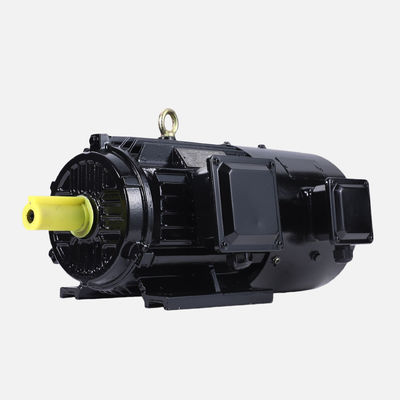

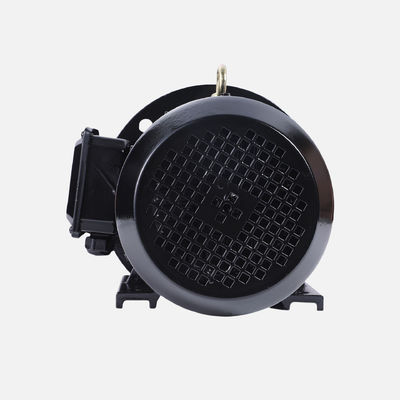

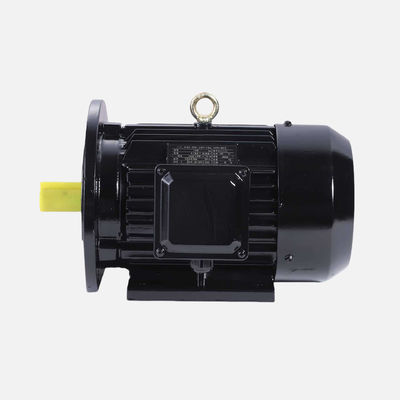

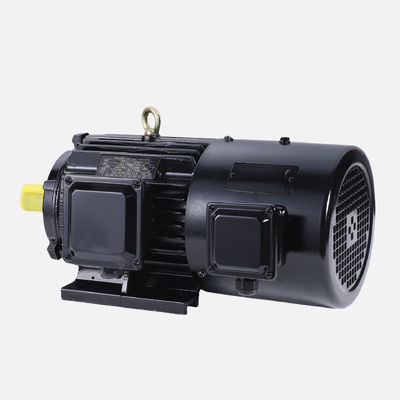

IE4 Efficiency Level Permanent Magnet Synchronous Motor For S1 Working System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HC |
| Certification | ISO9001 CCC CE |
| Model Number | JN-HCP-6 |
| Minimum Order Quantity | 50PCS |
| Price | Negotiable |
| Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time | 25 Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 30K PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Efficiency Level | IE4 | Rate Output | 1.1~11KW |
|---|---|---|---|
| Working System | S1 | Speed Adjust | By VFD |
| Type | Permanent Magnet | Dimensions | As Customers’ Requirements |
| Main Parts | Imported | Protection Grade | IP54/IP55 |
| Highlight | IE4 Permanent Magnet Synchronous Motor,VFD Permanent Magnet Synchronous Motor,dc motor magnets 380V |
||
Product Description
IE4 Efficiency Level Permanent Magnet Synchronous Motor for S1 Working System
Product Description:
Permanent Magnet Synchronous Motor
The Permanent Magnet Synchronous Motor is a high-performance motor designed for a wide range of applications. It is an external rotor motor with a brushless design, making it highly efficient, low noise, and reliable. With a compact size, it is suitable for use in various industries, including manufacturing, automation, and more.
Protection Grade: IP54/IP55
The Permanent Magnet Synchronous Motor is built with a high protection grade of IP54 or IP55, ensuring its resistance to dust and water. This makes it suitable for use in harsh environments, providing reliable performance even in the most demanding conditions.
Insulation Level: F
The motor is designed with an insulation level of class F, which means it can withstand high temperatures without any damage. This ensures the motor's durability and longevity, making it a cost-effective solution for long-term use.
Working System: S1
The Permanent Magnet Synchronous Motor operates on a continuous duty cycle, making it ideal for continuous operation. It is designed to provide consistent and reliable performance, ensuring minimal downtime and maximum productivity.
Rate Output: 1.1~11KW
With a rate output ranging from 1.1 to 11KW, this motor is suitable for a variety of applications, from small to medium-sized machinery. It provides the necessary power to drive different types of equipment, making it a versatile solution for various industries.
Efficiency Level: IE4
The Permanent Magnet Synchronous Motor is designed with a high-efficiency level of IE4, which means it can convert electrical energy into mechanical energy with minimal energy loss. This results in energy savings and reduced operating costs, making it an environmentally friendly and cost-effective choice.
Key Features:
- Permanent Magnet AC Motor
- External Rotor Motor
- Brushless Design
- Compact Size
- High Efficiency
- Low Noise
- Reliable Performance
- Wide Application
In summary, the Permanent Magnet Synchronous Motor is a high-quality, high-performance motor designed for a wide range of applications. Its compact size, high efficiency, low noise, and reliable performance make it an ideal choice for various industries. With its IP54/IP55 protection grade, F insulation level, and IE4 efficiency level, it provides a cost-effective and environmentally friendly solution for long-term use.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Rated voltage: 380V Or Made To Order.
- Rate Output: 1.1~11KW
- Efficiency Level: IE4
- Main Parts: Imported
- Protection Grade: IP54/IP55
- Synchronous Permanent Magnet Motor
- PM Synchronous Motor
- Internal Permanent Magnet Motor
Technical Parameters:
| Technical Parameters | Description |
|---|---|
| Product Name | Synchronous Permanent Magnet Motor |
| Speed Adjust | By VFD |
| Phase | Three-phase, Three Phase |
| Main Parts | Imported |
| Dimensions | As Customers’ Requirements |
| Cooling Type | IC01 |
| Category | Electric Wrenches |
| Rated Voltage | 380V Or Made To Order |
| Protection Grade | IP54/IP55 |
| Efficiency Level | IE4 |
| Insulation Level | F |
| Motor Type | External Rotor Motor |
| Motor Category | PMSM |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
| HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
| HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
| HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
| HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
| HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
| HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
| HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
| HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
| HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
| HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
| HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
| HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
| HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
| HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
| HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
| HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
| HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
| HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
| HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
| HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
| HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
| HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
| HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
| HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
| HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
| HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
| HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
| HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
| HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
| HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
| HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
| HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
| HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
| HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
| HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
| HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
| HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
| HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
| HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
| HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
| HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
| HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
| HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
| HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
| HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
| HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
| HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
| HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
| HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
| HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
| HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
| HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
| HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
| HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
| HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
| HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
| HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
| HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
| HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
| HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
| HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
| HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
| HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
| HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
| HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
| HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
| HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
| HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
| HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
| HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
| HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
| HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
| HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
| HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
| HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
| HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
| HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
| HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
| HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
| HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
| HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
| HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
| HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
| HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
| HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
| HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
| HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
| HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
| HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
| HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
| HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
| HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
| HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
| HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
| HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
| HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
Permanent Magnet Synchronous Motor - HC JN-HCP-5
The Permanent Magnet Synchronous Motor, also known as Internal Permanent Magnet Motor, is a type of AC motor that uses permanent magnets embedded in the rotor to create a magnetic field. This type of motor offers high efficiency, high torque, and low maintenance, making it an ideal choice for various applications.
Brand Name: HC
HC is a well-known brand in the field of electric motors, providing high-quality and reliable products to customers worldwide.
Model Number: JN-HCP-5
The JN-HCP-5 is a specific model of the Permanent Magnet Synchronous Motor, designed and manufactured by HC. It is a high-performance motor suitable for various industrial and commercial applications.
Place of Origin: CHINA
The Permanent Magnet Synchronous Motor is proudly made in China, with advanced technology and strict quality control processes to ensure its reliability and durability.
Certification: ISO9001 CCC CE
HC JN-HCP-5 Permanent Magnet Synchronous Motor is certified with ISO9001, CCC, and CE, meeting international standards for quality and safety.
Minimum Order Quantity: 50PCS
The minimum order quantity for the HC JN-HCP-5 Permanent Magnet Synchronous Motor is 50 pieces, making it suitable for both small and large-scale projects.
Price: Negotiable
The price of the HC JN-HCP-5 Permanent Magnet Synchronous Motor is negotiable, depending on the quantity and specific requirements of the customer.
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
The HC JN-HCP-5 Permanent Magnet Synchronous Motor comes in various packaging options, including by sea pallet, by air carton, and by express packaging, to meet different transportation needs.
Delivery Time: 25 Days
The delivery time for the HC JN-HCP-5 Permanent Magnet Synchronous Motor is 25 days, ensuring timely delivery to meet project deadlines.
Payment Terms: L/C,T/T
HC accepts payment through various methods, including L/C and T/T, making it convenient for customers to purchase the JN-HCP-5 Permanent Magnet Synchronous Motor.
Supply Ability: 30K PCS/Month
With a monthly supply ability of 30,000 pieces, HC can meet the demands of large-scale projects and ensure timely delivery.
Category: Electric Wrenches
The HC JN-HCP-5 Permanent Magnet Synchronous Motor belongs to the category of electric wrenches, making it suitable for various applications that require high torque and speed.
Cooling Type: IC01
The cooling type for the HC JN-HCP-5 Permanent Magnet Synchronous Motor is IC01, which refers to natural air cooling, making it energy-efficient and environmentally friendly.
Insulation level: F
The insulation level for the HC JN-HCP-5 Permanent Magnet Synchronous Motor is F, which means it can withstand high temperatures, ensuring its durability and reliability.
Dimensions: As Customers’ Requirements
The dimensions of the HC JN-HCP-5 Permanent Magnet Synchronous Motor can be customized according to customers' specific requirements, making it suitable for various installation spaces.
Speed Adjust: By VFD
The speed of the HC JN-HCP-5 Permanent Magnet Synchronous Motor can be adjusted by using a VFD (Variable Frequency Drive), allowing for precise control and energy efficiency.
Customization:
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Working System: S1
Speed Adjust: By VFD
Cooling Type: IC01
Phase: Three-phase, Three Phase
Protection Grade: IP54/IP55
Key Features:
- External Rotor Motor
- Brushless DC Electric Motor
- Synchronous Permanent Magnet Motor
Packing and Shipping:
Packaging and Shipping
Permanent Magnet Synchronous Motor will be packaged in a sturdy and secure manner to ensure safe delivery to our customers. The motor will be wrapped in protective material and placed in a strong cardboard box. Extra padding will be added to the box to prevent any damage during transportation.
The package will also include an instruction manual and any necessary accessories for installation. The box will be labeled with product information and handling instructions for the shipping company.
For domestic shipping, we will use a reputable courier service with tracking capabilities to ensure timely and safe delivery. For international shipping, we will work with our trusted logistics partners to ensure smooth customs clearance and delivery to our customers' designated locations.
We take great care in packaging and shipping our products to ensure they arrive in perfect condition. If there are any issues with the delivery, please contact our customer service team for assistance.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HC. - Q: What is the model number of this product?
A: The model number of this product is JN-HCP-5. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: Does this product have any certifications?
A: Yes, this product has ISO9001, CCC, and CE certifications. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 50PCS. - Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable. - Q: How is this product packaged?
A: This product can be packaged by sea pallet, air carton, or express packaging. - Q: What is the delivery time for this product?
A: The delivery time for this product is 25 days. - Q: What are the payment terms for this product?
A: The payment terms for this product are L/C and T/T. - Q: What is the supply ability for this product?
A: The supply ability for this product is 30K PCS per month.
Recommended Products
