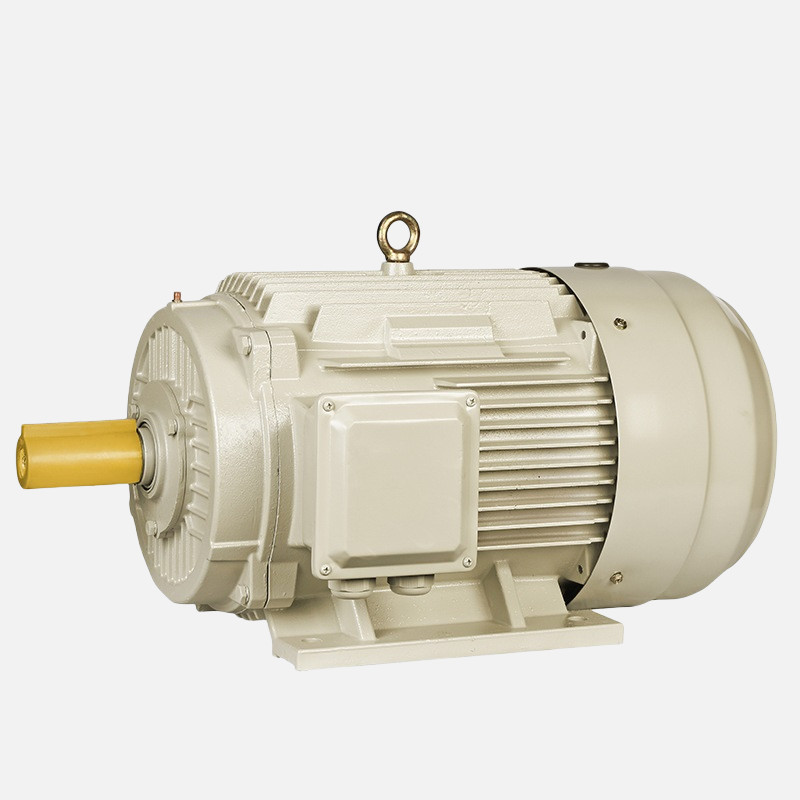

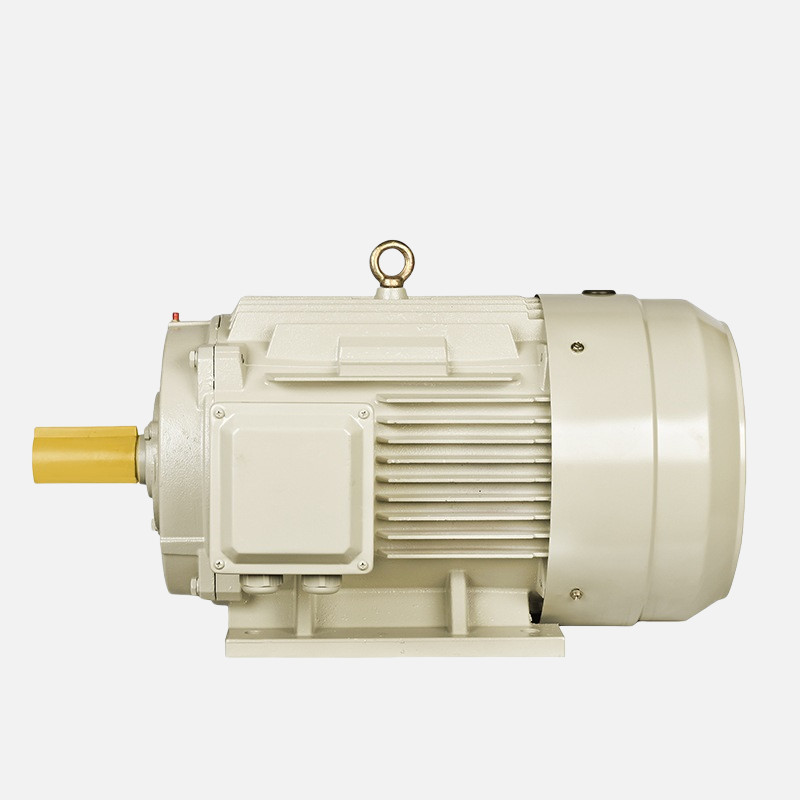

Three Phase Blushless AC Synchronous Motor With IE4 Efficiency Level

  • Three Phase Blushless AC Synchronous Motor With IE4 Efficiency Level
  • Three Phase Blushless AC Synchronous Motor With IE4 Efficiency Level
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-5
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Level F Type Permanent Magnet
Rate Output 1.1~11KW Speed Adjust By VFD
Category Electric Wrenches Rated Voltage 380V Or Made To Order.
Protection Grade IP54/IP55 Efficiency Level IE4
Highlight

Three Phase permanent magnet rotor

,

Blushless permanent magnet ac motor

,

IE4 ipm electric motor
Leave a Message
Product Description

Three Phase Blushless AC Synchronous Motor with IE4 Efficiency Level

Product Description:

Product Overview - Permanent Magnet Synchronous Motor

This high-performance Permanent Magnet Synchronous Motor is a cutting-edge product in the field of electric wrenches. It is designed with advanced technology to ensure optimal performance and efficiency in various industrial applications.

Insulation Level: F

The Permanent Magnet Synchronous Motor is equipped with Class F insulation, making it suitable for use in environments with high temperatures and high humidity. This ensures the safety and reliability of the motor, even under extreme conditions.

Cooling Type: IC01

The cooling system of this motor is designed with IC01 technology, which utilizes external air circulation to dissipate heat generated during operation. This results in a longer lifespan and improved performance of the motor.

Working System: S1

The Permanent Magnet Synchronous Motor is designed with a continuous duty cycle, making it suitable for applications that require continuous operation. This working system ensures smooth and efficient performance, without the need for frequent maintenance.

Main Parts: Imported

All major components of this Permanent Magnet Synchronous Motor are imported, ensuring superior quality and reliability. The use of high-quality imported parts also contributes to the motor's high efficiency and low noise level.

Category: Electric Wrenches

This Permanent Magnet Synchronous Motor belongs to the category of electric wrenches, which are widely used in industries such as automotive, construction, and manufacturing. Its compact design and high torque make it the ideal choice for various torque-sensitive applications.

Key Features:
  • Internal Permanent Magnet Motor - The motor is designed with an internal permanent magnet, which eliminates the need for external magnets and reduces the motor's size and weight.
  • Permanent Magnet AC Motor - This motor utilizes permanent magnets to create a rotating magnetic field, resulting in higher efficiency and lower energy consumption.
  • External Rotor Motor - The external rotor design of this motor allows for better heat dissipation and improved performance, compared to traditional internal rotor motors.
  • High Efficiency - The Permanent Magnet Synchronous Motor boasts high efficiency, reducing energy consumption and operating costs.
  • Low Noise - With its advanced design and technology, this motor operates at a low noise level, making it suitable for use in noise-sensitive environments.
  • Compact Design - The compact and lightweight design of this motor makes it easy to install and integrate into various systems, without compromising on performance.


Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Working System: S1
  • Type: Permanent Magnet
  • Efficiency Level: IE4
  • Category: Electric Wrenches
  • Main Parts: Imported
  • Product Features:
    • Multiphase Permanent Magnet Motor
    • PM Synchronous Motor
    • Brushless DC Electric Motor


Technical Parameters:

Product Name Permanent Magnet Synchronous Motor
Speed Adjust By VFD
Type Permanent Magnet
Working System S1
Rated Voltage 380V Or Made To Order
Dimensions As Customers' Requirements
Category Electric Wrenches
Efficiency Level IE4
Phase Three-phase, Three Phase
Protection Grade IP54/IP55
Insulation Level F
Synchronous Permanent Magnet Motor Yes
Blushless AC Synchronous Motor Yes
Multiphase Permanent Magnet Motor Yes

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

Three Phase Blushless AC Synchronous Motor With IE4 Efficiency Level 0

Applications:

Permanent Magnet Synchronous Motor

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: CHINA

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C,T/T

Supply Ability: 30K PCS/Month

Efficiency Level: IE4

Category: Electric Wrenches

Protection Grade: IP54/IP55

Main Parts: Imported

Phase: Three-phase, Three Phase

Introduction

The Permanent Magnet Synchronous Motor is a high-efficiency, energy-saving motor that is widely used in various industries. It is also known as the External Rotor Motor or Magnetic Synchronous Motor. This motor is designed and produced by HC, a trusted brand in the field of electric motors. The specific model, JN-HCP-5, is a popular choice for its reliable performance and advanced features.

Application

The Permanent Magnet Synchronous Motor is suitable for various applications that require high efficiency and precision control. It can be used in industries such as automotive, aerospace, machinery, robotics, and many more. Its compact size and powerful performance make it an ideal choice for both small and large-scale operations.

Features
  • High Efficiency: The Permanent Magnet Synchronous Motor has an efficiency level of IE4, which means it can save up to 20% energy compared to traditional motors.
  • Advanced Technology: This motor uses the latest technology for precise control and smooth operation.
  • Reliable Performance: With imported main parts, the motor ensures stable and reliable performance in various working conditions.
  • Environmental Friendly: The energy-saving design of this motor makes it an environmentally friendly choice for businesses and industries.
  • Durable: The motor is designed to withstand harsh environments and has a long lifespan.
  • Easy Installation: The compact size and lightweight design of the motor make it easy to install and maintain.
  • IP54/IP55 Protection Grade: This motor has a protection grade of IP54/IP55, making it suitable for both indoor and outdoor use.
Scene

One of the main applications of the Permanent Magnet Synchronous Motor is in the automotive industry. It is commonly used in electric vehicles, hybrid cars, and electric buses. The high efficiency of the motor helps to reduce energy consumption and improve the overall performance of the vehicle. With its precise control and stable performance, this motor is also used in automated production lines for manufacturing automobiles.

In the aerospace industry, the Permanent Magnet Synchronous Motor is used in various equipment such as aircraft hydraulic pumps, fans, and compressors. Its compact design and high efficiency make it an ideal choice for aerospace applications where space and weight are crucial factors.

In the machinery industry, this motor is widely used in CNC machines, pumps, and cranes. Its precise control and high torque make it suitable for heavy-duty operations. The motor's durability and resistance to harsh environments also make it a preferred choice for industrial applications.

The Permanent Magnet Synchronous Motor is also used in robotics for its precise control and efficient performance. It is used in robotic arms, automated guided vehicles, and other industrial robots. With its compact size and high efficiency, this motor helps to improve the productivity and accuracy of robotic systems.

Conclusion

The Permanent Magnet Synchronous Motor is a versatile and reliable product that has a wide range of applications in various industries. With its advanced technology, high efficiency, and durable design, it is an ideal choice for businesses and industries looking to improve their energy efficiency and performance. As a trusted brand, HC's JN-HCP-5 model of this motor offers excellent quality and value for its customers.



Customization:

HC JN-HCP-5 Permanent Magnet Synchronous Motor Customization Service

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: China

Certification: ISO9001, CCC, CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet / By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 30K PCS/Month

Efficiency Level: IE4

Protection Grade: IP54/IP55

Rate Output: 1.1~11KW

Cooling Type: IC01

Dimensions: As Customers’ Requirements

Experience the power and efficiency of our PMSM (Permanent Magnet Synchronous Motor). With cutting-edge technology and superior performance, our Blushless AC Synchronous Motor is the perfect solution for your industrial needs. Our Synchronous Permanent Magnet Motor offers customizable options to meet your specific requirements and provide unmatched performance. Trust HC to provide top-notch Customization Service for your motor needs. Contact us now to learn more.



Packing and Shipping:

Packaging and Shipping for Permanent Magnet Synchronous Motor

Our Permanent Magnet Synchronous Motors are carefully packaged to ensure safe delivery to our customers. Each motor is individually wrapped in protective materials and placed in a sturdy cardboard box. The box is then sealed and labeled with the motor model number and other necessary information.

For shipping, we use trusted carriers such as UPS, FedEx, and DHL to ensure timely and secure delivery. We also offer the option for customers to arrange their own shipping if preferred.

Our motors are shipped from our warehouse in , and we offer worldwide shipping to our customers. Shipping fees and delivery time may vary depending on the destination and the size/weight of the motor.

Upon receiving the motor, please inspect the packaging for any damages before accepting the delivery. If there are any concerns, please contact our customer service team immediately for assistance.

Thank you for choosing our Permanent Magnet Synchronous Motor. We strive to provide the best packaging and shipping services to ensure your satisfaction.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is HC.
  • Q: What is the model number of this product?
  • A: The model number of this product is JN-HCP-5.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: What certifications does this product have?
  • A: This product is certified with ISO9001, CCC, and CE.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 50PCS.
  • Q: Is the price negotiable for this product?
  • A: Yes, the price for this product is negotiable.
  • Q: How is this product packaged?
  • A: This product can be packaged by sea pallet, air carton, or express packaging.
  • Q: What is the estimated delivery time for this product?
  • A: The estimated delivery time for this product is 25 days.
  • Q: What are the payment terms for this product?
  • A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 30,000 PCS per month.
Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
