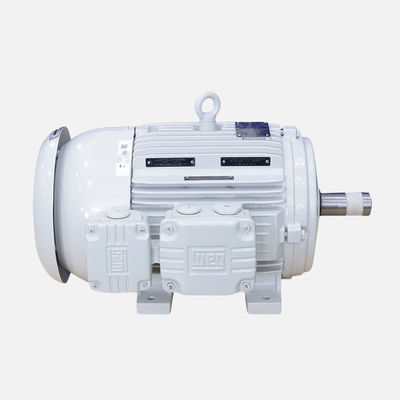

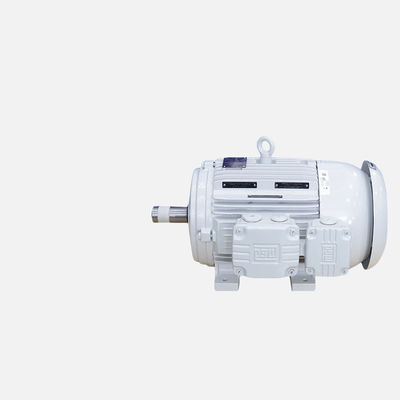

Three Phase Permanent Magnet Synchronous Motor For Electric Wrenches 1.1-11KW

  • Three Phase Permanent Magnet Synchronous Motor For Electric Wrenches 1.1-11KW
  • Three Phase Permanent Magnet Synchronous Motor For Electric Wrenches 1.1-11KW
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-4
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Type IC01 Rated Voltage 380V Or Made To Order.
Working System S1 Type Permanent Magnet
Insulation Level F Dimensions As Customers’ Requirements
Category Electric Wrenches Rate Output 1.1~11KW
Highlight

Three Phase Permanent Magnet Synchronous Motor

,

1500r/min Permanent Magnet Synchronous Motor

,

1000r/min electric motor magnet
Leave a Message
Product Description

Three Phase Permanent Magnet Synchronous Motor for Electric Wrenches 1.1-11KW

Product Description:

Permanent Magnet Synchronous Motor
Product Overview

A Permanent Magnet Synchronous Motor, also known as a Blushless AC Synchronous Motor or a Synchronous Permanent Magnet Motor, is a type of electric motor that uses permanent magnets in its rotor to create a magnetic field. It is an advanced and efficient motor that is widely used in various industries and applications.

The motor is designed to work with a variable frequency drive (VFD) for speed adjustment, making it suitable for different operating conditions. It has a working system of S1, which means it can continuously operate at a constant load.

The Permanent Magnet Synchronous Motor is characterized by its use of permanent magnets in the rotor, which eliminates the need for a separate excitation system, resulting in energy-saving and efficient performance. It also has a high power density, meaning it can deliver a high output power in a compact size.

With its permanent magnets, the motor is able to produce a high torque output, making it suitable for applications that require high starting torque or heavy load conditions. It also operates with low vibration and noise levels, providing a comfortable and quiet working environment.

The motor is rated for an output power of 1.1 to 11 kilowatts and has a rated speed range of 750 to 3000 revolutions per minute (r/min). This wide speed range allows for flexible and precise control of the motor's speed, making it suitable for various applications.

In addition, the Permanent Magnet Synchronous Motor is known for its reliable performance and long operating life. It requires minimal maintenance, thanks to its simple and robust design, making it a cost-effective option for many industries.

Key Features
  • Blushless AC Synchronous Motor
  • Synchronous Permanent Magnet Motor
  • Permanent Magnet AC Motor
  • Energy-saving and Efficient
  • High Power Density
  • High Torque
  • Low Vibration and Noise
  • Reliable Performance
  • Wide Speed Range
  • Easy Maintenance


Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Rated speed: 750r~3000r
  • Type: Permanent Magnet
  • Rated voltage: 380V Or Made To Order
  • Category: Electric Wrenches
  • Dimensions: As Customers’ Requirements
  • Synchronous Permanent Magnet Motor
  • Blushless AC Synchronous Motor
  • High Efficiency
  • Low Noise
  • Compact Design


Technical Parameters:

Product Name: Permanent Magnet Synchronous Motor
Phase: Three-phase
Insulation Level: F
Rated Output: 1.1~11KW
Rated Speed: 750r~3000r
Main Parts: Imported
Protection Grade: IP54/IP55
Type: Permanent Magnet
Rated Voltage: 380V Or Made To Order.
Speed Adjust: By VFD
Cooling Type: IC01
Key Features: External Rotor Motor, PMSM, Permanent Magnet AC Motor, High Efficiency

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300

Three Phase Permanent Magnet Synchronous Motor For Electric Wrenches 1.1-11KW 0

Applications:

Permanent Magnet Synchronous Motor: Revolutionizing Energy Efficiency

Brand Name: HC

Model Number: JN-HCP-5

Place of Origin: China

Certification: ISO9001 CCC CE

Minimum Order Quantity: 50PCS

Price: Negotiable

Packaging Details: By Sea Pallet / By Air Carton / By Express Packaging

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 30K PCS/Month

Introduction

The Permanent Magnet Synchronous Motor (PMSM), also known as Internal Permanent Magnet Motor (IPM), is a highly efficient and energy-saving motor that is widely used in various industrial and commercial applications. One of the most popular and reliable brands in the market is HC's JN-HCP-5 PMSM.

Application

The JN-HCP-5 PMSM is suitable for a wide range of applications, including:

  • Industrial machinery and equipment
  • Electric vehicles
  • Refrigeration systems
  • Pump and fan systems
  • HVAC systems
  • Compressors
  • Conveyor systems
Product Features

The JN-HCP-5 PMSM boasts the following features:

  • High Efficiency: With its internal permanent magnets, this motor has a higher efficiency compared to traditional motors, resulting in significant energy savings.
  • Low Noise: The use of permanent magnets reduces the noise level of the motor, making it ideal for applications that require quiet operation.
  • Stable Performance: The advanced design and high-quality components ensure stable and reliable performance, even in harsh industrial environments.
Product Specifications
  • Speed Adjust: The motor can be easily controlled and adjusted using a Variable Frequency Drive (VFD).
  • Insulation Level: The motor has a high insulation level of F, ensuring safety and reliability.
  • Rate Output: The JN-HCP-5 PMSM has a rated output of 1.1~11KW, making it suitable for a wide range of applications.
  • Phase: It is a three-phase motor, providing a balanced and stable power supply.
  • Main Parts: The main parts of the motor are imported, ensuring high quality and reliable performance.
Benefits

The JN-HCP-5 PMSM offers numerous benefits, including:

  • Significant energy savings
  • Reduced operating costs
  • Lower maintenance costs
  • Longer lifespan
  • Improved efficiency and productivity
Conclusion

The JN-HCP-5 PMSM from HC is a top-of-the-line product that offers high efficiency, energy savings, low noise, and stable performance. Its advanced design, high-quality components, and reliable performance make it the perfect choice for a wide range of industrial and commercial applications. With HC's commitment to quality and customer satisfaction, the JN-HCP-5 PMSM is the ideal choice for revolutionizing energy efficiency in your business.



Customization:

HC Permanent Magnet Synchronous Motor Customization Service
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Phase: Three-phase, Three Phase
Rate Output: 1.1~11KW
Efficiency Level: IE4
Cooling Type: IC01
Protection Grade: IP54/IP55
Key Features:
  • Magnetic Synchronous Motor
  • Multiphase Permanent Magnet Motor
  • High Efficiency Motor
  • Customized Packaging and Delivery
  • Reliable Quality
  • Fast Delivery
  • Competitive Price


Packing and Shipping:

Packaging and Shipping for Permanent Magnet Synchronous Motor

Our Permanent Magnet Synchronous Motor is carefully packaged to ensure safe delivery to our customers. The packaging materials used are sturdy and designed to protect the motor from any damage during transportation.

Each motor is packed in a strong and durable cardboard box, with additional cushioning materials to prevent any movement or impact during shipping. The box is then sealed securely to protect the motor from dust, moisture, and other external factors.

For international shipping, our motors are packaged and shipped in compliance with all necessary regulations and requirements. This ensures that our products reach our customers in a timely and efficient manner, without any delays or complications.

Our shipping partners are carefully selected to ensure reliable and on-time delivery of our Permanent Magnet Synchronous Motors. We work closely with them to track the shipment and provide updates to our customers regarding the status of their order.

Upon delivery, our motors are accompanied by all necessary documents, including a product manual, warranty card, and any other required certifications. This ensures that our customers have all the information they need to properly install and use our motors.

We take great care in packaging and shipping our Permanent Magnet Synchronous Motors to ensure that they reach our customers in perfect condition. We are committed to providing the highest quality products and services to our customers, and this extends to our packaging and shipping processes as well.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is HC.
  • Q: What is the model number of this product?
    A: The model number of this product is JN-HCP-5.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: Is this product certified?
    A: Yes, this product is certified with ISO9001, CCC, and CE.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 50 pieces.
Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
