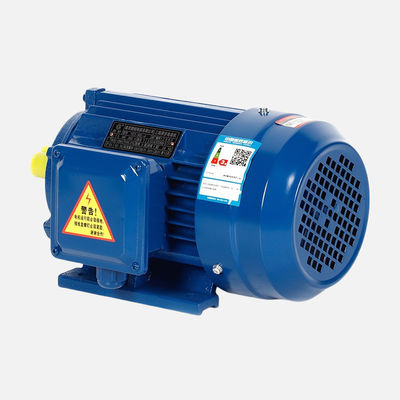

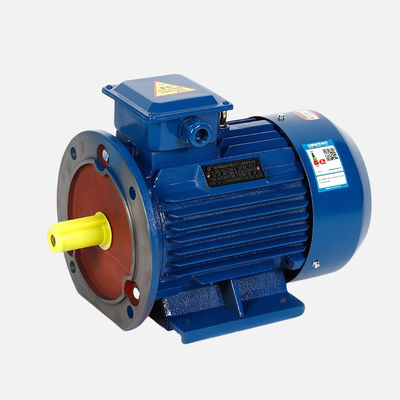

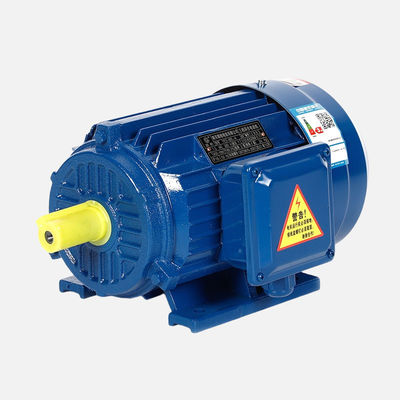

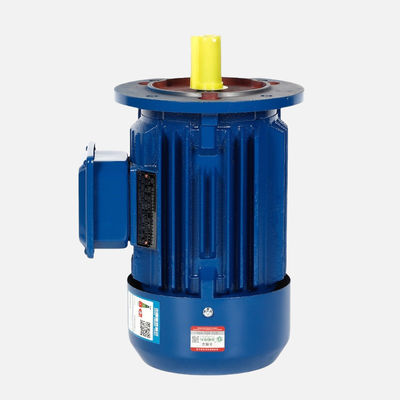

IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r

  • IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r
  • IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r
  • IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r
  • IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r
Place of Origin CHINA
Brand Name HC
Certification ISO9001 CCC CE
Model Number JN-HCP-11
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 25 Days
Payment Terms L/C,T/T
Supply Ability 30K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working System S1 Rate Output 1.1~11KW
Category Electric Wrenches Rated Speed 750r~3000r
Efficiency Level IE4 Main Parts Imported
Rated Voltage 380V Or Made To Order. Type Permanent Magnet
Highlight

CE rotor magnet

,

IP54 rotor magnet

,

IP55 bldc and pmdc motor
Leave a Message
Product Description

IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor with Rated Speed 750r-3000r

Product Description:

Permanent Magnet Synchronous Motor

This product is an External Rotor Motor, also known as Synchronous Permanent Magnet Motor or Internal Permanent Magnet Motor. It is designed for high performance and efficiency, making it suitable for a wide range of applications.

Cooling Type: IC01

The cooling type of this motor is IC01, which means it uses an external fan for air cooling. This allows for better heat dissipation and ensures the motor can operate at optimal temperature, preventing overheating and prolonging its lifespan.

Working System: S1

The working system of this motor is S1, which indicates that it is designed for continuous duty operation. This means it can run continuously without any breaks or interruptions, making it ideal for use in applications that require uninterrupted operation.

Insulation Level: F

The insulation level of this motor is F, which is the highest level of insulation for AC motors. This ensures maximum safety and protection against electric shock, making it suitable for use in various industrial and commercial settings.

Main Parts: Imported

All the main parts of this motor are imported, ensuring high quality and reliability. This includes the stator, rotor, bearings, and other key components. The use of imported parts also contributes to the overall efficiency and performance of the motor.

Rate Output: 1.1~11KW

This motor has a rate output of 1.1~11KW, making it suitable for a wide range of power requirements. It can handle various loads and provide consistent and reliable performance, making it a versatile choice for different applications.

Overall, the Permanent Magnet Synchronous Motor is a high-quality, efficient, and reliable motor that is suitable for a variety of applications. Its external rotor design, use of permanent magnets, and imported parts make it a top choice for industries that require high performance and precision.



Features:

  • Product Name: Permanent Magnet Synchronous Motor
  • Working System: S1
  • Efficiency Level: IE4
  • Rate Output: 1.1~11KW
  • Phase: Three-phase, Three Phase
  • Insulation level: F
  • Magnetic Synchronous Motor
  • PMSM
  • PM Synchronous Motor


Technical Parameters:

Product Name Permanent Magnet Synchronous Motor
Speed Adjust By VFD
Phase Three-phase
Insulation Level F
Working System S1
Efficiency Level IE4
Rated Voltage 380V Or Made To Order
Rated Speed 750r~3000r
Protection Grade IP54/IP55
Category Electric Wrenches
Cooling Type IC01
Motor Type Blushless AC Synchronous Motor
Rotor Type External Rotor Motor
Phase Type Multiphase Permanent Magnet Motor

Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-2 1.5 2.8 3000 88 ≥0.95 3.1 7 2 23
HCP90L-2 2.2 4 3000 89.7 ≥0.95 3.1 7 2 26.5
HCP100L-2 3 5.4 3000 89.7 ≥0.95 3.1 7.5 2 34
HCP112M-2 4 7.2 3000 90.7 ≥0.95 3.1 7.5 2 41
HCP132S-2 5.5 9.8 3000 92 ≥0.95 3.1 7.5 2 60
HCP132M-2 7.5 13.2 3000 92.5 ≥0.95 3.1 7.5 2 63
HCP160M-2 11 19.3 3000 93.5 ≥0.95 3 7.5 2 109
HCP160L-2 15 26 3000 93.8 ≥0.95 3 7.5 2 119
HCP180M-2 22 38 3000 94.7 ≥0.95 3 7.5 1.8 173
HCP180M-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 186
HCP180L-2 37 63.8 3000 95.3 ≥0.95 3 7.5 1.8 218
HCP200L-2 30 51.3 3000 95 ≥0.95 3 7.5 1.8 225
HCP200L-2 37 63.5 3000 95.2 ≥0.95 3 7.5 1.8 245
HCP200L-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 265
HCP225S-2 45 76.5 3000 95.6 ≥0.95 3 7.5 1.8 306
HCP225M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 340
HCP250M-2 55 94 3000 95.8 ≥0.95 3 7.5 1.8 385
HCP280S-2 75 128 3000 96 ≥0.95 3 7.5 1.8 518
HCP280M-2 90 153.3 3000 96.1 ≥0.95 3 7.5 1.8 550
HCP315S-2 110 187.3 3000 96.2 ≥0.95 2.9 7.1 1.8 932
HCP315M-2 132 225 3000 96.2 ≥0.95 2.9 7.1 1.6 982
HCP315L-2 160 272 3000 96.5 ≥0.95 2.9 7.1 1.6 1100
HCP315L-2 180 306 3000 96.5 ≥0.95 2.9 7.1 1.6 1180
HCP315L-2 200 340 3000 96.6 ≥0.95 2.9 7.1 1.6 1280
HCP355M-2 250 426 3000 96.8 ≥0.95 2.9 7.1 1.6 1720
HCP355L-2 315 533 3000 96.8 ≥0.95 2.9 7.1 1.6 1980



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-4 1.1 2.05 1500 88 ≥0.95 3.1 7 2 23
HCP90L-4 1.5 2.78 1500 88.5 ≥0.95 3.1 7 2 27.5
HCP100L-4 2.2 3.98 1500 90.2 ≥0.95 3.1 7.0 2 35
HCP100L-4 3.0 5.4 1500 90.7 ≥0.95 3.1 7.0 2 40
HCP112M-4 4.0 7.2 1500 91 ≥0.95 3.1 7.0 2 45
HCP132S-4 5.5 9.7 1500 92.6 ≥0.95 3.1 7.0 2 63
HCP132M-4 7.5 13.2 1500 93.0 ≥0.95 3 7.0 2 75
HCP160M-4 11.0 19.3 1500 94.0 ≥0.95 3 7.5 2 115
HCP160L-4 15.0 26 1500 94.3 ≥0.95 3 7.5 1.8 135
HCP180M-4 18.5 32 1500 95 ≥0.95 3 7.5 1.8 172
HCP180L-4 22.0 38 1500 95.2 ≥0.95 3 7.5 1.8 185
HCP200L-4 30.0 51.6 1500 95 ≥0.95 3 7.2 1.8 235
HCP225S-4 37.0 63.5 1500 95.8 ≥0.95 3 7.2 1.8 300
HCP225M-4 45.0 77 1500 96.1 ≥0.95 3 7.2 1.8 330
HCP250M-4 55.0 94 1500 96.3 ≥0.95 3 7.2 1.8 410
HCP250M-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 438
HCP280S-4 75.0 128 1500 96.5 ≥0.95 3 7.2 1.8 518
HCP280M-4 90.0 153 1500 97 ≥0.95 3 7.2 1.8 608
HCP280M-4 110.0 187.2 1500 96.7 ≥0.95 3 7.2 1.8 650
HCP280M-4 132.0 223 1500 96.8 ≥0.95 2.9 7.2 1.8 370
HCP315S-4 110.0 187.2 1500 96.7 ≥0.95 2.9 6.9 1.6 935
HCP315L-4 160.0 272 1500 96.8 ≥0.95 2.9 6.9 1.6 1100
HCP315L-4 200.0 340 1500 96.9 ≥0.95 2.9 6.9 1.6 1350
HCP355M-4 250.0 423 1500 97.0 ≥0.95 2.9 6.9 1.6 1900
HCP355L-4 355.0 602 1500 97.1 ≥0.95 2.9 6.9 1.6 2100
HCP355L-4 400.0 678 1500 97.1 ≥0.95 2.9 6.9 1.6 2300



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP90S-6 0.75 1.4 1000 87.2 ≥0.95 3.1 5.5 2 24
HCP90L-6 1.1 2.03 1000 88.7 ≥0.95 3.1 5.5 2 26
HCP100L-6 1.5 2.73 1000 89.8 ≥0.95 3.1 6.5 2 35
HCP112M-6 2.2 3.97 1000 91 ≥0.95 3.1 6.5 2 40
HCP132S-6 3 5.37 1000 92 ≥0.95 3.1 6.5 2 60
HCP132M-6 4 7.08 1000 92.8 ≥0.95 3.1 6.5 2 75
HCP132M-6 5.5 9.68 1000 93.5 ≥0.95 3.1 6.5 2 78
HCP160M-6 7.5 13 1000 94.2 ≥0.95 3 6.5 2 110
HCP160L-6 11 19 1000 94.7 ≥0.95 3 6.5 2 135
HCP180L-6 15 25.8 1000 95.1 ≥0.95 3 7 2 175
HCP200L-6 18.5 31.8 1000 95.5 ≥0.95 3 7 1.8 220
HCP200L-6 22 37.8 1000 95.8 ≥0.95 3 7 1.8 230
HCP225M-6 30 51.3 1000 96.2 ≥0.95 2.9 7 1.8 280
HCP250M-6 37 63.2 1000 96.3 ≥0.95 2.9 7 1.8 380
HCP280S-6 45 76.8 1000 96.4 ≥0.95 2.9 7 1.8 480
HCP280M-6 55 93.8 1000 96.5 ≥0.95 2.9 7 1.8 550
HCP315S-6 75 128 1000 96.5 ≥0.95 2.8 6.7 1.6 870
HCP315M-6 90 153 1000 96.5 ≥0.95 2.8 6.7 1.6 950
HCP315L-6 110 187 1000 96.6 ≥0.95 2.8 6.7 1.6 1130
HCP315L-6 132 223 1000 96.6 ≥0.95 2.8 6.7 1.6 1190
HCP355M-6 160 263 1000 96.6 ≥0.95 2.8 6.7 1.6 1720
HCP355M-6 200 340 1000 96.7 ≥0.95 2.8 6.7 1.6 1900
HCP355L-6 250 425 1000 96.7 ≥0.95 2.8 6.7 1.6 2000
HCP355L-6 315 536 1000 96.7 ≥0.95 2.8 6.7 1.6 2200
HCP355L-6 375 637 1000 96.7 ≥0.95 2.8 6.7 1.6 2300
HCP355L-6 400 680 1000 96.7 ≥0.95 2.8 6.7 1.6 2450



Motor model Rated power Rated current Rated speed Efficiency Power Factor Stall torque Stall current Pull-out torque Weight
KW 380V/A r/min ŋ% COSØ N.M A N.M kg
HCP112M-8 1.5 2.74 750 90 ≥0.95 3.1 6 2 43
HCP132S-8 2.2 4 750 90.4 ≥0.95 3.1 6 2 60
HCP132M-8 3 5.3 750 91.5 ≥0.95 3.1 6 2 75
HCP160M-8 4 7.1 750 92.3 ≥0.95 3.1 6 2 102
HCP160M-8 5.5 9.7 750 93.1 ≥0.95 3.1 6 2 110
HCP160L-8 7.5 13.2 750 93.7 ≥0.95 3.1 6 2 131
HCP180M-8 11 19.2 750 94.2 ≥0.95 3 6.6 2 175
HCP200L-8 15 26 750 94.7 ≥0.95 3 6.6 2 235
HCP225S-8 18.5 32 750 95.1 ≥0.95 3 6.6 1.8 280
HCP225M-8 22 38 750 95.4 ≥0.95 3 6.6 1.8 300
HCP250M-8 30 51.5 750 95.6 ≥0.95 2.9 6.6 1.8 380
HCP280S-8 37 63.5 750 95.8 ≥0.95 2.9 6.6 1.8 480
HCP280M-8 45 77 750 95.8 ≥0.95 2.9 6.6 1.8 560
HCP315S-8 55 94.5 750 95.9 ≥0.95 2.8 6.4 1.6 920
HCP315M-8 75 128.5 750 96 ≥0.95 2.8 6.4 1.6 990
HCP315L-8 90 153 750 96 ≥0.95 2.8 6.4 1.6 1083
HCP315L-8 110 188 750 96 ≥0.95 2.8 6.4 1.6 1180
HCP315L-8 132 226 750 96.1 ≥0.95 2.8 6.4 1.6 1250
HCP355M-8 160 275 750 96.1 ≥0.95 2.8 6.4 1.6 1910
HCP355M-8 180 308 750 96.1 ≥0.95 2.8 6.4 1.6 2020
HCP355L-8 200 343 750 96.1 ≥0.95 2.8 6.4 1.6 2080
HCP355L-8 250 428 750 96.1 ≥0.95 2.8 6.4 1.6 2150
HCP355L-8 280 480 750 96.1 ≥0.95 2.8 6.4 1.6 2230
HCP355L-8 315 540 750 96.1 ≥0.95 2.8 6.4 1.6 2300



IP54/IP55 Protection Grade Permanent Magnet Synchronous Motor With Rated Speed 750r-3000r 0

Applications:

Permanent Magnet Synchronous Motor – JN-HCP-5 by HC

Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month

Overview

The Permanent Magnet Synchronous Motor (PMSM) is a type of electric motor that uses permanent magnets on the rotor instead of windings. This innovative design allows for higher efficiency and energy savings compared to traditional motors.

Application

The JN-HCP-5 PMSM by HC is suitable for a wide range of applications, including:

  • Industrial machinery and equipment
  • Automotive industry
  • Household appliances
  • HVAC systems
  • Renewable energy systems
  • Electric vehicles



Key Features



  • Internal Permanent Magnet Motor design
  • External Rotor Motor configuration
  • Permanent Magnet AC Motor type
  • Energy Saving
  • High Efficiency (IE4 Efficiency Level)
  • Low Noise
  • Cooling Type: IC01
  • Working System: S1
  • Main Parts: Imported
  • Category: Electric Wrenches



Benefits

Using the JN-HCP-5 PMSM in your applications can bring numerous benefits, including:

  • Lower energy consumption and cost savings
  • Improved performance and efficiency
  • Reduced noise and vibrations
  • Longer lifespan and lower maintenance requirements
  • Environmentally friendly



Quality Assurance

All HC products, including the JN-HCP-5 PMSM, go through strict quality control processes and are certified with ISO9001, CCC, and CE. This ensures that the product meets international standards and provides reliable performance.

Ordering Information

To place an order for the JN-HCP-5 PMSM, please contact our sales team with the following information:

  • Model Number
  • Quantity
  • Delivery Address
  • Payment Terms
Our supply ability is 30K PCS per month and the minimum order quantity is 50PCS. We offer flexible payment terms such as L/C and T/T to accommodate our customers' needs.



Packaging and Delivery

The JN-HCP-5 PMSM is packaged securely for transportation to ensure it arrives at your location in perfect condition. We offer different packaging options, including sea pallet, air carton, and express packaging. Our delivery time is 25 days from the date of order confirmation.

About HC

HC is a leading manufacturer and supplier of electric motors, with a focus on innovation and quality. Our products are widely used in various industries and we have a strong track record of customer satisfaction. We strive to provide the best products and services to our customers and are committed to sustainable and responsible business practices.



Customization:

HC Customized Service for Permanent Magnet Synchronous Motor
Product Attributes:
  • Brand Name: HC
  • Model Number: JN-HCP-5
  • Place of Origin: CHINA
  • Certification: ISO9001 CCC CE
  • Minimum Order Quantity: 50PCS
  • Price: Negotiable
  • Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
  • Delivery Time: 25 Days
  • Payment Terms: L/C,T/T
  • Supply Ability: 30K PCS/Month
  • Speed Adjust: By VFD
  • Working System: S1
  • Main Parts: Imported
  • Rated Voltage: 380V Or Made To Order
  • Efficiency Level: IE4
Product Description:

Our HC brand offers customized services for Permanent Magnet Synchronous Motors. Our multiphase permanent magnet motors are designed to provide efficient and reliable performance for various industrial applications. The synchronous permanent magnet motor is a type of blushless AC motor that is known for its high efficiency and low maintenance. With our customized services, you can get a motor that is tailored to your specific needs and requirements.

Customization Options:

Our customized service for Permanent Magnet Synchronous Motors includes the following options:

  • Brand Name: We can customize the brand name of the motor according to your preference.
  • Model Number: You can choose the model number that best fits your application.
  • Certification: We can provide the necessary certifications for your specific industry or market.
  • Minimum Order Quantity: We offer flexible minimum order quantities to meet your business needs.
  • Price: Our prices are negotiable to ensure that you get the best value for your investment.
  • Packaging Details: We offer different packaging options for shipping by sea, air, or express.
  • Delivery Time: Our delivery time is 25 days, but we can also expedite it if needed.
  • Payment Terms: We accept L/C and T/T as payment methods for your convenience.
  • Supply Ability: With a monthly supply of 30K PCS, we can meet your demand for motors.
  • Speed Adjust: Our motors can be adjusted by VFD for precise speed control.
  • Working System: Our motors are designed for continuous operation (S1).
  • Main Parts: We use imported components to ensure the quality and reliability of our motors.
  • Rated Voltage: We offer a standard rated voltage of 380V, but we can also customize it according to your needs.
  • Efficiency Level: Our motors are designed to meet the IE4 efficiency level for energy savings.

Choose HC for customized Permanent Magnet Synchronous Motors that meet your specific requirements and deliver superior performance. Contact us today to discuss your customization needs and get a quote for our products.



Packing and Shipping:

Packaging and Shipping of Permanent Magnet Synchronous Motor

Our Permanent Magnet Synchronous Motors are carefully packaged and shipped to ensure safe delivery to our customers. The packaging materials used are sturdy and durable, providing maximum protection during transportation.

Packaging
  • The motor is first placed in a foam-lined cardboard box to prevent damage from impact and vibrations.
  • Additional cushioning materials, such as bubble wrap or foam, are used to secure the motor inside the box.
  • The box is then sealed with strong packing tape to prevent it from opening during transit.
  • For larger motors, a wooden crate may be used for added protection.
Shipping

We offer various shipping options to meet our customers' needs and ensure timely delivery. All shipments are tracked and insured for added security.

  • For domestic shipments, we use trusted couriers such as FedEx, UPS, and DHL.
  • For international shipments, we work with reliable freight forwarders to ensure smooth customs clearance and timely delivery.
  • Depending on the size and weight of the motor, it may be shipped via air, sea, or ground transportation.
  • Customers can also arrange for their own shipping if preferred.

Upon receiving the motor, customers are advised to carefully inspect the packaging for any signs of damage. If any damage is found, please contact us immediately for assistance.





Tags:

VFD Permanent Magnet Synchronous Motor

380V Permanent Magnet Synchronous Motor

IE4 Permanent Magnet Synchronous Motor
