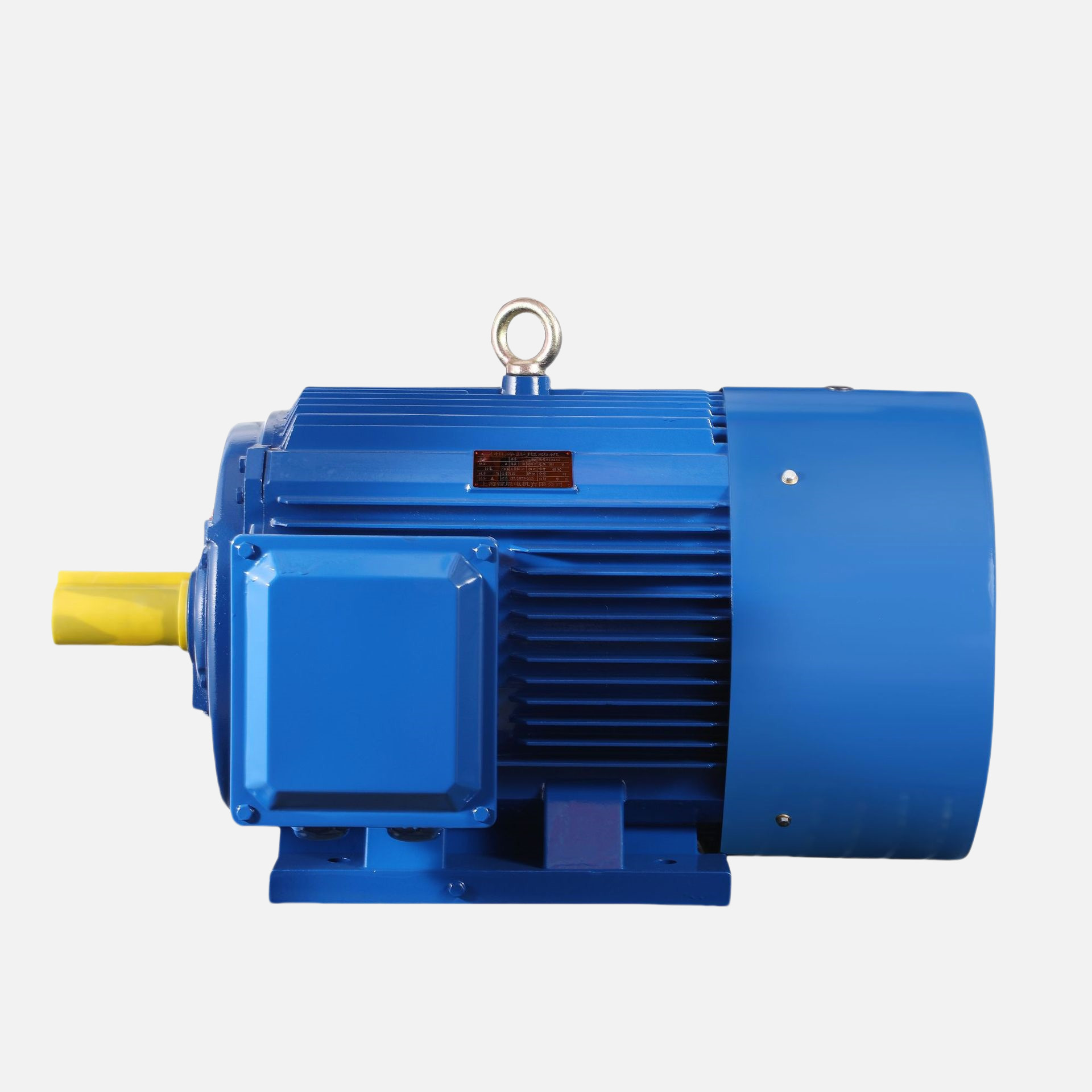

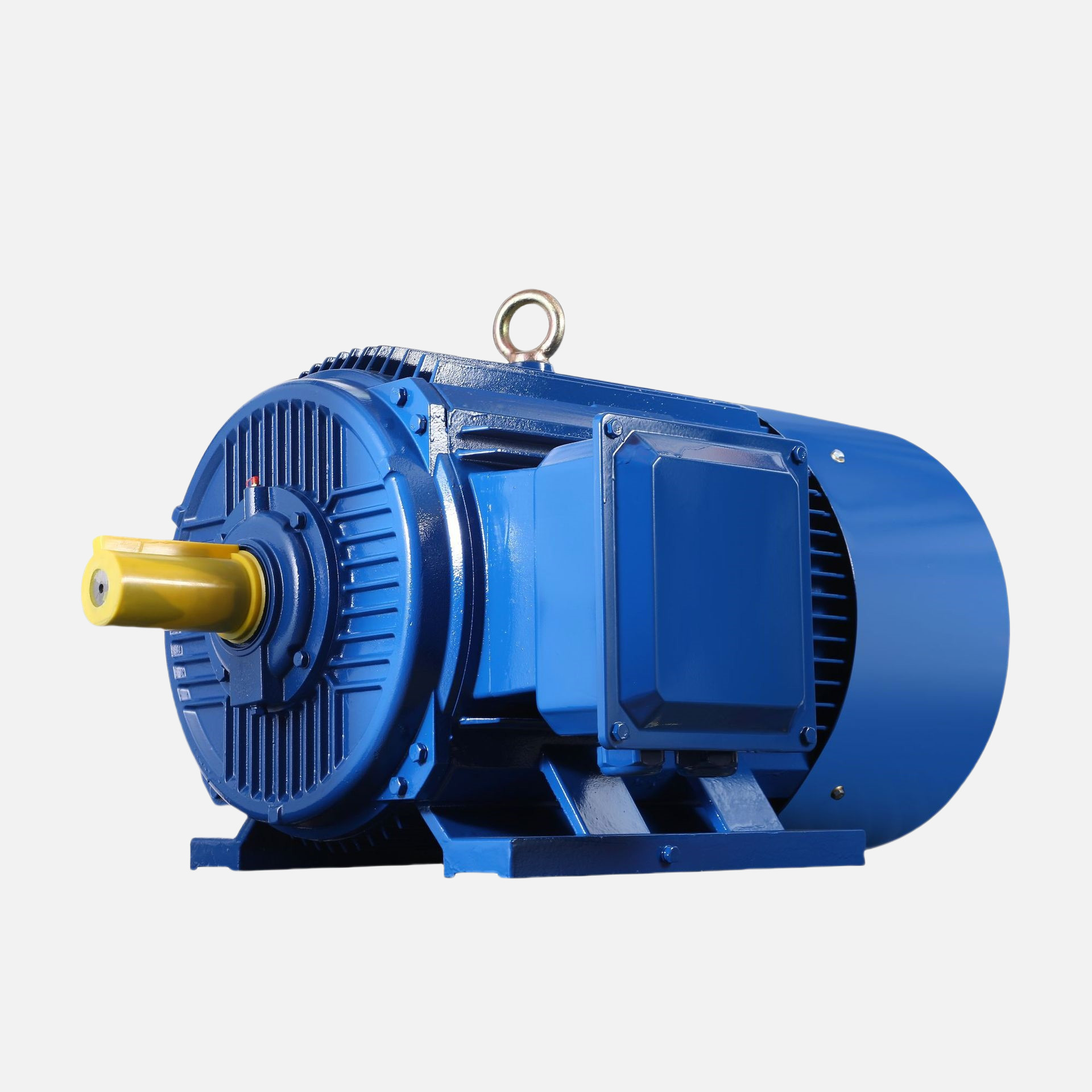

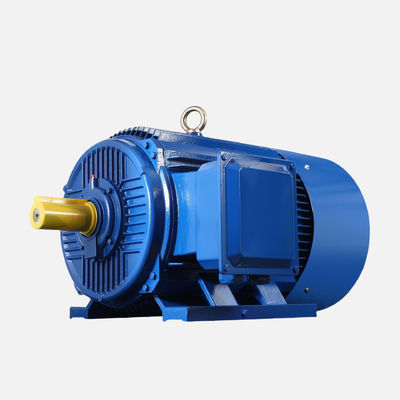

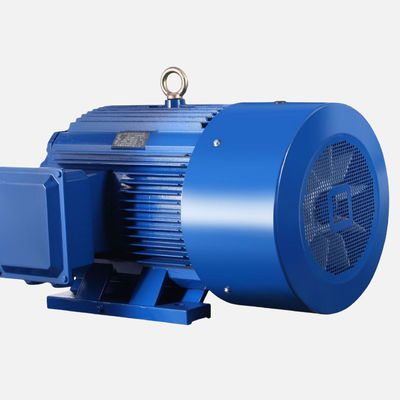

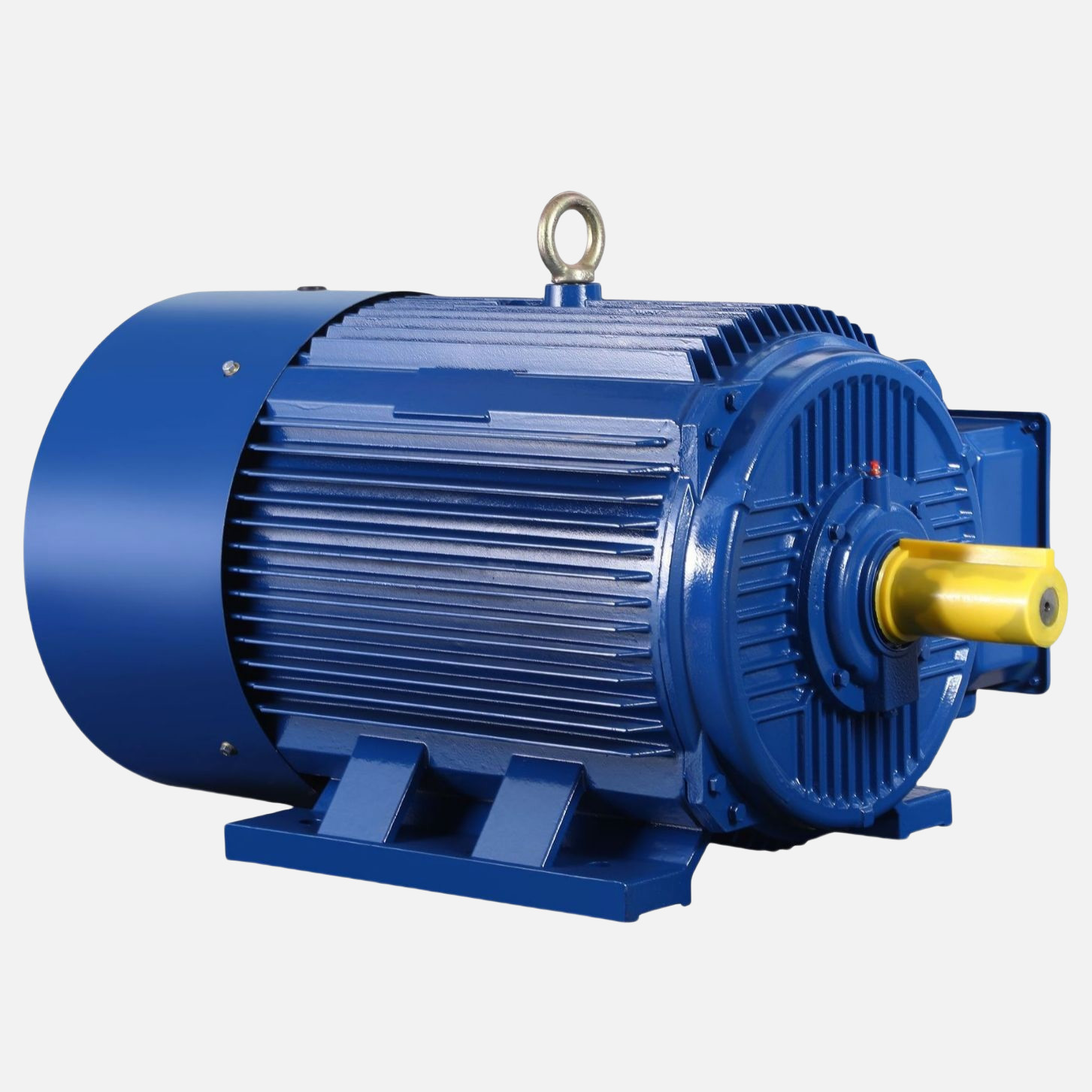

Permanent Magnet Three-Phase Brushless DC Electric Motor For Industrial Applications
| Place of Origin | CHINA |
|---|---|
| Brand Name | HC |
| Certification | ISO9001 CCC CE |
| Model Number | JN-HCP-12 |
| Minimum Order Quantity | 50PCS |
| Price | Negotiable |
| Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time | 25 Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 30K PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Type | IC01 | Type | Permanent Magnet |
|---|---|---|---|
| Phase | Three-phase, Three Phase | Protection Grade | IP54/IP55 |
| Rated Voltage | 380V Or Made To Order. | Speed Adjust | By VFD |
| Category | Electric Wrenches | Rate Output | 1.1~11KW |
| Highlight | IE4 Permanent Magnet Synchronous Motor,VFD Permanent Magnet Synchronous Motor,Speed Adjust brushless permanent magnet motor |
||
Product Description
Permanent Magnet Three-phase Brushless DC Electric Motor for Industrial Applications
Product Description:
Permanent Magnet Synchronous Motor
Permanent Magnet Synchronous Motor (PMSM) is a type of multiphase permanent magnet motor that operates with high efficiency and low noise. It is widely used in various industrial applications due to its superior performance and reliability. The main parts of this motor are imported, ensuring the best quality and durability. It can also be customized with a rated voltage of 380V or made to order according to specific requirements.
The protection grade of this motor is IP54 or IP55, making it suitable for usage in harsh environmental conditions. It can withstand dust, water, and other external factors, ensuring its long-term operation. PMSM is designed to have a working system of S1, which means it is continuously running with a constant load.
With a rate output ranging from 1.1KW to 11KW, PMSM is capable of providing high power and torque for various industrial purposes. Its permanent magnets allow for efficient and reliable operation, reducing energy consumption and saving costs. Compared to traditional AC motors, PMSM has higher efficiency, making it an ideal choice for energy-saving and environmentally friendly applications.
PMSM is also known as Permanent Magnet AC Motor due to its permanent magnets that produce a rotating magnetic field. This allows for smooth and precise control of the motor, making it suitable for applications that require high precision and accuracy. Its multiphase design enables it to produce higher torque and power, making it suitable for heavy-duty operations.
In conclusion, Permanent Magnet Synchronous Motor is a highly efficient and reliable motor that is suitable for various industrial applications. Its imported main parts, customizable voltage, high protection grade, and excellent output make it a top choice for industrial machinery. Its advanced technology and superior performance make it a valuable investment for any business.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Protection Grade: IP54/IP55
- Insulation level: F
- Speed Adjust: By VFD
- Efficiency Level: IE4
- Dimensions: As Customers’ Requirements
- Magnetic Synchronous Motor
- PM Synchronous Motor
- Permanent Magnet AC Motor
Technical Parameters:
| Phase | Three-phase |
|---|---|
| Cooling Type | IC01 |
| Protection Grade | IP54/IP55 |
| Speed Adjust | By VFD |
| Category | Electric Wrenches |
| Type | Permanent Magnet |
| Rate Output | 1.1~11KW |
| Main Parts | Imported |
| Insulation level | F |
| Efficiency Level | IE4 |
| PMSM | Permanent Magnet Synchronous Motor |
|---|---|
| Permanent Magnet AC Motor | Brushless DC Electric Motor |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
| HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
| HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
| HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
| HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
| HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
| HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
| HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
| HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
| HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
| HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
| HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
| HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
| HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
| HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
| HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
| HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
| HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
| HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
| HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
| HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
| HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
| HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
| HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
| HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
| HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
| HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
| HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
| HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
| HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
| HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
| HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
| HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
| HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
| HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
| HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
| HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
| HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
| HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
| HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
| HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
| HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
| HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
| HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
| HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
| HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
| HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
| HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
| HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
| HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
| HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
| HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
| HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
| HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
| HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
| HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
| HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
| HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
| HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
| HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
| HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
| HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
| HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
| HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
| HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
| HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
| HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
| HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
| HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
| HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
| HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
| HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
| HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
| HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg | |
| HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
| HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
| HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
| HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
| HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
| HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
| HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
| HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
| HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
| HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
| HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
| HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
| HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
| HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
| HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
| HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
| HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
| HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
| HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
| HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
| HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
| HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
| HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
| HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
Permanent Magnet Synchronous Motor - HC JN-HCP-5
Product Description
The Permanent Magnet Synchronous Motor, also known as the Blushless AC Synchronous Motor, is a type of electric motor that uses permanent magnets to create a magnetic field. The HC JN-HCP-5 is a model of this motor that is designed and manufactured by HC, a reputable company based in China. This motor is widely used in various industries due to its high efficiency, reliable performance, and advanced features.
Product Attributes
| Brand Name: | HC |
|---|---|
| Model Number: | JN-HCP-5 |
| Place of Origin: | China |
| Certification: | ISO9001, CCC, CE |
| Minimum Order Quantity: | 50PCS |
| Price: | Negotiable |
| Packaging Details: | By Sea Pallet / By Air Carton / By Express Packaging |
| Delivery Time: | 25 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30K PCS/Month |
| Working System: | S1 |
| Efficiency Level: | IE4 |
| Rated Speed: | 750r~3000r |
| Speed Adjust: | By VFD |
| Category: | Electric Wrenches |
Application Scenarios
The HC JN-HCP-5 Permanent Magnet Synchronous Motor is suitable for a wide range of applications in various industries, including:
- Industrial automation: This motor can be used to drive conveyor belts, pumps, fans, compressors, and other equipment in factories and production lines.
- Electric vehicles: With its high efficiency and reliable performance, this motor is ideal for use in electric cars, motorcycles, and other vehicles.
- Renewable energy: The HC JN-HCP-5 can be used in wind turbines and hydroelectric generators to convert mechanical energy into electrical energy.
- Household appliances: This motor can be found in washing machines, air conditioners, refrigerators, and other household appliances, providing efficient and quiet operation.
- Medical equipment: The precise and stable speed control of this motor makes it suitable for use in medical devices such as MRI machines, X-ray machines, and blood pumps.
No matter the application, the Permanent Magnet Synchronous Motor offers superior performance, energy efficiency, and durability, making it a popular choice among various industries.
Customization:
Customized Service for HC JN-HCP-5 Permanent Magnet Synchronous Motor
Brand Name: HC
Model Number: JN-HCP-5
Place of Origin: CHINA
Certification: ISO9001 CCC CE
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 30K PCS/Month
Product Attributes:
- Magnetic Synchronous Motor
- PM Synchronous Motor
- External Rotor Motor
- Insulation level: F
- Phase: Three-phase, Three Phase
- Rated voltage: 380V Or Made To Order.
- Rated speed: 750r~3000r
- Protection Grade: IP54/IP55
Packing and Shipping:
Packaging and Shipping of Permanent Magnet Synchronous Motor
Packaging:
The Permanent Magnet Synchronous Motor is carefully packaged to ensure safe and secure delivery to our customers. The packaging process includes:
- Wrapping the motor with protective materials to prevent any scratches or damage during transportation.
- Placing the motor in a sturdy cardboard box with cushioning material to absorb any impact during shipping.
- Sealing the box with strong tape to prevent it from opening during transit.
- Labeling the box with the product name, specifications, and handling instructions.
Shipping:
We offer various shipping options to our customers depending on their location and preference. These include:
- Standard shipping via land, air, or sea, which usually takes 5-7 business days for domestic delivery and 7-10 business days for international delivery.
- Express shipping via air, which ensures delivery within 2-3 business days for both domestic and international orders.
- Customized shipping options for bulk orders or urgent deliveries.
Once the motor is shipped, customers will receive a shipping confirmation email with a tracking number to track their package's status. Our team also ensures that all necessary documents for international shipping, such as customs forms, are included to avoid any delays or issues at the destination country.
We take great care in packaging and shipping our Permanent Magnet Synchronous Motor to ensure that it reaches our customers in perfect condition. In case of any damage during transit, we have a customer service team available to assist with replacements or refunds.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HC. - Q: What is the model number of this product?
A: The model number of this product is JN-HCP-5. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: What certifications does this product have?
A: This product has ISO9001, CCC, and CE certifications. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 50PCS.
Recommended Products
