Max Working Temperature 550Degree C Alnico Magnet For Motors Sintering Process

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Alnico | Magnetic Properties | High Coercivity, High Remanence, High Energy Product |
---|---|---|---|
Composite | AlNiCo Magnet | Max Working Temperature | 550Degree C |
Maximum Working Temperature | 450-550°C | Applications | Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc. |
Tolerance | ±0.05mm | Density | 7.3-7.5 G/cm3 |
Highlight | Alnico Magnet 550 Degree,Alnico Magnet 450 Degree,alnico bar magnets for Motors |

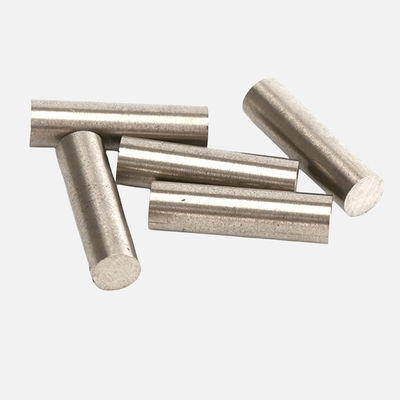

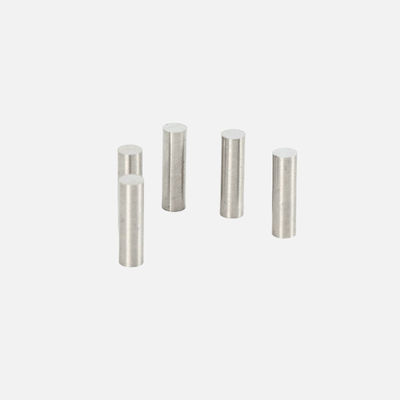

Max Working Temperature 550Degree C Alnico Magnet for Motors Sintering process
Product Description:
Alnico Magnet is a high temperature magnet made from magnetic alloys of aluminum, nickel, and cobalt. It is a durable and versatile magnetic material with a wide range of applications, making it a popular choice for various industries.
Alnico magnets are widely used in sensors, motors, generators, loudspeakers, magnetic separators, and many other devices. Its high magnetic flux density and good corrosion resistance make it suitable for various industrial and commercial applications.
Alnico magnets are made from a combination of aluminum, nickel, cobalt, and iron. The density of Alnico magnets ranges from 7.3-7.5 g/cm3, making them one of the densest and strongest permanent magnets available.
Alnico magnets have a precise tolerance of ±0.05mm, ensuring consistency and accuracy in their performance. They are available in various shapes, including bar, disc, ring, block, and cylinder, giving customers the flexibility to choose the best shape for their specific application.
Alnico magnets have a high magnetic flux density, providing strong magnetic fields and excellent holding force. They also have good temperature stability, making them suitable for high-temperature applications. In addition, Alnico magnets have a long lifespan and can maintain their magnetic properties even under extreme conditions.
Alnico Magnet is a superior magnetic material that offers a combination of high performance, durability, and versatility. With its precise tolerance, various shapes, and wide range of applications, it is an ideal choice for industries and businesses looking for a reliable and powerful magnet solution.
Features:
- Product Name: Alnico Magnet
- Material: Alnico
- Composite: AlNiCo Magnet
- Maximum Working Temperature: 450-550°C
- Tolerance: ±0.05mm
- Manufacturing Process: Casting Or Sintering
- Strong Alnico Magnets
- Magnetic Alloys of Aluminum-Nickel-Cobalt
- Alnico Alloy Magnets
- High Temperature Resistance
- Precise Tolerance
- Durable
Technical Parameters:
Magnetic Properties | Aluminum Nickel Cobalt Magnets, Cost-effective Alnico Magnets, Strong Alnico Magnets |
---|---|
Density | 7.3-7.5 G/cm3 |
Applications | Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc. |
Max Working Temperature | 550°C |
Grade | Alnico 2, Alnico 5, Alnico 8 |
Shape | Bar, Disc, Ring, Block, Cylinder |
Tolerance | ±0.05mm |
Material | Alnico |
Manufacturing Process | Casting Or Sintering |
Maximum Working Temperature | 450-550°C |
Grade | MMPA | Residual Induction | Coercive Force | Max. Energy Product | Max. Working Temperature |
||
Br | Hcb | (BH)max | Tw | ||||
kGs | T | kOe | KA/M | MGOe KJ/m³ | ℃ | ||
LNl0 | ALNICO3 | 6.0 | 0.60 | 0.50 | 40 | 1.25 10 | 550 |
LNG 10 | 6.0 | 0.60 | 0.55 | 44 | 1.25 10 | 550 | |
LNG12 | ALNICO2 | 7.0 | 0.70 | 0.55 | 44 | 1.50 12 | 550 |
LNG 13 | 6.8 | 0.68 | 0.60 | 48 | 1.63 13 | 550 | |
LNG16 | ALNICO4 | 8.0 | 0.80 | 0.60 | 48 | 2.00 16 | 550 |
LNG18 | 9.0 | 0.90 | 0.60 | 48 | 2.25 18 | 550 | |
LNG37 | ALNICOS | 12.0 | 1.20 | 0.60 | 48 | 4.63 37 | 550 |
LNG40 | 12.3 | 1.23 | 0.60 | 48 | 5.00 40 | 550 | |
LNG44 | 12.5 | 1.25 | 0.65 | 52 | 5.50 44 | 550 | |
LNG48 | ALNICOSDG | 12.8 | 1.28 | 0.70 | 56 | 6.00 48 | 550 |
LNG52 | 13.0 | 1.30 | 0.70 | 56 | 6.50 52 | 550 | |
LNG56 | ALNICO5—7 | 13.0 | 1.30 | 0.72 | 58 | 7.00 56 | 550 |
LNG60 | 13.3 | 1.33 | 0.75 | 60 | 7.50 60 | 550 | |
LNGT28 | ALNICO6 | 10.0 | 1.00 | 0.70 | 56 | 3.50 28 | 550 |
LNGT30 | 11.0 | 1.10 | 0.70 | 56 | 3.75 30 | 550 | |
LNGT18 | ALNICO8 | 5.8 | 0.58 | 1.00 | 80 | 2.25 18 | 550 |
LNGT32 | 8.0 | 0.80 | 1.zs | 100 | 4.00 32 | 550 | |
LNGT38 | 8.0 | 0.80 | 1.38 | 110 | 4.75 38 | 550 | |
LNGT44 | 8.5 | 0.85 | 1.45 | lls | 5.50 44 | 550 | |
LNGT48 | ALNICO8HE | 9.0 | 0.90 | 1.50 | 120 | 6.00 48 | 550 |
LNGT60 | ALNICO9 | 9.0 | 0.90 | 1.38 | 110 | 7.50 60 | 550 |
LNGT72 | 10.5 | 1.05 | 1.40 | 112 | 9.00 72 | 550 | |
LNGT80 | 10.8 | 1.08 | 1.50 | 120 | 10.00 80 | 550 | |
LNGT88 | 11.0 | 1.10 | 1.45 | 115 | 11.00 88 | 550 | |
LNGT96 | 11.5 | 1.15 | 1.48 | 118 | 12.00 96 | 550 | |
LNGT36J | ALNICO8HC | 7.0 | 0.70 | 1.75 | 140 | 4.50 36 | 550 |
LNGT40J | 7.0 | 0.70 | 1.75 | 140 | 5.00 40 | 550 | |
LNGT44J | 7.5 | 0.75 | 1.75 | 140 | 5.50 44 | 550 | |
LNGT48J | 8.0 | 0.80 | 1.82 | 145 | 6.00 48 | 550 | |
LNGT52J | 8.5 | 0.85 | 1.75 | 140 | 6.50 52 | 550 |
Grade | MMPA | Residual Induction | Coercive Force | Max. Energy Product | Max. Working Temperature |
||
Br | Hcb | (BH)max | Tw | ||||
kGs | T | kOe | KA/M | MGOe KJ/m³ | ℃ | ||
FLN8 | S.ALNICO3 | 5.0 | 0.50 | 0.50 | 40 | 1.00 8 | 450 |
FLNG12 | S.ALNICO2 | 6.5 | 0.65 | 0.60 | 48 | 1.50 12 | 450 |
FLNGT18 | S.ALNICO7 | 6.0 | 0.60 | 1.13 | 90 | 2.20 18 | 450 |
FLNG34 | S.ALNICO5 | 12.0 | 1.20 | 0.60 | 48 | 4.25 34 | 450 |
FLNGT28 | S.ALNICO6 | 10.5 | 1.05 | 0.70 | 56 | 3.50 28 | 450 |
FLNGT38 | S.ALNICO8 | 8.0 | 0.80 | 1.50 | 120 | 4.75 38 | 450 |
FLNGT42 | S.ALNICO8 | 8.8 | 0.88 | 1.50 | 120 | 5.25 42 | 450 |
FLNGT33J | S.ALNICO8HC | 7.0 | 0.70 | 1.75 | 140 | 4.13 33 | 450 |
Applications:
Are you looking for reliable and cost-effective permanent alnico magnetic materials? Look no further than JN-AL-3, the leading brand of alnico magnets manufactured in China. With ISO9001 certification and a minimum order quantity of 1000 pcs, we offer top-quality magnets that are perfect for various industrial applications.
JN-AL-3 alnico magnets are widely used in a variety of industries, thanks to their strong magnetic properties and high working temperature. Some common applications include:
- Sensors – Alnico magnets are commonly used in sensors for their ability to detect and measure magnetic fields.
- Generators – The strong magnetic field of alnico magnets makes them ideal for use in generators, helping to convert mechanical energy into electrical energy.
- Loudspeakers – Alnico magnets are used in loudspeakers to produce high-quality sound due to their ability to maintain their magnetic strength over time.
- Motors – Alnico magnets are commonly used in motors for their strong magnetic field and high temperature resistance, making them suitable for heavy-duty applications.
- Magnetic Separators – Alnico magnets are used in magnetic separators to separate materials based on their magnetic properties, making them important in industries such as mining and recycling.
JN-AL-3 alnico magnets are available in various shapes to suit different applications. Some of the common shapes include bar, disc, ring, block, and cylinder. These magnets are manufactured using either casting or sintering processes, depending on the specific requirements of the application.
- Brand Name: JN
- Model Number: JN-AL-3
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1000 pcs
- Price: Negotiable
- Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
- Delivery Time: 25 Days
- Payment Terms: L/C, T/T
- Supply Ability: 2000K pcs/month
- Max Working Temperature: 550°C
- Tolerance: ±0.05mm
With JN-AL-3 alnico magnets, you can expect high-quality and reliable performance at a competitive price. Contact us today to place your order and experience the power of industrial alnico magnets!
Customization:
At JN, we specialize in providing powerful Alnico magnets for various industrial applications. Our Alnico alloy magnets are made from high-quality magnetic alloys of aluminum, nickel, and cobalt, ensuring superior performance and durability.
With our customized services, we can tailor our Alnico magnets to meet your specific requirements and applications. Whether you need a specific shape, size, or grade of magnet, we have the capabilities to deliver it to you.
Our team of experts will work closely with you to understand your needs and provide you with the best solutions. We use advanced manufacturing processes such as casting or sintering to ensure the highest quality of our Alnico magnets.
Choose JN for all your Alnico magnet needs and experience the difference of our customized services. Contact us today to learn more about our products and services.
FAQ:
- Q: What is the brand name of this product? A: The brand name is JN.
- Q: What is the model number of this product? A: The model number is JN-AL-3.
- Q: Where is this product made? A: This product is made in China.
- Q: Does this product have any certifications? A: Yes, it is certified by ISO9001.
- Q: What is the minimum order quantity for this product? A: The minimum order quantity is 1000PCS.
- Q: Is the price negotiable for this product? A: Yes, the price is negotiable.
- Q: How is this product packaged? A: It can be packaged by sea pallet, air carton, or express packaging.
- Q: What is the delivery time for this product? A: The delivery time is 25 days.
- Q: What are the accepted payment terms for this product? A: The accepted payment terms are L/C and T/T.
- Q: What is the supply ability for this product? A: The supply ability is 2000K PCS per month.
