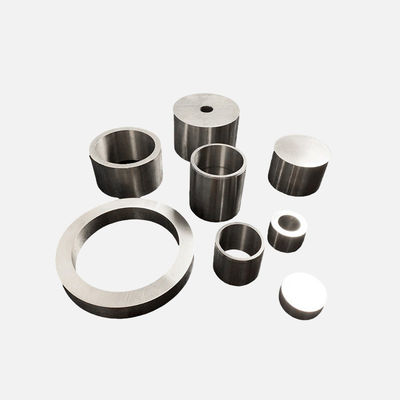

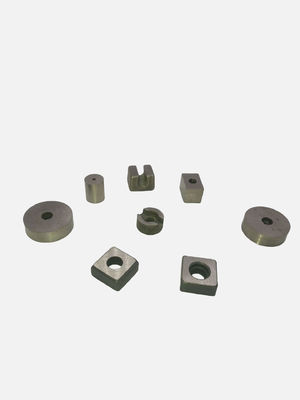

Alnico 2 Magnets for High Temperature Applications Maximum Working Temperature of 450-550°C

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xComposite | AlNiCo Magnet | Material | Alnico |
---|---|---|---|
Magnetic Properties | High Coercivity, High Remanence, High Energy Product | Applications | Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc. |
Manufacturing Process | Casting Or Sintering | Maximum Working Temperature | 450-550°C |
Tolerance | ±0.05mm | Density | 7.3-7.5 G/cm3 |
Highlight | High Temperature Alnico Magnet,Alnico Magnet 450C,Alnico 2 Magnets 550C |
Alnico 2 Magnets for High Temperature Applications Maximum Working Temperature of 450-550°C
Product Description:
If you're looking for a high-quality, powerful magnet that can withstand extreme conditions, look no further than the Alnico magnet. Made from a composite of Aluminum, Nickel, and Cobalt, these permanent magnets are known for their exceptional strength and durability. With a tolerance of ±0.05mm, these magnets are the perfect choice for precision applications.
The Alnico magnet is a type of permanent magnet made from a composite of Aluminum (Al), Nickel (Ni), and Cobalt (Co). This unique combination of materials gives the magnet its name - AlNiCo. These magnets are known for their high magnetic strength and are commonly used in various industrial and commercial applications.
One of the key attributes of Alnico magnets is their exceptional magnetic properties. With a high coercivity, these magnets have a strong resistance to demagnetization, making them ideal for use in high-temperature applications. They also have a high remanence, which means they can retain their magnetization even after being exposed to extreme temperatures or external magnetic fields. Additionally, Alnico magnets have a high energy product, which makes them ideal for use in applications that require a strong magnetic field.
The density of Alnico magnets is another important factor to consider when choosing a magnet for your application. Alnico magnets have a density of 7.3-7.5 G/cm3, which is relatively high compared to other types of magnets. This high density contributes to their strong magnetic properties and makes them perfect for applications that require a compact and powerful magnet.
Alnico magnets are manufactured using two primary processes - casting and sintering. In the casting process, the molten metal is poured into a mold and cooled to form the desired shape. This process is commonly used for producing magnets with complex shapes and sizes. Sintering, on the other hand, involves pressing the metal powder into a die and then heating it to fuse the particles together. This process is used for producing magnets with a more uniform and consistent structure.
In conclusion, Alnico magnets are highly versatile and powerful magnets that are perfect for a wide range of applications. Their unique composition and exceptional magnetic properties make them a popular choice in industries such as automotive, aerospace, and electronics. So if you're in need of a reliable and powerful magnet, choose the Alnico magnet - the ultimate choice for magnetic applications.
Features:
- Product Name: Alnico Magnet
- Applications: Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc.
- Max Working Temperature: 550 Degree C
- Shape:
- Bar
- Disc
- Ring
- Block
- Cylinder
- Grade:
- Alnico 2
- Alnico 5
- Alnico 8
- Material: Alnico - Permanent Alnico Magnetic Materials, Magnetic Alloys of Aluminum-Nickel-Cobalt
- Features:
- Powerful Alnico Magnets
- High magnetic strength and coercivity
- Excellent temperature stability
- Excellent corrosion resistance
- Wide range of shapes and sizes available
Technical Parameters:
Technical Parameters | Value |
---|---|
Applications | Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc. |
Max Working Temperature | 550°C |
Manufacturing Process | Casting or sintering |
Maximum Working Temperature | 450-550°C |
Material | Alnico |
Tolerance | ±0.05mm |
Magnetic Properties | High coercivity, High remanence, High energy product |
Grade | Alnico 2, Alnico 5, Alnico 8 |
Density | 7.3-7.5 g/cm3 |
Shape | Bar, Disc, Ring, Block, Cylinder |
Key Features | Descriptions |
---|---|
Product Name | Permanent Alnico Magnetic Materials |
Material | Aluminum Nickel Cobalt (Alnico) |
Cost-effectiveness | Cost-effective Alnico Magnets |
Grade | MMPA | Residual Induction | Coercive Force | Max. Energy Product | Max. Working Temperature |
||
Br | Hcb | (BH)max | Tw | ||||
kGs | T | kOe | KA/M | MGOe KJ/m³ | ℃ | ||
LNl0 | ALNICO3 | 6.0 | 0.60 | 0.50 | 40 | 1.25 10 | 550 |
LNG 10 | 6.0 | 0.60 | 0.55 | 44 | 1.25 10 | 550 | |
LNG12 | ALNICO2 | 7.0 | 0.70 | 0.55 | 44 | 1.50 12 | 550 |
LNG 13 | 6.8 | 0.68 | 0.60 | 48 | 1.63 13 | 550 | |
LNG16 | ALNICO4 | 8.0 | 0.80 | 0.60 | 48 | 2.00 16 | 550 |
LNG18 | 9.0 | 0.90 | 0.60 | 48 | 2.25 18 | 550 | |
LNG37 | ALNICOS | 12.0 | 1.20 | 0.60 | 48 | 4.63 37 | 550 |
LNG40 | 12.3 | 1.23 | 0.60 | 48 | 5.00 40 | 550 | |
LNG44 | 12.5 | 1.25 | 0.65 | 52 | 5.50 44 | 550 | |
LNG48 | ALNICOSDG | 12.8 | 1.28 | 0.70 | 56 | 6.00 48 | 550 |
LNG52 | 13.0 | 1.30 | 0.70 | 56 | 6.50 52 | 550 | |
LNG56 | ALNICO5—7 | 13.0 | 1.30 | 0.72 | 58 | 7.00 56 | 550 |
LNG60 | 13.3 | 1.33 | 0.75 | 60 | 7.50 60 | 550 | |
LNGT28 | ALNICO6 | 10.0 | 1.00 | 0.70 | 56 | 3.50 28 | 550 |
LNGT30 | 11.0 | 1.10 | 0.70 | 56 | 3.75 30 | 550 | |
LNGT18 | ALNICO8 | 5.8 | 0.58 | 1.00 | 80 | 2.25 18 | 550 |
LNGT32 | 8.0 | 0.80 | 1.zs | 100 | 4.00 32 | 550 | |
LNGT38 | 8.0 | 0.80 | 1.38 | 110 | 4.75 38 | 550 | |
LNGT44 | 8.5 | 0.85 | 1.45 | lls | 5.50 44 | 550 | |
LNGT48 | ALNICO8HE | 9.0 | 0.90 | 1.50 | 120 | 6.00 48 | 550 |
LNGT60 | ALNICO9 | 9.0 | 0.90 | 1.38 | 110 | 7.50 60 | 550 |
LNGT72 | 10.5 | 1.05 | 1.40 | 112 | 9.00 72 | 550 | |
LNGT80 | 10.8 | 1.08 | 1.50 | 120 | 10.00 80 | 550 | |
LNGT88 | 11.0 | 1.10 | 1.45 | 115 | 11.00 88 | 550 | |
LNGT96 | 11.5 | 1.15 | 1.48 | 118 | 12.00 96 | 550 | |
LNGT36J | ALNICO8HC | 7.0 | 0.70 | 1.75 | 140 | 4.50 36 | 550 |
LNGT40J | 7.0 | 0.70 | 1.75 | 140 | 5.00 40 | 550 | |
LNGT44J | 7.5 | 0.75 | 1.75 | 140 | 5.50 44 | 550 | |
LNGT48J | 8.0 | 0.80 | 1.82 | 145 | 6.00 48 | 550 | |
LNGT52J | 8.5 | 0.85 | 1.75 | 140 | 6.50 52 | 550 |
Grade | MMPA | Residual Induction | Coercive Force | Max. Energy Product | Max. Working Temperature |
||
Br | Hcb | (BH)max | Tw | ||||
kGs | T | kOe | KA/M | MGOe KJ/m³ | ℃ | ||
FLN8 | S.ALNICO3 | 5.0 | 0.50 | 0.50 | 40 | 1.00 8 | 450 |
FLNG12 | S.ALNICO2 | 6.5 | 0.65 | 0.60 | 48 | 1.50 12 | 450 |
FLNGT18 | S.ALNICO7 | 6.0 | 0.60 | 1.13 | 90 | 2.20 18 | 450 |
FLNG34 | S.ALNICO5 | 12.0 | 1.20 | 0.60 | 48 | 4.25 34 | 450 |
FLNGT28 | S.ALNICO6 | 10.5 | 1.05 | 0.70 | 56 | 3.50 28 | 450 |
FLNGT38 | S.ALNICO8 | 8.0 | 0.80 | 1.50 | 120 | 4.75 38 | 450 |
FLNGT42 | S.ALNICO8 | 8.8 | 0.88 | 1.50 | 120 | 5.25 42 | 450 |
FLNGT33J | S.ALNICO8HC | 7.0 | 0.70 | 1.75 | 140 | 4.13 33 | 450 |
Applications:
Brand Name: JN
Model Number: JN-AL-3
Place of Origin: CHINA
Certification: ISO9001
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C,T/T
Supply Ability: 2000K PCS/Month
Alnico Magnet is a type of permanent magnet that is widely used in various industrial and commercial applications. It is made from a combination of aluminum, nickel, and cobalt, hence the name Alnico. This material offers high magnetic energy product and excellent temperature stability, making it the ideal choice for many industries.
Alnico Magnet is known for its durability and long-lasting magnetic properties. It is resistant to corrosion and can withstand high temperatures, making it suitable for use in harsh environments. This material is also highly versatile, with various shapes available such as bar, disc, ring, block, and cylinder, making it suitable for a wide range of applications.
Alnico Magnet is widely used in various industries such as automotive, aerospace, electronics, and manufacturing. It is commonly used in sensors, motors, generators, loudspeakers, and magnetic separators. Its strong magnetic field and stable properties make it an essential component in many industrial and commercial products.
Alnico Magnet is known for its high coercivity, high remanence, and high energy product. This means that it has a strong magnetic field and can retain its magnetism even when exposed to high temperatures. It also has excellent magnetic stability, making it a reliable choice for many applications.
Our Alnico Magnets are manufactured in China and are ISO9001 certified, ensuring that they meet the highest quality standards. We have a minimum order quantity of 1000PCS and offer competitive prices. Our magnets are carefully packaged to ensure safe delivery and we have a fast delivery time of 25 days.
Alnico Magnet, with its durable and versatile nature, superior magnetic properties, and wide range of applications, is the perfect solution for all your magnetic needs. Trust JN Alnico Magnet to provide you with high-quality, reliable, and long-lasting magnetic materials for your industrial and commercial use. Contact us now to place your order and experience the power of Alnico Magnet.
Customization:
Brand Name: JN
Model Number: JN-AL-3
Place of Origin: CHINA
Certification: ISO9001
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 2000K PCS/Month
Applications: Sensors, Motors, Generators, Loudspeakers, Magnetic Separators, Etc.
Max Working Temperature: 550Degree C
Grade: Alnico 2, Alnico 5, Alnico 8
Density: 7.3-7.5 G/cm3
Material: Alnico
Customization Options:
- High Temperature Alnico Magnets: Our Alnico magnets can withstand high temperatures up to 550Degree C, making them suitable for use in various industries.
- Durable Alnico Magnetic Material: We use high-quality Alnico material to ensure the durability and longevity of our magnets, making them a cost-effective choice for our customers.
- Aluminum Nickel Cobalt Magnets: Our Alnico magnets are composed of aluminum, nickel, and cobalt, providing strong magnetic properties and excellent corrosion resistance.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is JN.
- Q: What is the model number of this product?
- A: The model number of this product is JN-AL-3.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: Is this product certified?
- A: Yes, this product is certified with ISO9001.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1000PCS.
- Q: Can the price of this product be negotiated?
- A: Yes, the price of this product is negotiable.
- Q: How is this product packaged?
- A: This product can be packaged by sea pallet, air carton, or express packaging.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is 25 days.
- Q: What are the payment terms for this product?
- A: The payment terms for this product are L/C and T/T.
- Q: What is the supply ability of this product?
- A: The supply ability of this product is 2000K PCS/month.
