NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet

  • NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet
  • NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet
  • NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet
  • NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-1
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grand Available N35-N52 Coated Ni,Ni-Cu-Ni,epoxy Or Others
Tolerance +/- 0.05mm - +/- 0.1mm Type Of Magnet NdFeB Magnets
Plant Nickel - Copper - Nickel Inventory 29700PCS
Working Temp 80-220 Centigrade Shape Magnet With Hole
Category Neodymium Magnets
Highlight

ndfeb rare earth magnet material

,

counterbore ndfeb rare earth magnet

,

counterbore rare earth magnet material
Leave a Message
Product Description

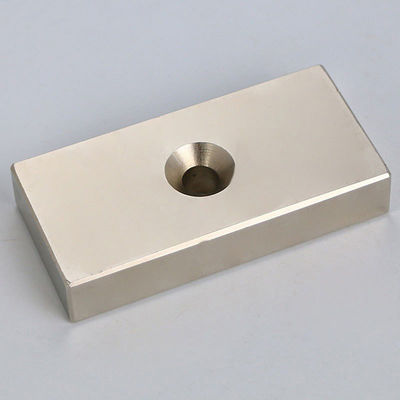

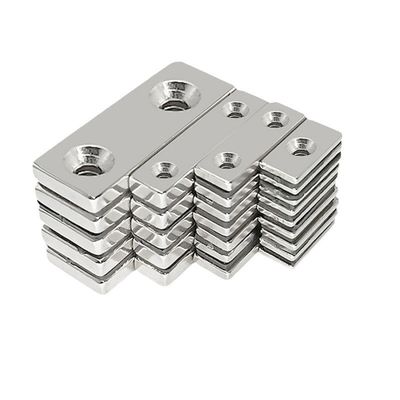

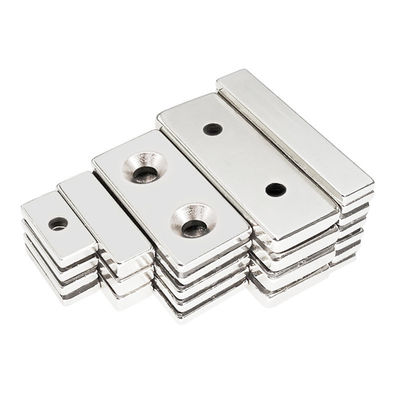

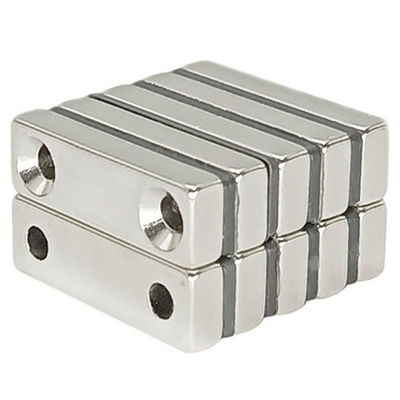

NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet

Product Description:

NdFeB Magnet

NdFeB Magnet is a type of permanent magnet made from the combination of Neodymium, Iron, and Boron. It is also known as Neodymium Permanent Magnet or Rare Earth Magnet. NdFeB Magnet is widely used in various industries due to its strong magnetic properties.

Product Overview

Inventory: 29700PCS

Sample: Available

Working Temperature: 80-220 Centigrade

Type of Magnet: NdFeB Permanent Magnet

Tolerance: +/- 0.05mm - +/- 0.1mm

With an inventory of 29700PCS, NdFeB Magnet is readily available for purchase. Customers can also request for a sample to test its quality before making a bulk purchase. This type of magnet has a working temperature range of 80-220 Centigrade, making it suitable for use in various environments.

As a type of NdFeB Permanent Magnet, it is made from a combination of the rare earth element Neodymium, Iron, and Boron. This results in a strong magnetic material with high coercivity and high energy product, making it one of the most powerful magnets available in the market.

The tolerance of NdFeB Magnet ranges from +/- 0.05mm to +/- 0.1mm, ensuring precision and accuracy in its use. This makes it a reliable choice for applications that require strict dimensional requirements.

Applications

NdFeB Magnet is widely used in various industries such as electronics, automotive, medical, and renewable energy. Its strong magnetic properties make it suitable for use in motors, generators, sensors, magnetic separators, and magnetic couplings. It is also used in consumer electronics such as headphones, speakers, and hard drives.

Advantages

There are several advantages of using NdFeB Magnet:

  • Strong magnetic properties: NdFeB Magnet has a high energy product, making it one of the strongest magnets available.
  • High coercivity: This magnet has a high resistance to demagnetization, making it suitable for use in various environments.
  • Cost-effective: Despite its strong magnetic properties, NdFeB Magnet is relatively more affordable compared to other types of magnets.
  • Compact size: Due to its high energy product, NdFeB Magnet can be made in smaller sizes, making it ideal for applications with limited space.
Care and Maintenance

To ensure the longevity and effectiveness of NdFeB Magnet, it is important to follow these care and maintenance tips:

  • Handle with care: NdFeB Magnet is a brittle material, so it should be handled with care to avoid any damage.
  • Store in a dry place: This magnet is susceptible to corrosion in humid environments, so it should be stored in a dry place.
  • Avoid extreme temperatures: While NdFeB Magnet has a high working temperature range, it should be kept away from extreme temperatures to avoid any damage.
  • Do not heat or drill: NdFeB Magnet should not be heated or drilled as it can affect its magnetic properties.
Conclusion

In conclusion, NdFeB Magnet is a powerful and versatile magnet that can be used in various industries. Its strong magnetic properties, high coercivity, and compact size make it a reliable choice for different applications. With proper care and maintenance, NdFeB Magnet can last for a long time and provide efficient and effective performance.


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

NdFeB rare earth magnet magnet with hole special-shaped counterbore shape square Ni coating strong magnet 0
