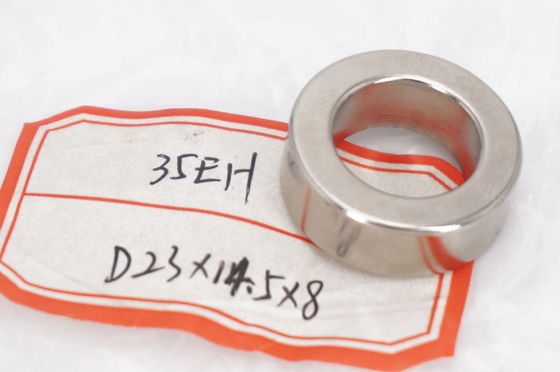

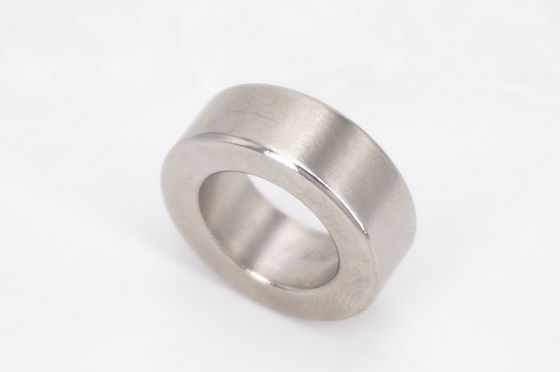

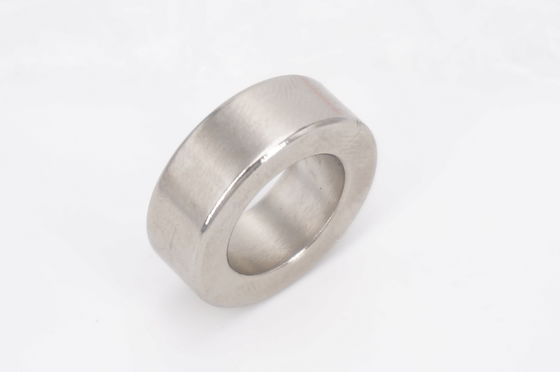

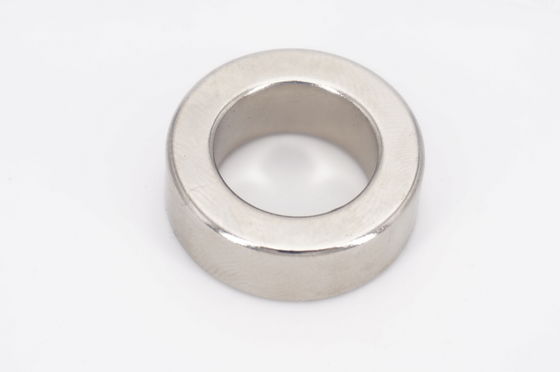

Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC

  • Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC
  • Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC
  • Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC
  • Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC
  • Custom NdFeB Magnet Sintering Process For Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-41
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Magnetization Methods Axial Single-Pole /Radial Multipolar /Radial Radiate Ring Type Of Magnet NdFeB Magnets
Raw Material NdFeB Rare Earth Materials Tensile Strength Resists Centrifugal Forces Of No Less Than 110,000 RPM
Coating Nickel Zn Ni-cu-ni Process Sintering
Application High-speed Motor Sewing Machine High-speed Hair Dryer High-efficiency Vacuum Cleaner Max Working Temp 200ºC
Category Neodymium Magnets
Highlight

Industrial NdFeB Magnet

,

35EH NdFeB Magnet

,

Custom NdFeB Magnet
Leave a Message
Product Description

Custom NdFeB Magnet Sintering Process for Industrial 35EH Ni-Cu-Ni Coating Max Working Temp 200 ºC

Product Description:

The NdFeB Magnet comes in different grades, with the most common ones being N35-N55, 42M-54M, 40H-54H, 30SH-52SH, 28UH-48UH, 28EH-38EH, and 28AH-40AH. These grades refer to the maximum energy product of the magnet, which determines its magnetic strength. The higher the grade, the stronger the magnet.

The NdFeB Magnet is produced through a process called sintering, which involves compacting fine NdFeB powder into a mold and then heating it until it solidifies. This process results in a magnet with high magnetic properties and excellent mechanical strength.

The NdFeB Magnet is widely used in various applications, including high-speed motors, sewing machines, high-speed hair dryers, and high-efficiency vacuum cleaners. These magnets are also used in other applications such as magnetic resonance imaging (MRI), aerospace, and renewable energy.

If you are looking for a high-quality magnet with excellent magnetic strength and performance, the NdFeB Magnet is an excellent choice. Its unique properties and wide range of applications make it one of the most popular and widely used magnets today.



Features:

  • Product Name: NdFeB Magnet
  • Process: Sintering
  • Raw Material: NdFeB Rare Earth Materials
  • Max Working Temp: 200ºC
  • Coating: Nickel Epoxy Zn Ni-cu-ni
  • Tolerance: +/- 0.02 Mm
  • Features:
    • Super Strong Magnet
    • NdFeB Permanent Magnet
    • Rare Earth Magnet


Applications:

JN-ND-41 is a type of NdFeB magnet, also known as a neodymium rare earth magnet or neodymium permanent magnet. It is a strong magnetic material that is widely used in various industries due to its superior magnetic properties.

The JN-ND-41 magnet is produced in China and is certified with ISO9001, ensuring its quality and reliability. The minimum order quantity is 1000PCS, and the price is negotiable. The packaging details include by sea pallet, by air carton or by express packaging. The delivery time is 21 days, and the payment terms are L/C or T/T. The supply ability is 1 000K PCS/month.

The JN-ND-41 magnet has a maximum working temperature of 200ºC and can resist centrifugal forces of no less than 110,000 RPM. Its coating is  Ni-cu-ni, which provides protection against corrosion and oxidation.

The size of the JN-ND-41 magnet can be customized according to the customer's needs. Its versatility allows it to be used in various occasions and scenarios, including:

  • Electronics industry:  magnets are used in speakers, headphones, microphones, and other audio equipment.
  • Automotive industry:  magnets are used in motors, generators, and sensors of hybrid and electric vehicles.
  • Medical industry:  magnets are used in MRI machines, pumps, and other medical equipment.
  • Energy industry:  magnets are used in wind turbines, water turbines, and other renewable energy generators.
  • Industrial industry:  magnets are used in various industrial machinery and equipment, such as separators, filters, and sensors.

In conclusion, JN-ND-41 is a high-quality NdFeB magnet that can be used in various occasions and scenarios due to its superior magnetic properties, custom size, and versatile applications. Its production in China and certification with ISO9001 ensure its quality and reliability, and its packaging and delivery options provide convenience for customers.



Customization:

Customize your order with your preferred size and coating which includes Nickel, Epoxy, Zn, and Ni-cu-ni. Our packaging details include By Sea Pallet, By Air Carton, and By Express Packaging. We have a minimum order quantity of 1000PCS and our price is negotiable. Our delivery time is 21 days and we accept payment terms of L/C and T/T. We have a supply ability of 1,000K PCS per month.

Place your order with JN, a trusted brand from CHINA with years of experience in the magnet industry.



Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm2
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220

≥7.5
