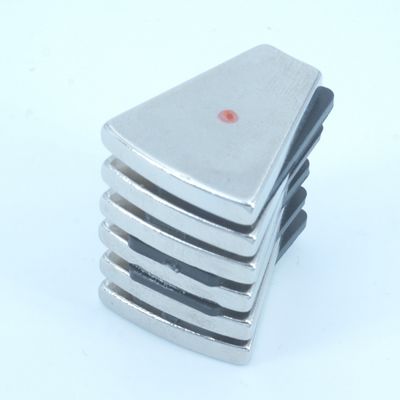

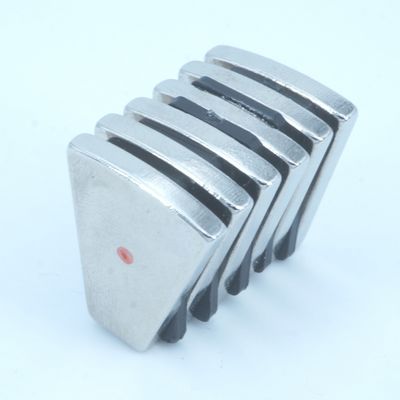

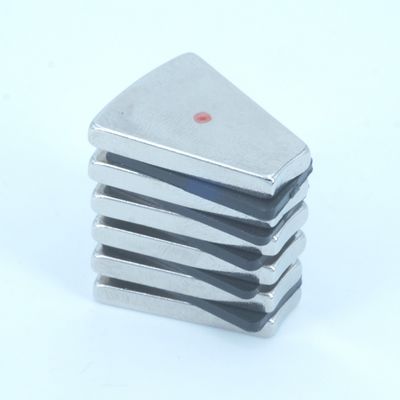

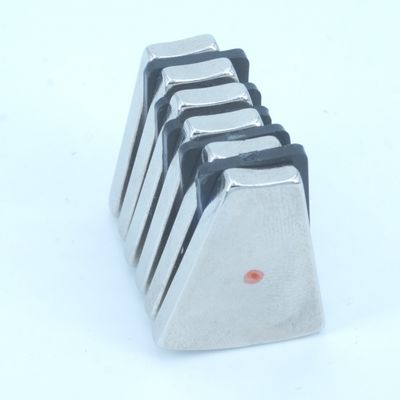

Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine

  • Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine
  • Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine
  • Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine
  • Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number 109WX
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 15~18 Days
Payment Terms L/C, T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Micro Motor Magnet For Sewing Machine Application Industry Sewing Machinery
Application Micro-Motor Process Sintering
Materials NdFeB Rare Earth Materials Shape Sector
Size Made To Order Coating Ni
Category Neodymium Magnets
Highlight

ndfeb n42 ni coated

,

motor ndfeb n35

,

motor ndfeb n42
Leave a Message
Product Description

NdFeB rare earth magnet Micro motor magnet for sewing machine

NdFeB rare earth magnet Micro motor magnet for sewing machine sintering process Ni coated



Our NdFeB magnets are used in Micro motors because our NdFeB magnets have the following advantages:

1. The coating is very smooth, the resistance is small, wear-resistant and high-temperature resistant;

2. The remanence is large, the strength is high, the working temperature is high, and it is not easy to demagnetize;

3. This material is the most cost-effective material among all the magnet materials on the market.


Our annual production capacity is 3000 tons.
The company with China’s No.1 rare earth miner Chinalco has a strategic partnership, with a complete production chain and a sound quality assurance system.



Customized needs
To Order, please provide the following key requirements:
1. Performance requirements (such as Remanence Br, Intrinsic Coercivity Hcj, Working Temperture, etc.)
2. Shape and size (drawings are available)
3. Magnetizing direction (axial, radial, and other magnetizing angle)
4. Coating material process and thickness (such as Ni, Ni-cu-Ni, Zn (Cr3 +) , Tin, Epoxy, Ni-AG, Ni-au)
5. Tolerance requirements (please pay attention to cost-effective, to avoid excessive quality)
6.Testing requirements
7. Futures requirements
8.Packing and transportation requirements


The performance and maximum processing accuracy of the NdFeB rare earth magnet products provided by our company please refer to the following two tables:



Magnetic Properties



Magnetic Properties
Grade Remanence Magnetic Inductio Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcb Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 836 10.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 836 10.5 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 836 10.5 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 836 10.5 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 915 11.5 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 915 11.5 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 1056 13.3 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 1056 13.3 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 1034 13.0 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 1019 12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 1008 12.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 970 12.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 1056 13.3 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 1056 13.3 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 1034 13.0 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 1019 12.8 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 1008 12.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 970 12.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 948 11.9 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 1056 13.3 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 1034 13.0 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 1019 12.8 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 1008 12.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 970 12.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 948 11.9 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 925 11.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 887 11.1 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 857 10.8 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 819 10.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 1029 12.9 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 1008 12.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 970 12.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 948 11.9 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 925 11.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 887 11.1 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 857 10.8 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 819 10.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 773 9.7 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 970 12.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 948 11.9 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 925 11.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 887 11.1 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 857 10.8 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 819 10.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 773 9.7 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 948 11.9 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 925 11.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 887 11.1 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 857 10.8 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 819 10.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 773 9.7 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5







Dimensional Tolerance

Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine 0

Motor Ndfeb N42 Ni Coated Rare Earth Permanent Magnets For Sewing Machine 1
