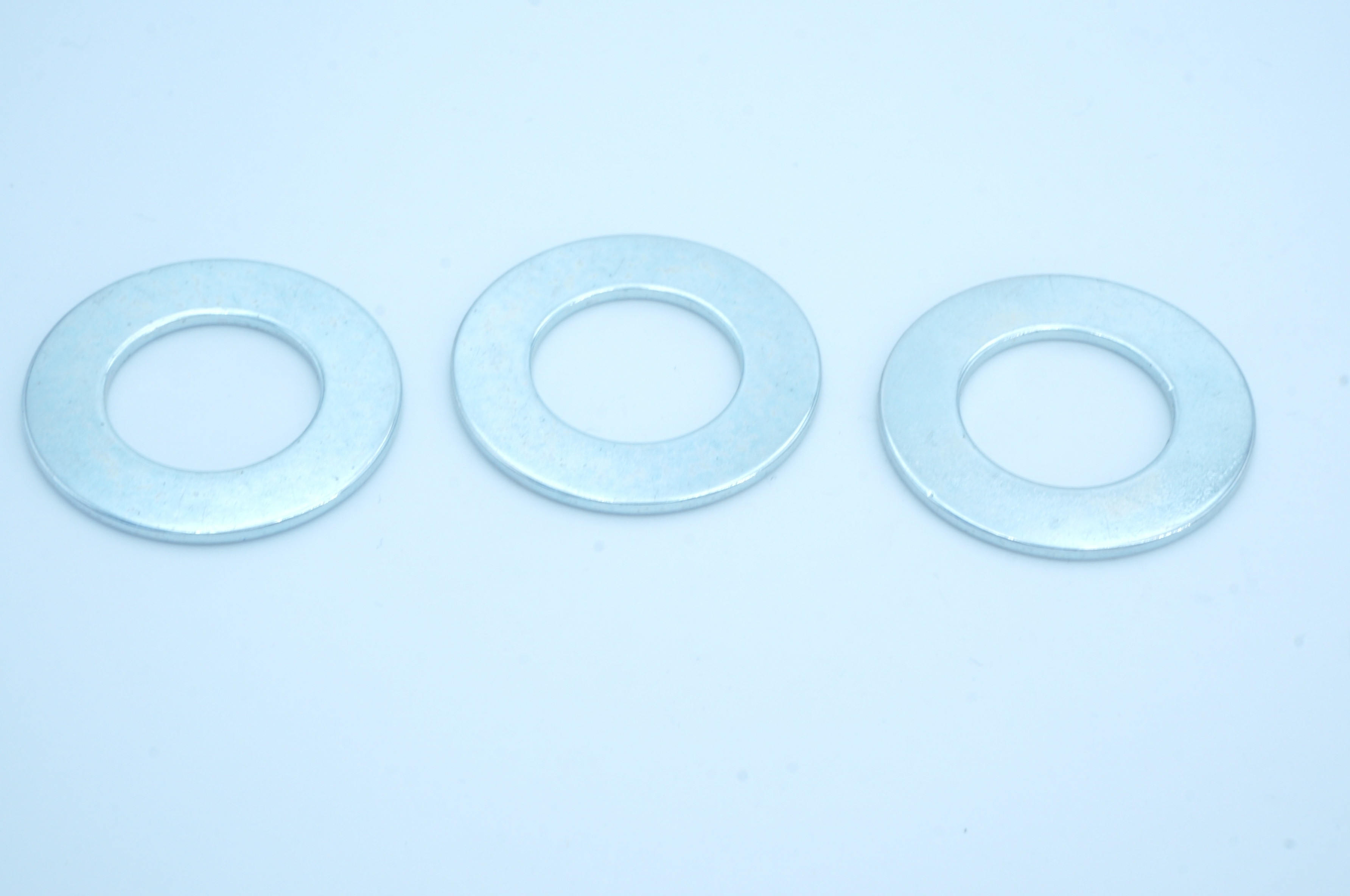

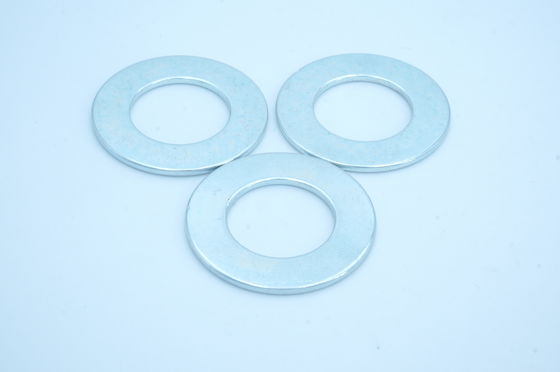

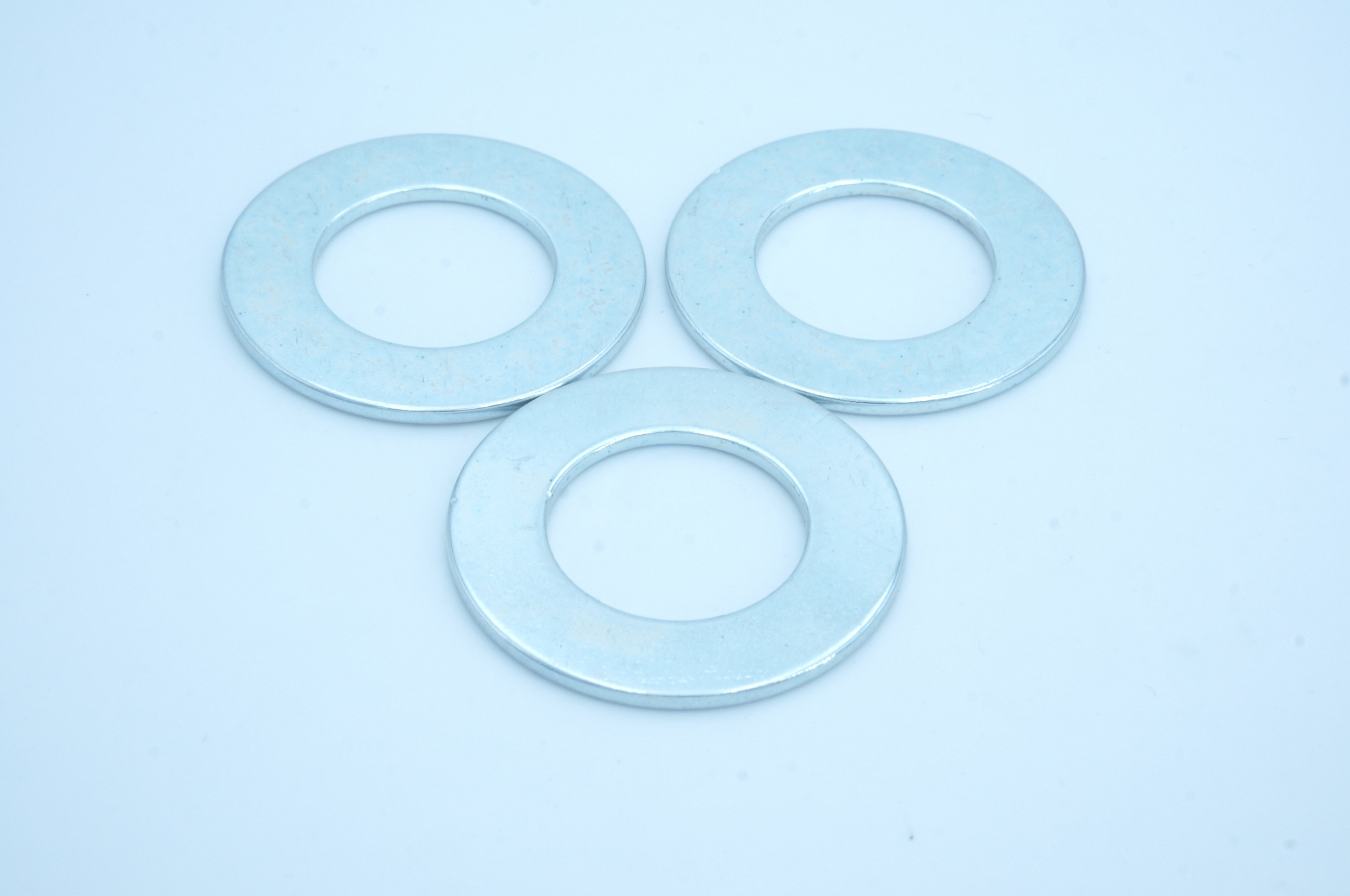

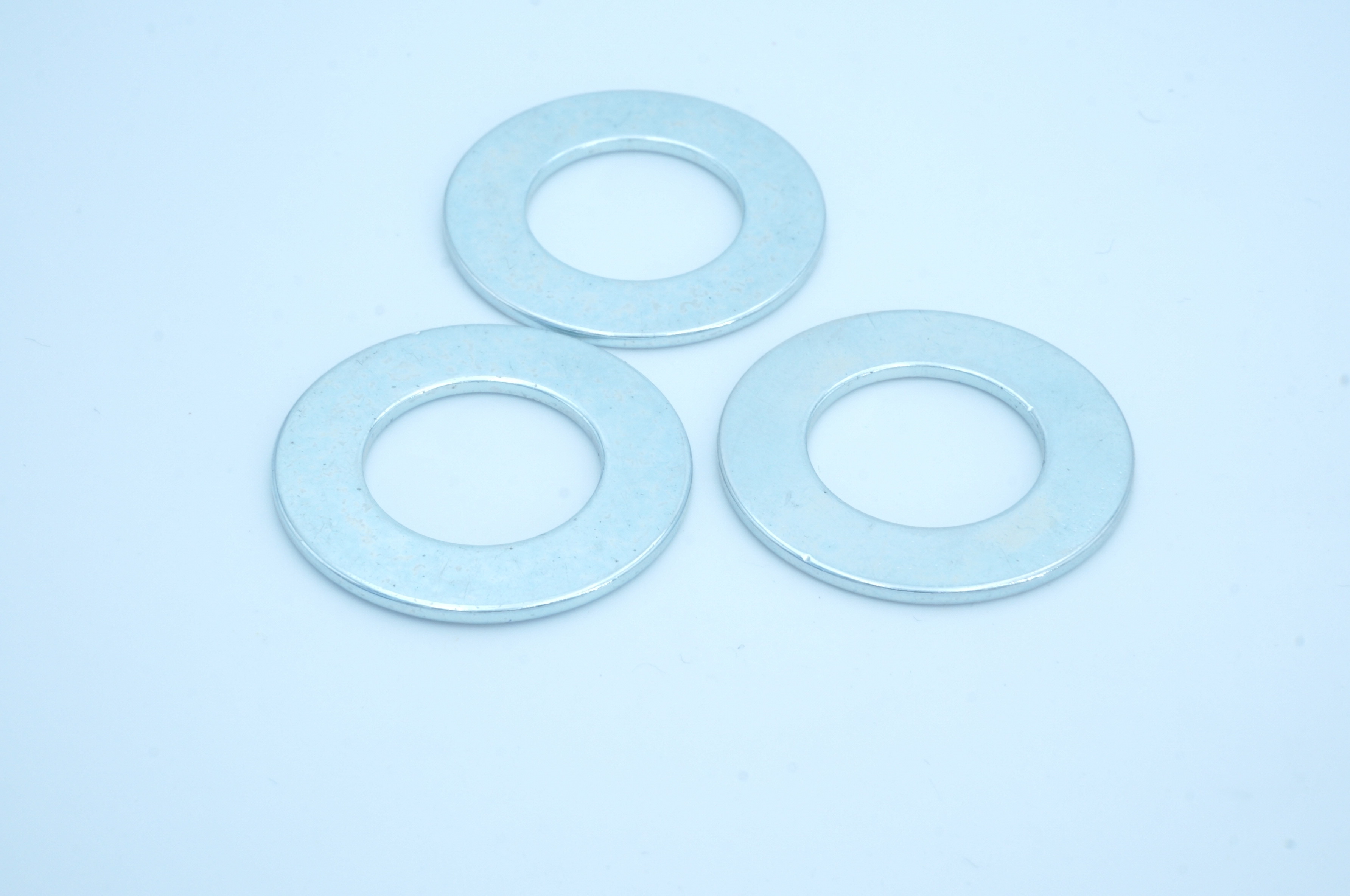

NdFeB Rare Earth Materials Neodymium Iron Boron Magnet with Sintering Methodology

  • NdFeB Rare Earth Materials Neodymium Iron Boron Magnet with Sintering Methodology
  • NdFeB Rare Earth Materials Neodymium Iron Boron Magnet with Sintering Methodology
  • NdFeB Rare Earth Materials Neodymium Iron Boron Magnet with Sintering Methodology
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-13
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Process Sintering Coating Zn
Max Working Temp 230ºC Grand Available N42
Tolerance +/- 0.02 Mm Raw Material NdFeB Rare Earth Materials
Working Temp 80ºC-230ºC Application Traction Motor Air Conditioner
Category Neodymium Magnets
Highlight

ndfeb iron boron magnet

,

ndfeb neodymium iron boron

,

rare earth iron boron magnet
Leave a Message
Product Description

NdFeB Rare Earth Materials Neodymium Iron Boron Magnet with Sintering



MethodologyProduct Description:

NdFeB Magnet - A Powerful Magnet for Various Applications

NdFeB Magnet, also known as Rare Earth Magnet, is a type of powerful permanent magnet made from the raw materials of NdFeB Rare Earth Materials. It has a high magnetic energy product and is widely used in different industries for its strong magnetic properties.

Product Overview

NdFeB Magnet is a highly versatile magnet that can be used in a variety of applications, especially in the field of motor and electronics. Its strong magnetic force makes it ideal for use in Traction Motors for vehicles, Automotive EPS Motors, and Air Conditioners. It is also suitable for other high-tech fields such as wind power generation and magnetic resonance imaging (MRI) equipment.

Key Features
  • Raw Material: NdFeB Rare Earth Materials
  • Working Temperature: 80ºC-230ºC
  • Application: Traction Motor, Automotive EPS Motor, Air Conditioner, Wind Power Generation, MRI Equipment
  • Grade Available: N35-N55, 42M-54M, 40H-54H, 30SH-52SH, 28UH-48UH, 28EH-38EH, 28AH-40AH
  • Process: Sintering
Why Choose NdFeB Magnet?

NdFeB Magnet has many advantages that make it a popular choice for various applications:

  • High magnetic energy product with strong magnetic properties
  • Wide working temperature range of 80ºC-230ºC
  • Available in a range of grades to suit different needs
  • Made from the high-quality raw materials of NdFeB Rare Earth Materials
  • Manufactured using the sintering process for optimal performance
  • Cost-effective and efficient solution for various industries
Conclusion

NdFeB Magnet is a powerful magnet that offers a wide range of applications and benefits. Its strong magnetic properties, high working temperature, and availability in different grades make it a top choice for industries such as automotive, electronics, and renewable energy. With its superior quality and efficient performance, NdFeB Magnet is the ideal choice for your magnetic needs.

Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5
