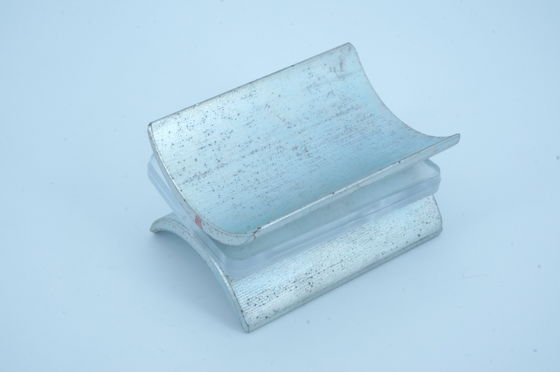

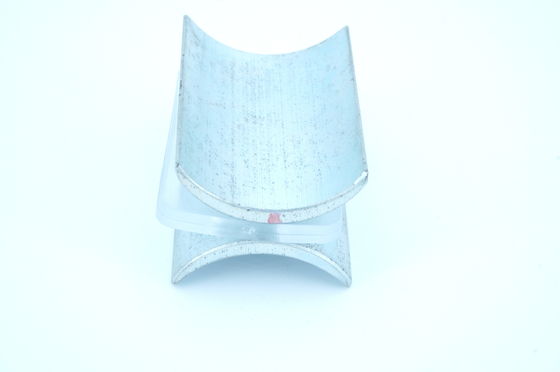

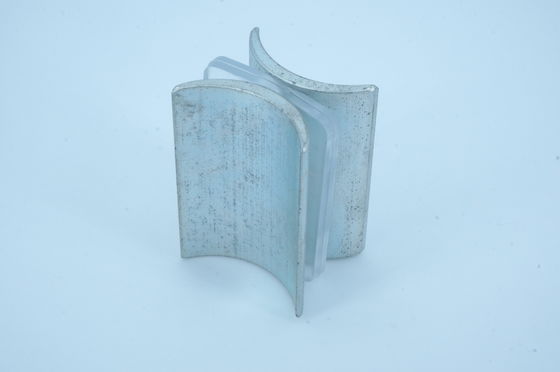

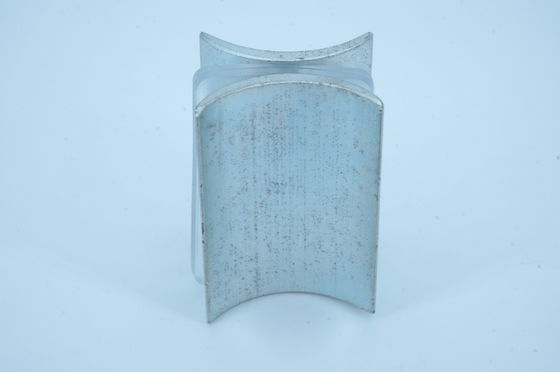

Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision

  • Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision
  • Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision
  • Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision
  • Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-1
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Working Temp 230ºC Working Temp 80-230 Centigrade
Tolerance +/- 0.02 Mm Size Custom
Application Traction Motor Automotive EPS Motor Air Conditioner Type Of Magnet NdFeB Magnets
Coating Nickel Zn Ni Raw Material NdFeB Rare Earth Materials
Shape Tile Category Neodymium Magnets
Highlight

custom rare earth magnet

,

custom rare earth electromagnet

,

precision rare earth magnet
Leave a Message
Product Description

Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision

Product Description:

NdFeB Magnet - The Superior Choice for High Temperature Applications

The NdFeB Magnet, also known as Neodymium Rare Earth Magnet, is a powerful permanent magnet made from NdFeB Rare Earth Materials. It is widely used in various industries, ranging from electronics to automotive, due to its exceptional magnetic properties.

Product Overview

The NdFeB Magnet is a type of NdFeB Permanent Magnet, which is made by sintering process. This process involves compacting and heating the raw materials to create a solid and dense magnet. The resulting magnet has high coercivity, remanence, and energy product, making it the strongest type of permanent magnetic material available.

Key Features
  • Working Temperature: The NdFeB Magnet has a wide working temperature range of 80-230 Centigrade, making it suitable for various high temperature applications.
  • Max Working Temperature: With a maximum working temperature of 230ºC, this magnet can withstand extreme heat and still maintain its magnetic properties.
  • Raw Material: The NdFeB Magnet is made from NdFeB Rare Earth Materials, which are the most powerful and abundant magnetic materials available.
  • Size: The size of the NdFeB Magnet can be customized according to the specific requirements of the application, making it a versatile choice for various industries.
  • Process: The sintering process used to create the NdFeB Magnet ensures a high degree of precision and consistency, resulting in a superior quality magnet.
Applications

The NdFeB Magnet is widely used in various industries such as:

  • Electronics: The small size and high strength of the NdFeB Magnet make it an ideal choice for microelectronic devices such as hard drives, speakers, and headphones.
  • Automotive: The NdFeB Magnet is used in various components of a car, including motors, sensors, and speakers, due to its high magnetic strength and ability to withstand high temperatures.
  • Medical: The small size and high magnetic properties of the NdFeB Magnet make it suitable for use in medical equipment such as MRI machines.
  • Energy: The NdFeB Magnet is used in wind turbines and electric generators to convert mechanical energy into electrical energy, due to its high efficiency and strength.

Overall, the NdFeB Magnet is a superior choice for high temperature applications due to its exceptional magnetic properties and ability to withstand extreme heat. Its versatility and wide range of applications make it an essential component in modern technology and industry.



Technical Parameters:

Grand Available Type Of Magnet Raw Material Working Temp Tolerance Size Coating Process Max Working Temp Application
N35-N52 NdFeB Magnets NdFeB Rare Earth Materials 80-230 Centigrade +/- 0.02 Mm Custom Nickel Epoxy Zn Ni Sintering 230ºC Traction Motor Automotive EPS Motor Air Conditioner
Key Features: Neodymium Permanent Magnet, Powerful Magnet, Neodymium Iron Boron Magnet, High Temperature Resistant

Product Attributes
Brand Name Model Number Place of Origin Certification Minimum Order Quantity Price Packaging Details Delivery Time Payment Terms Supply Ability Coating Process Application Tolerance Type Of Magnet
JN JN-ND-1 CHINA ISO9001 1000PCS Negotiable By Sea Pallet /By Air Carton / By Express Packaging 21 Days L/C,T/T 1 000K PCS/Month Nickel Epoxy Zn Ni Sintering Traction Motor Automotive EPS Motor Air Conditioner +/- 0.05 Mm NdFeB Magnets


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

Applications Rare Earth Magnet with Custom Tolerance /- 0.02 Mm high-tempreture resistant precision 0
