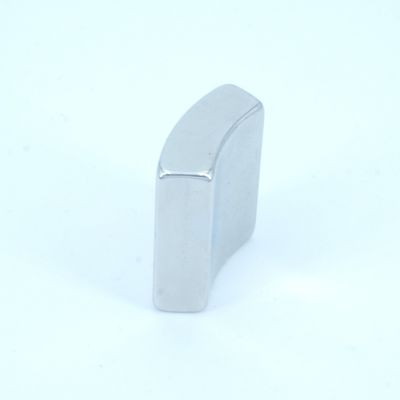

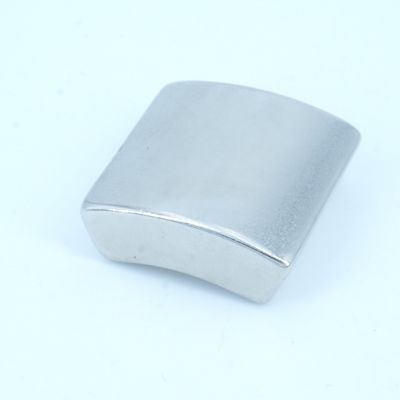

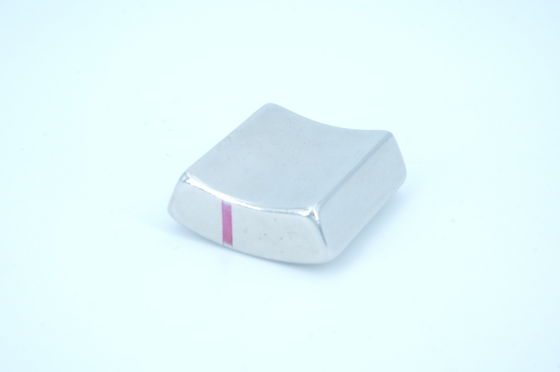

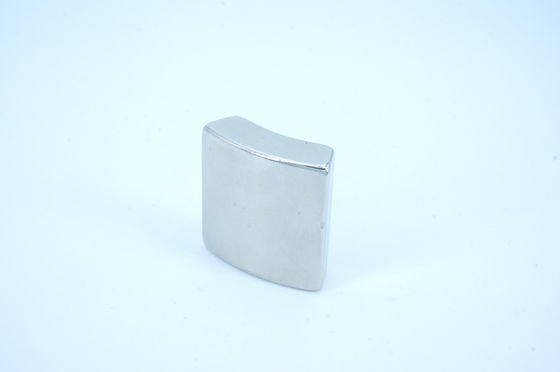

NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process

  • NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process
  • NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process
  • NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process
  • NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-1
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temp 80-230 Centigrade Max Working Temp 230ºC
Size Custom Type Of Magnet NdFeB Magnets
Raw Material NdFeB Rare Earth Materials Tolerance +/- 0.05 Mm
Application Traction Motor Automotive EPS Motor Air Conditioner Grand Available N35-N52
Category Neodymium Magnets
Highlight

precision ndfeb magnet

,

precision ndfeb magnets

,

custom ndfeb magnet
Leave a Message
Product Description

NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process

Product Description:

NdFeB Magnet - High-Temperature Resistant and Strong Magnet
Product Overview:

The NdFeB Magnet, also known as Neodymium Iron Boron Magnet or Neodymium Permanent Magnet, is a type of magnetic material that is widely used in various industries. It is made from rare earth materials, specifically Neodymium, Iron, and Boron, which gives it exceptional magnetic properties.

This magnet is known for its strong magnetic force, high coercivity, and excellent resistance to demagnetization. It is highly sought after for its versatility and reliability, making it a popular choice for a wide range of applications.

Product Attributes:
  • Max Working Temperature: The NdFeB Magnet has a maximum working temperature of 230ºC, which makes it suitable for use in high-temperature environments.
  • Coating: This magnet is coated with Nickel Epoxy Zn Ni, which provides protection against corrosion and enhances its durability.
  • Grade Available: The NdFeB Magnet is available in various grades, ranging from N35 to N52. The higher the grade, the stronger the magnetic force.
  • Tolerance: It has a tolerance of +/- 0.05 mm, ensuring precise and accurate dimensions for different applications.
  • Raw Material: The raw materials used in the production of NdFeB Magnet are NdFeB rare earth materials, known for their strong magnetic properties.

With its high-temperature resistance, strong magnetic force, and precise dimensions, the NdFeB Magnet is a top choice for industries such as electronics, automotive, aerospace, and more. It is also commonly used in everyday products, such as speakers, hard drives, and magnetic therapy devices.

Choose the NdFeB Magnet for your magnetic needs and experience its exceptional performance and reliability.



Technical Parameters:

Product Name NdFeB Magnet
Grand Available N35-N52
Working Temperature 80-230ºC
Tolerance +/- 0.05 mm
Process Sintering
Max Working Temperature 230ºC
Coating Nickel Epoxy Zn Ni
Type of Magnet NdFeB Magnets
Raw Material NdFeB Rare Earth Materials
Size Custom
Application Traction Motor, Automotive EPS Motor, Air Conditioner
Key Features
Neodymium Iron Boron Magnet, Powerful Magnet, NdFeB Permanent Magnet


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

NdFeB Magnet high-tempreture resistant precision magnet custom application Ni Zn Coated sintering process 0
