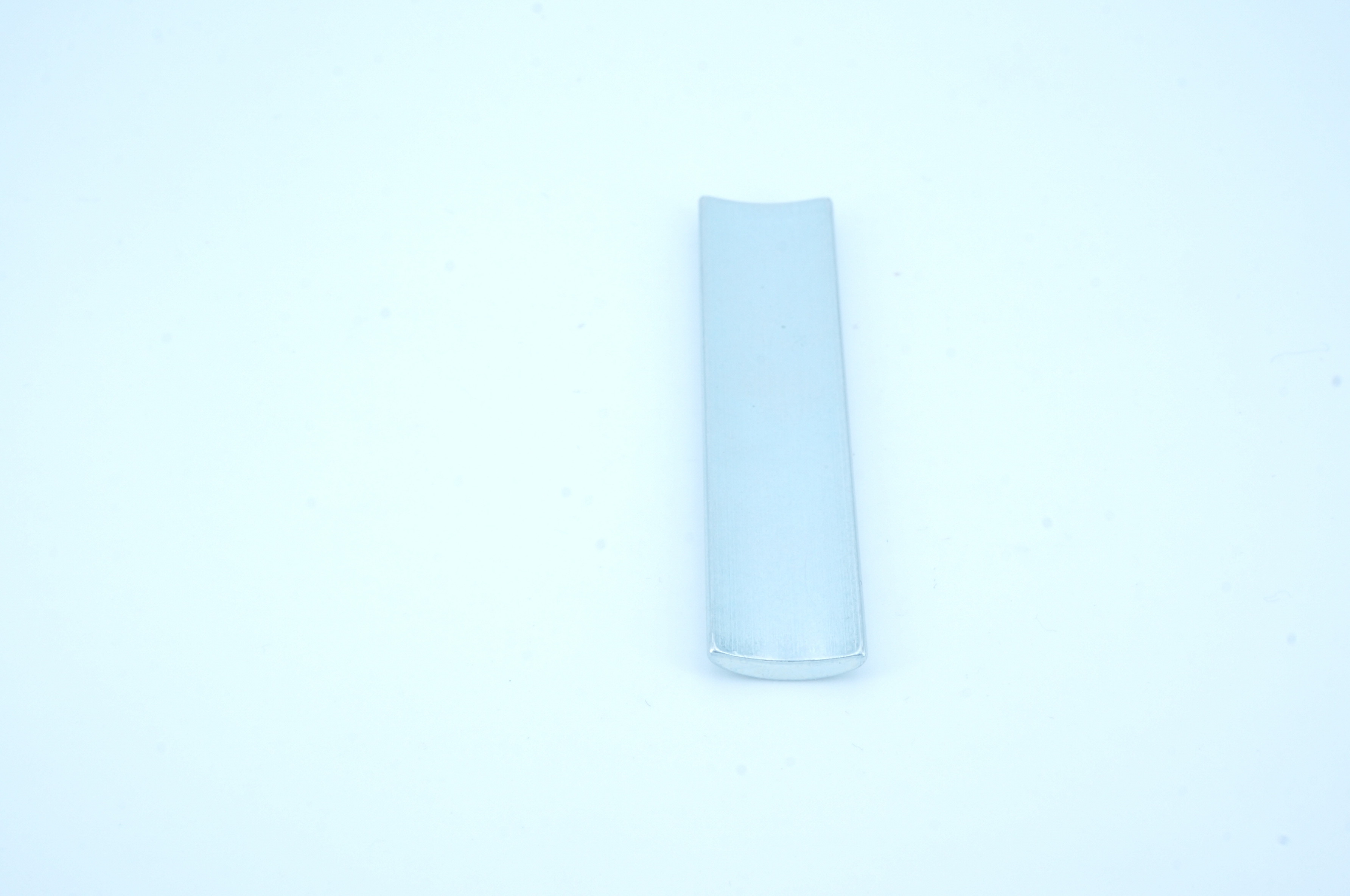

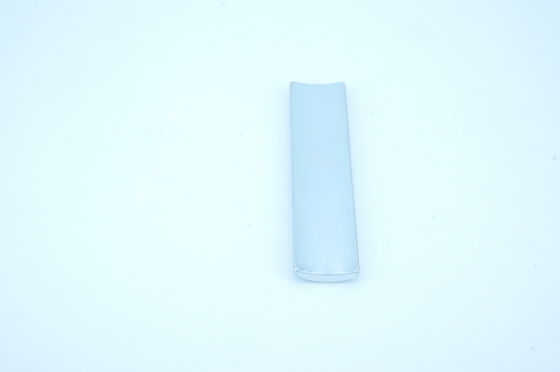

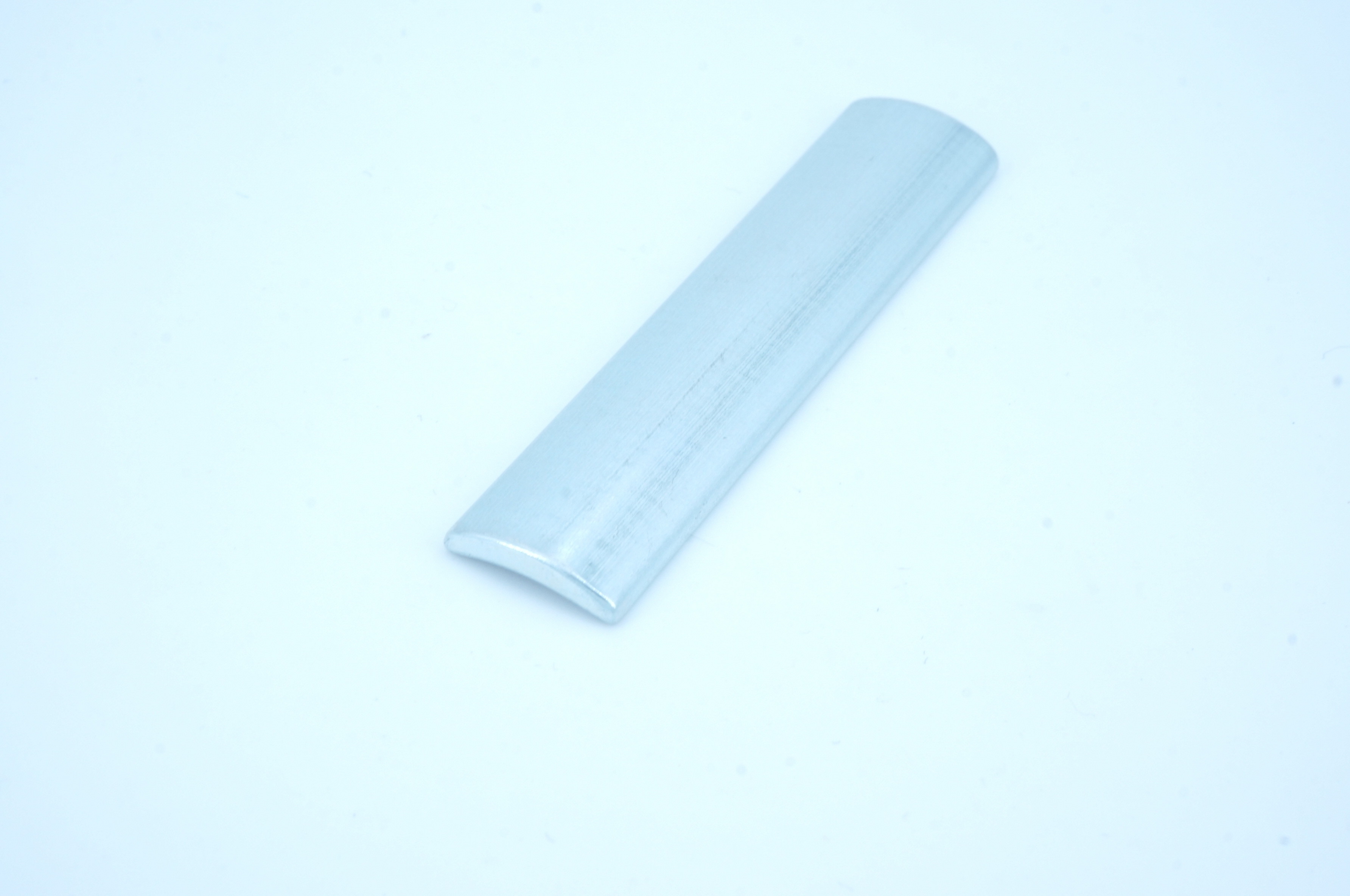

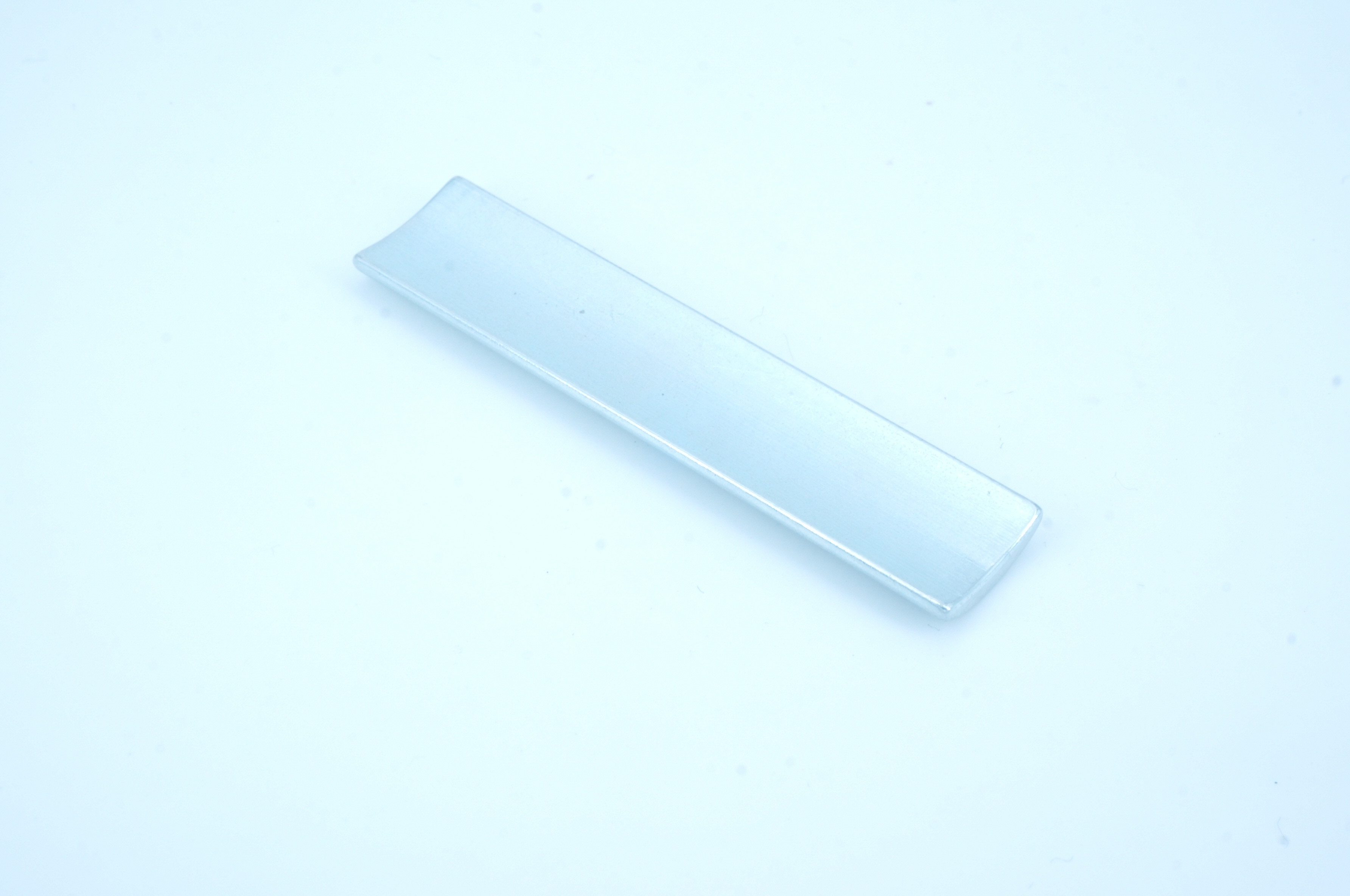

Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized

  • Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized
  • Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized
  • Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-1
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Raw Material NdFeB Rare Earth Materials Coating Nickel Epoxy Zn Ni
Grand Available N35-N52 Process Sintering
Type Of Magnet NdFeB Magnets Tolerance +/- 0.05 Mm
Working Temp 80-230 Centigrade Size Custom
Category Neodymium Magnets
Highlight

rare earth magnet material for customized

,

230c rare earth magnet material

,

230c rare earth magnet recycling
Leave a Message
Product Description

Tile N42 Max Working Temp 230ºC NdFeB Magnet for Customized Temperature Applications

Product Description:

NdFeB Magnet - The Super Strong Magnet You Need

Neodymium Permanent Magnet, also known as Neodymium Iron Boron Magnet, is one of the most powerful and versatile magnets available today. Among its many variations, the NdFeB Magnet stands out with its exceptional strength and durability, making it the top choice for various industrial and consumer applications.

Size: Custom

We understand that every project has unique requirements, and that's why our NdFeB Magnet is available in custom sizes to meet your specific needs. Whether you need a tiny magnet for a delicate electronic device or a large one for a heavy-duty machinery, we've got you covered.

Grade Available: N35-N52

The NdFeB Magnet comes in a range of grades, with N35 to N52 being the most commonly used. The higher the grade, the stronger the magnet. So whether you need a strong magnet for holding heavy objects or a weaker one for more delicate tasks, we have the right grade for you.

Working Temperature: 80-230 Centigrade

The NdFeB Magnet is designed to withstand high temperatures, making it suitable for use in extreme environments. With a working temperature range of 80-230 Centigrade, our magnet can perform reliably even in the most demanding conditions.

Process: Sintering

The production process of NdFeB Magnet involves sintering, which is a process of compacting and forming a solid mass of material using pressure and heat. This process ensures that our magnet has a high density and excellent magnetic properties.

Tolerance: +/- 0.05 Mm

Precision is crucial when it comes to magnets, and our NdFeB Magnet is manufactured with a tight tolerance of +/- 0.05 mm. This ensures that our magnet has consistent dimensions and performs at its best in various applications.


Applications and Scenarios

NdFeB Magnet has a wide range of applications in different industries. Some common examples include:

  • Magnetic Separators: NdFeB Magnet is used in magnetic separators, which are used to separate and remove ferrous materials from non-magnetic substances. They are commonly used in industries such as mining, recycling, and food processing.
  • Magnetic Lifters: NdFeB Magnet is also used in magnetic lifters, which are used to lift and move heavy objects in industries like construction, manufacturing, and transportation.
  • Magnetic Chucks: NdFeB Magnet is used in magnetic chucks, which are used to hold and secure workpieces during machining operations. They are commonly used in metalworking and woodworking industries.
  • Electric Motors and Generators: NdFeB Magnet is an essential component in electric motors and generators, which are used in various industries to convert electrical energy into mechanical energy.
  • Speakers and Headphones: NdFeB Magnet is used in the speakers and headphones of electronic devices, providing clear and high-quality sound.
  • Medical Equipment: NdFeB Magnet is used in medical equipment such as MRI machines, providing a strong magnetic field for imaging and diagnosis purposes.
Conclusion

NdFeB Magnet, with its super strong magnetic force and high durability, is an essential magnet in various industrial applications. Its versatility and wide range of uses make it a valuable material in many industries. As a leading manufacturer of NdFeB Magnet, JN is committed to providing high-quality products and customized solutions to meet the specific needs of our customers. Contact us today to learn more about our NdFeB Magnet and how it can benefit your business.


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5
Tile N42 NdFeB Magnet Rare Earth Magnet Material For Customized 0
