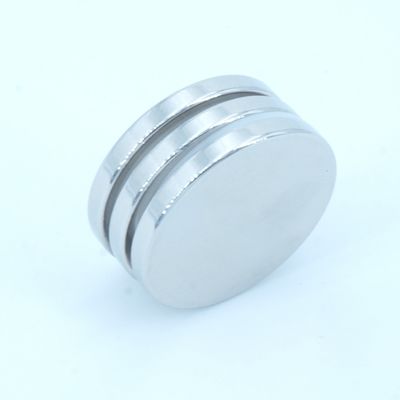

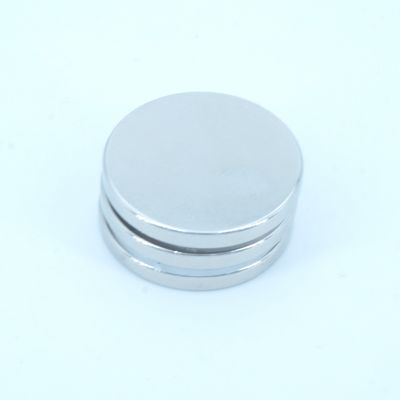

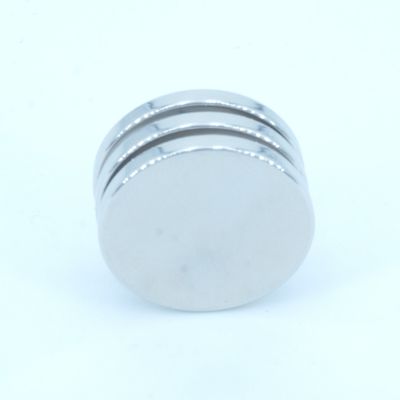

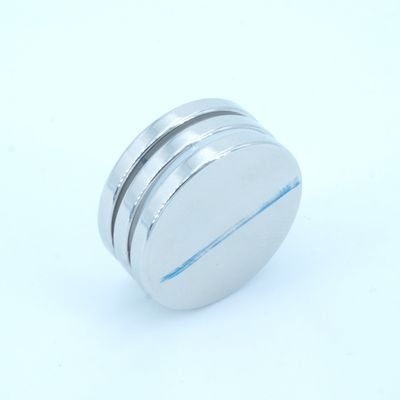

NdFeB Magnet Strong Magnetic Force High Temperature resistance power steering systems Nickel Coated N35-N52
| Place of Origin | CHINA |
|---|---|
| Brand Name | JN |
| Certification | ISO9001 |
| Model Number | JN-ND-6 |
| Minimum Order Quantity | 1000PCS |
| Price | Negotiable |
| Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time | 21 Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 000K PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Traction Motor, Air Conditioner,speaker | Grand Available | N35-N52 |
|---|---|---|---|
| Tolerance | +/- 0.05 Mm | Coating | Nickel / Epoxy / Zn |
| Size | Custom | Raw Material | NdFeB Rare Earth Materials |
| Working Temp | 80-230 Centigrade | Process | Sintering |
| Category | Neodymium Magnets | ||
| Highlight | n35 ndfeb magnet,n35 ndfeb magnets,n52 ndfeb magnet |
||
Product Description
Nickel Coated NdFeB Magnet for Strong Magnetic Force and High Temperature Resistance
Product Description:
NdFeB Magnet Product Overview
The NdFeB Magnet, also known as the Neodymium Iron Boron Magnet, is a powerful and super strong permanent magnet with high magnetic energy product and high coercive force. It is widely used in various industries due to its exceptional performance and properties.
Working Temperature
The NdFeB Magnet has a working temperature range of 80-230 degrees Centigrade, making it suitable for a wide range of applications that require high temperature resistance. It can maintain its magnetic properties even at extremely high temperatures, making it a reliable choice for industrial use.
Size Customization
The size of NdFeB Magnets can be customized according to the specific requirements of the application. This allows for flexibility and versatility in design and usage, making it suitable for various industries and products.
Maximum Working Temperature
The maximum working temperature of NdFeB Magnets is 230 degrees Celsius, which is significantly higher than other types of permanent magnets. This makes it ideal for applications that require high temperature resistance, such as traction motors, automotive EPS motors, and air conditioners.
Grade Availability
NdFeB Magnets are available in a wide range of grades, from N35 to N52, with different magnetic properties and performance levels. This allows for customization and optimization to meet the specific needs of different applications.
Applications
The NdFeB Magnet is widely used in various industries, including automotive, electronics, medical, and renewable energy. It is commonly used in traction motors for electric vehicles, automotive EPS motors for power steering systems, and air conditioners for energy-efficient cooling.
In summary, the NdFeB Magnet is a powerful and super strong permanent magnet with high temperature resistance and customizable size. Its availability in various grades and wide range of applications make it an essential component in many industrial and commercial products.
| Magnetic Properties | ||||||||||
| Grade | Remanence | Intrinsic Coercivity | Max Magnetic Energy Product | Temperature Coefficient | Max Working Temperture | Density | ||||
| Br | Hcj | (BH)max | α Br | β Hcj | Tw | ρ | ||||
| T | kGs | kA/m | kOe | KJ/m3 | MGOe | %/℃ | %/℃ | ℃ | g/cm3 | |
| N55 | ≥1.45 | ≥14.5 | ≥955 | ≥12 | 406-437 | 51-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N54 | ≥1.44 | ≥14.4 | ≥955 | ≥12 | 398-437 | 50-55 | -0.12 | -0.8 | 80 | ≥7.5 |
| N52 | 1.42-1.44 | 14.2-14.4 | ≥955 | ≥12 | 390-422 | 49-53 | -0.12 | -0.8 | 80 | ≥7.5 |
| N50 | 1.4-1.42 | 14-14.2 | ≥955 | ≥12 | 374-406 | 47-51 | -0.12 | -0.8 | 80 | ≥7.5 |
| N48 | 1.37-1.4 | 13.7-14 | ≥955 | ≥12 | 366-390 | 46-49 | -0.12 | -0.8 | 80 | ≥7.5 |
| N45 | 1.32-1.37 | 13.2-13.7 | ≥955 | ≥12 | 342-366 | 43-46 | -0.12 | -0.8 | 80 | ≥7.5 |
| 54M | ≥1.44 | ≥14.4 | ≥1114 | ≥14 | 398-422 | 50-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 52M | 1.42-1.44 | 14.2-14.4 | ≥1114 | ≥14 | 390-422 | 49-53 | -0.12 | -0.8 | 100 | ≥7.5 |
| 50M | 1.4-1.42 | 14-14.2 | ≥1114 | ≥14 | 374-406 | 47-51 | -0.12 | -0.8 | 100 | ≥7.5 |
| 48M | 1.37-1.4 | 13.7-14 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.8 | 100 | ≥7.5 |
| 45M | 1.32-1.37 | 13.2-13.7 | ≥1114 | ≥14 | 342-366 | 43-46 | -0.12 | -0.8 | 100 | ≥7.5 |
| 42M | 1.28-1.32 | 12.8-13.2 | ≥1114 | ≥14 | 318-342 | 40-43 | -0.12 | -0.8 | 100 | ≥7.5 |
| 54H | ≥1.44 | ≥14.4 | ≥1353 | ≥17 | 398-422 | 50-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52H | 1.42-1.44 | 14.2-14.4 | ≥1353 | ≥17 | 390-422 | 49-53 | -0.12 | -0.7 | 120 | ≥7.5 |
| 50H | 1.4-1.42 | 14-14.2 | ≥1353 | ≥17 | 374-406 | 47-51 | -0.12 | -0.7 | 120 | ≥7.5 |
| 48H | 1.37-1.4 | 13.7-14 | ≥1353 | ≥17 | 366-390 | 46-49 | -0.12 | -0.7 | 120 | ≥7.5 |
| 45H | 1.32-1.37 | 13.2-13.7 | ≥1353 | ≥17 | 342-366 | 43-46 | -0.12 | -0.7 | 120 | ≥7.5 |
| 42H | 1.28-1.32 | 12.8-13.2 | ≥1353 | ≥17 | 318-342 | 40-43 | -0.12 | -0.7 | 120 | ≥7.5 |
| 40H | 1.26-1.28 | 12.6-12.8 | ≥1353 | ≥17 | 302-326 | 38-41 | -0.12 | -0.7 | 120 | ≥7.5 |
| 52SH | 1.42-1.44 | 14.2-14.4 | ≥1592 | ≥20 | 390-422 | 49-53 | -0.12 | -0.6 | 150 | ≥7.5 |
| 50SH | 1.4-1.42 | 14-14.2 | ≥1592 | ≥20 | 374-406 | 47-51 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48SH | 1.37-1.4 | 13.7-14 | ≥1592 | ≥20 | 366-390 | 46-49 | -0.12 | -0.6 | 150 | ≥7.5 |
| 45SH | 1.32-1.37 | 13.2-13.7 | ≥1592 | ≥20 | 342-366 | 43-46 | -0.12 | -0.6 | 150 | ≥7.5 |
| 42SH | 1.28-1.32 | 12.8-13.2 | ≥1592 | ≥20 | 318-342 | 40-43 | -0.12 | -0.6 | 150 | ≥7.5 |
| 40SH | 1.26-1.28 | 12.6-12.8 | ≥1592 | ≥20 | 302-326 | 38-41 | -0.12 | -0.6 | 150 | ≥7.5 |
| 38SH | 1.22-1.26 | 12.2-12.6 | ≥1592 | ≥20 | 287-310 | 36-39 | -0.12 | -0.6 | 150 | ≥7.5 |
| 35SH | 1.17-1.22 | 11.7-12.2 | ≥1592 | ≥20 | 263-287 | 33-36 | -0.12 | -0.6 | 150 | ≥7.5 |
| 33SH | 1.13-1.17 | 11.3-11.7 | ≥1592 | ≥20 | 247-271 | 31-34 | -0.12 | -0.6 | 150 | ≥7.5 |
| 30SH | 1.08-1.13 | 10.8-11.3 | ≥1592 | ≥20 | 223-254 | 28-32 | -0.12 | -0.6 | 150 | ≥7.5 |
| 48UH | 1.36-1.4 | 13.6-14 | ≥1990 | ≥25 | 366-390 | 46-49 | -0.12 | -0.6 | 180 | ≥7.5 |
| 45UH | 1.32-1.37 | 13.2-13.7 | ≥1990 | ≥25 | 342-366 | 43-46 | -0.12 | -0.6 | 180 | ≥7.5 |
| 42UH | 1.28-1.32 | 12.8-13.2 | ≥1990 | ≥25 | 318-342 | 40-43 | -0.12 | -0.6 | 180 | ≥7.5 |
| 40UH | 1.26-1.28 | 12.6-12.8 | ≥1990 | ≥25 | 302-326 | 38-41 | -0.12 | -0.6 | 180 | ≥7.5 |
| 38UH | 1.22-1.26 | 12.2-12.6 | ≥1990 | ≥25 | 287-310 | 36-39 | -0.12 | -0.6 | 180 | ≥7.5 |
| 35UH | 1.17-1.22 | 11.7-12.2 | ≥1990 | ≥25 | 263-287 | 33-36 | -0.12 | -0.6 | 180 | ≥7.5 |
| 33UH | 1.13-1.17 | 11.3-11.7 | ≥1990 | ≥25 | 247-271 | 31-34 | -0.12 | -0.6 | 180 | ≥7.5 |
| 30UH | 1.08-1.13 | 10.8-11.3 | ≥1990 | ≥25 | 223-255 | 28-32 | -0.12 | -0.51 | 180 | ≥7.5 |
| 28UH | 1.02-1.08 | 10.2-10.8 | ≥1990 | ≥25 | 207-231 | 26-29 | -0.12 | -0.51 | 180 | ≥7.5 |
| 42EH | 1.28-1.32 | 12.8-13.2 | ≥2388 | ≥30 | 318-342 | 40-43 | -0.12 | -0.5 | 200 | ≥7.5 |
| 40EH | 1.25-1.28 | 12.5-12.8 | ≥2388 | ≥30 | 302-326 | 38-41 | -0.12 | -0.5 | 200 | ≥7.5 |
| 38EH | 1.22-1.26 | 12.2-12.6 | ≥2388 | ≥30 | 287-310 | 36-39 | -0.12 | -0.5 | 200 | ≥7.5 |
| 35EH | 1.17-1.22 | 11.7-12.2 | ≥2388 | ≥30 | 263-287 | 33-36 | -0.12 | -0.5 | 200 | ≥7.5 |
| 33EH | 1.13-1.17 | 11.3-11.7 | ≥2388 | ≥30 | 247-271 | 31-34 | -0.12 | -0.5 | 200 | ≥7.5 |
| 30EH | 1.08-1.13 | 10.8-11.3 | ≥2388 | ≥30 | 223-255 | 28-32 | -0.12 | -0.51 | 200 | ≥7.5 |
| 28EH | 1.02-1.08 | 10.2-10.8 | ≥2388 | ≥30 | 207-231 | 26-29 | -0.12 | -0.51 | 200 | ≥7.5 |
| 40AH | 1.25-1.28 | 12.5-12.8 | ≥2786 | ≥35 | 302-326 | 38-41 | -0.12 | -0.51 | 220 | ≥7.5 |
| 38AH | 1.22-1.26 | 12.2-12.6 | ≥2786 | ≥35 | 287-310 | 36-39 | -0.12 | -0.51 | 220 | ≥7.5 |
| 35AH | 1.17-1.22 | 11.7-12.2 | ≥2786 | ≥35 | 263-287 | 33-36 | -0.12 | -0.51 | 220 | ≥7.5 |
| 33AH | 1.13-1.17 | 11.3-11.7 | ≥2786 | ≥35 | 247-271 | 31-34 | -0.12 | -0.51 | 220 | ≥7.5 |
| 30AH | 1.08-1.13 | 10.8-11.3 | ≥2786 | ≥35 | 223-255 | 28-32 | -0.12 | -0.51 | 220 | ≥7.5 |
| 28AH | 1.02-1.08 | 10.2-10.8 | ≥2786 | ≥35 | 199-231 | 25-29 | -0.12 | -0.51 | 220 | ≥7.5 |
