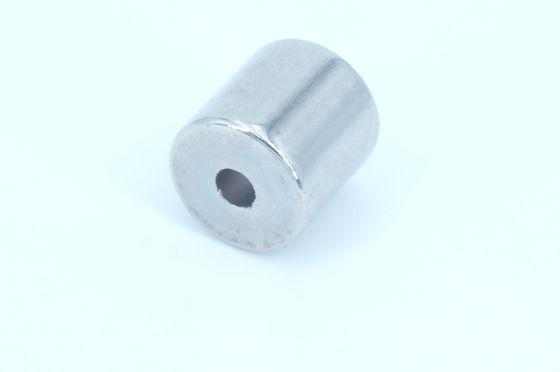

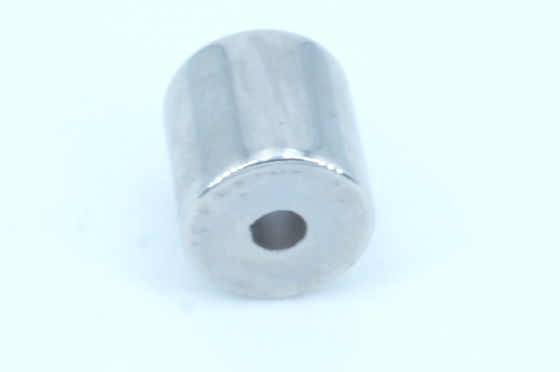

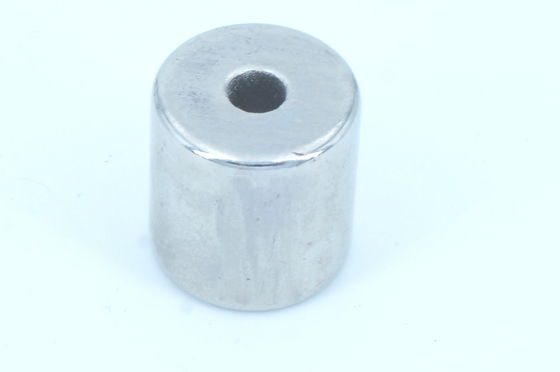

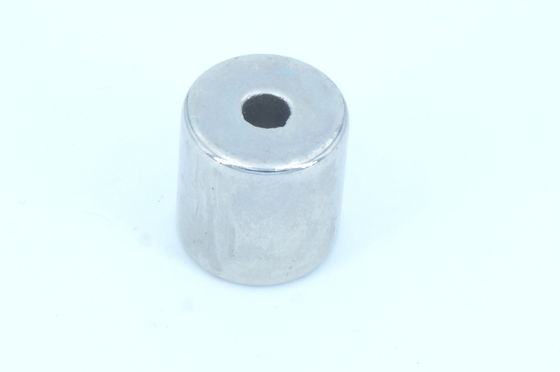

Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors

  • Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors
  • Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors
  • Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors
  • Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-8
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grand Available N52 Type Of Magnet NdFeB Magnets
Working Temp 80-230 Centigrade Coating Nickel / Epoxy / Zn
Max Working Temp 230ºC Size Custom
Application High Speed Motors Raw Material NdFeB Rare Earth Materials
Category Neodymium Magnets
Highlight

custom ndfeb magnet

,

custom ndfeb magnets

,

n35 ndfeb magnet
Leave a Message
Product Description

Custom NdFeB Magnet with Nickel Coating and /- 0.05 Mm Tolerance N35-N52 for high speed motors

Product Description:

The NdFeB Magnet, also known as Neodymium Iron Boron Magnet, is a type of permanent magnet made from an alloy of neodymium, iron, and boron. It is the most powerful type of permanent magnet available, with a maximum energy product of up to 52 MGOe (Mega-Gauss-Oersted).

The NdFeB Magnet is widely used in various industries, including electronics, automotive, and medical, due to its superior magnetic properties and high working temperature. Its maximum working temperature can reach up to 230ºC, making it suitable for use in high-temperature environments.

Key Product Attributes:
  • Max Working Temp: The NdFeB Magnet has a high maximum working temperature of 230ºC, making it suitable for use in high-temperature applications.
  • Coating: The NdFeB Magnet is available with different coating options, including Nickel, Epoxy, and Zn. These coatings provide protection against corrosion and improve the magnet's durability and lifespan.
  • Working Temp: The NdFeB Magnet has a wide range of working temperature, from 80 to 230 Centigrade, making it suitable for a variety of applications in different temperature conditions.
  • Grade Available: The NdFeB Magnet is available in various grades, from N35 to N52, with N52 being the strongest grade. The grade of the magnet determines its maximum energy product and magnetic strength.
  • Process: The NdFeB Magnet is produced through a process called sintering, where the raw materials are heated and compressed together to form a solid block of magnet. This process ensures the magnet's high magnetic properties and precision in shape and size.

The NdFeB Permanent Magnet Material is essential in many industries, such as motors, generators, sensors, and magnetic separators. Its superior magnetic properties, high working temperature, and wide range of available grades make it a highly sought-after magnet in the market. With its advanced production process and various coating options, the NdFeB Magnet is a reliable and efficient choice for any application that requires strong and durable magnets.

Applications:

NdFeB Magnet has a wide range of applications in various industries due to its strong magnetic properties and high working temperature. Some common applications include:
  • Electric Motors and Generators
  • Magnetic Separators
  • Computer Hard Drives
  • Sensors and Speakers
  • Magnetic Resonance Imaging (MRI)
  • Wind Turbines
  • Audio Equipment
  • Magnetic Couplings
  • And many more...
NdFeB Magnet offers many advantages that make it a top choice for different industries:
  • High Magnetic Performance: With a maximum energy product of 52 MGOe, NdFeB Magnet is the strongest type of magnet available in the market.
  • High Working Temperature: NdFeB Magnet can withstand high temperatures up to 230 degrees Celsius, making it suitable for various applications.
  • Wide Range of Coatings: The magnet can be coated with Nickel, Epoxy, or Zinc depending on the specific application requirements.
  • Cost-effective: NdFeB Magnet is relatively inexpensive compared to other types of permanent magnets, making it a cost-effective solution for businesses.
  • Diverse Shapes and Sizes: NdFeB Magnet can be manufactured into different shapes and sizes, making it versatile and suitable for a wide range of applications.
  • Long-lasting: NdFeB Magnet has excellent corrosion resistance, ensuring its durability and longevity.
Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5
