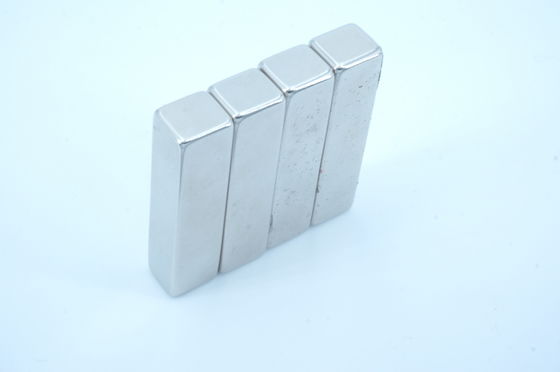

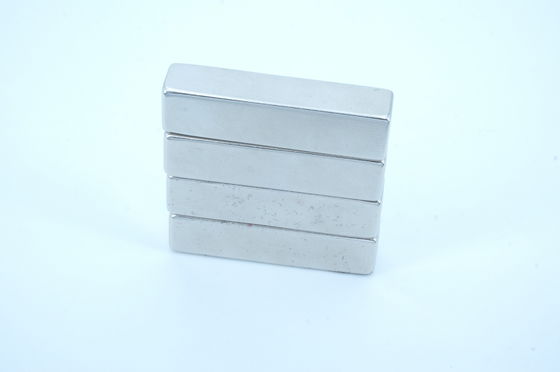

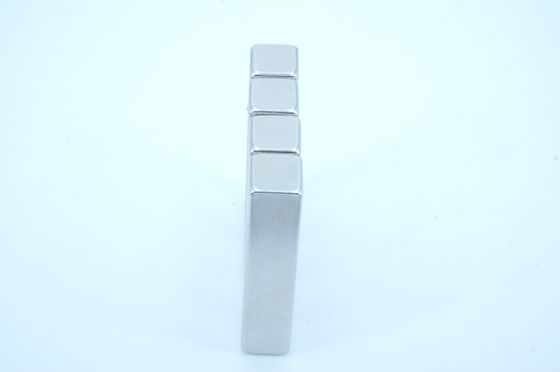

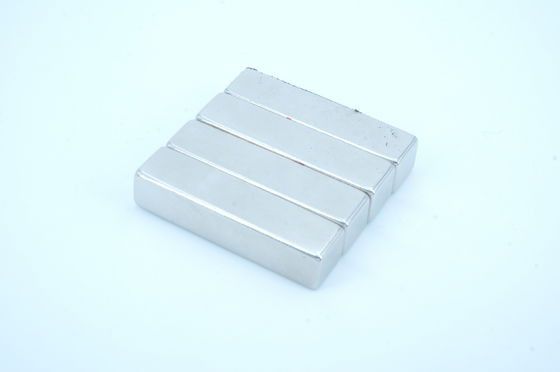

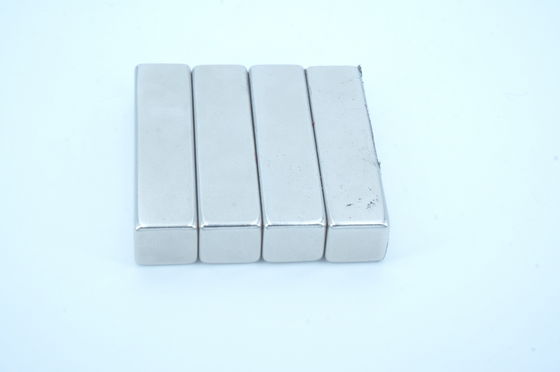

Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52

  • Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52
  • Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52
  • Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52
  • Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52
  • Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-10
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Process Sintering Working Temp 80-230 Centigrade
Type Of Magnet NdFeB Magnets Raw Material NdFeB Rare Earth Materials
Grand Available N52 Size Custom
Coating Nickel / Epoxy / Zn Application Wind Turbine, Wheel-motor-magnet, Lifting Magnet
Category Neodymium Magnets
Highlight

custom ndfeb magnet

,

ndfeb magnet for traction motor

,

custom ndfeb magnets
Leave a Message
Product Description

Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52

Product Description:

NdFeB Magnet: The Ultimate Solution for High Performance Magnets

The NdFeB Magnet, also known as Neodymium Rare Earth Magnet, is a type of permanent magnet made from an alloy of neodymium, iron, and boron. It is the strongest type of permanent magnet available commercially, with a maximum energy product of up to 52 MGOe (MegaGauss-Oersted).

Product Overview

The NdFeB Magnet is coated with three layers of protective coatings - Nickel, Epoxy, and Zinc, making it suitable for various applications and working environments. It has a working temperature range of 80-230 degrees Celsius, making it ideal for use in extreme conditions.

Product Attributes
  • Coating: The NdFeB Magnet is coated with a triple layer of Nickel, Epoxy, and Zinc, providing excellent corrosion resistance and durability.
  • Working Temperature: With a working temperature range of 80-230 degrees Celsius, the NdFeB Magnet can withstand extreme temperatures, making it suitable for a wide range of applications.
  • Application: The NdFeB Magnet is widely used in various industries, including traction motor automotive, EPS motor, and air conditioner, thanks to its high performance and durability.
  • Process: The NdFeB Magnet is produced through a process called sintering, where the raw materials are compressed and heated to form a solid magnet with excellent magnetic properties.
  • Max Working Temperature: The NdFeB Magnet has a maximum working temperature of 230 degrees Celsius, making it one of the most heat-resistant permanent magnets available in the market.
Key Features
  • Super Strong Magnet: The NdFeB Magnet is the strongest type of permanent magnet commercially available, with a maximum energy product of up to 52 MGOe.
  • Permanent Magnet: The NdFeB Magnet is a permanent magnet, meaning it can retain its magnetic properties for a long time without any external power source.
  • NdFeB Magnet: The NdFeB Magnet is made from a combination of neodymium, iron, and boron, making it a powerful and versatile magnet.
  • Rare Earth Magnet: The NdFeB Magnet belongs to the rare earth magnet family, known for their exceptional strength and magnetic properties.
Conclusion

The NdFeB Magnet is a revolutionary product that has transformed the magnetic industry with its high performance, durability, and versatility. With its triple coating, wide temperature range, and strong magnetic properties, it has become the go-to magnet for various industries and applications. Choose NdFeB Magnet for all your magnet needs and experience the power of rare earth magnets.


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52 0

Custom NdFeB Magnet for wind turbine wheel-motor-magnet and lifting magnet strong magnet N52 1
