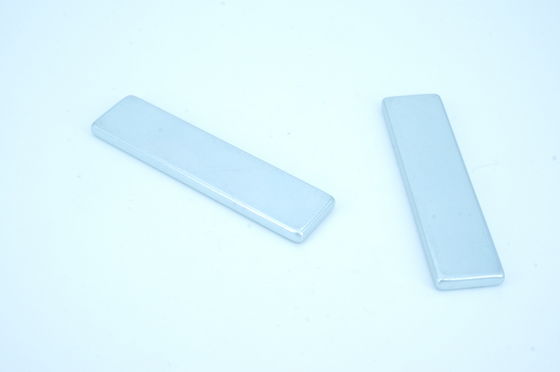

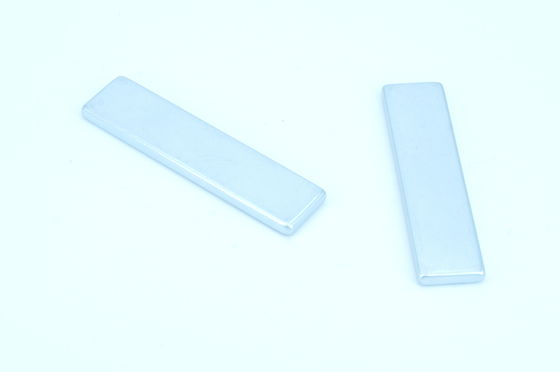

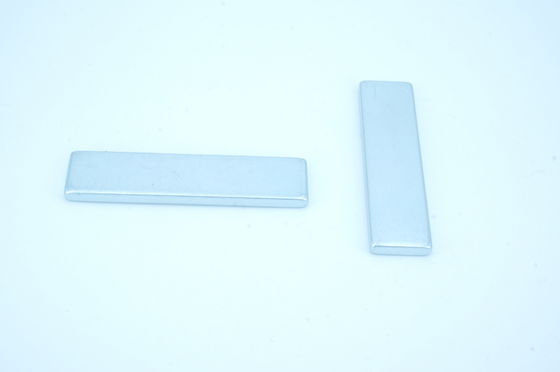

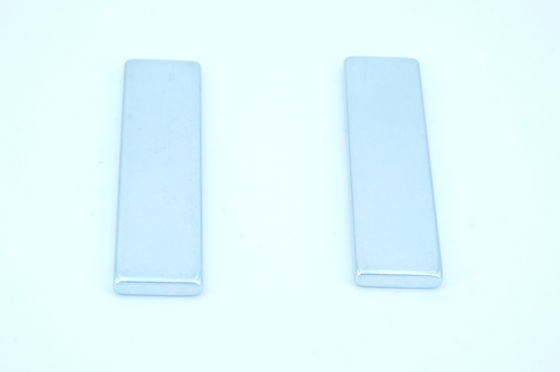

NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet

  • NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet
  • NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet
  • NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet
  • NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-12
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SST Test Over 72 Hrs Grand Available N52
Processing Sintering Magnetism Direction Through Thickness(Axially)
Curie Temperature 310-400°C Plant NiCuNi
Tolerance 0.02 Mm Raw Material NdFeB Rare Earth Materials , Magnetic Material
Category Neodymium Magnets
Highlight

ni coated ndfeb magnet

,

ni coated ndfeb magnets
Leave a Message
Product Description

NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet

Product Description:

NdFeB Magnet - The Ultimate Solution for Powerful Magnetism

NdFeB Magnet, also known as Neodymium Iron Boron Magnet, is a type of powerful magnet made from a combination of neodymium, iron, and boron. It is the most widely used type of rare earth magnet due to its powerful magnetism and high energy density.

Processing Service: Bending for Customized Shapes and Sizes

NdFeB Magnet can be formed into a variety of shapes and sizes to meet the specific needs of different applications. Our processing service includes bending, which allows for custom shapes and sizes to be created for a perfect fit in your project.

Coated with Nickel, Zinc, Epoxy, or Other Materials for Enhanced Durability

To prevent corrosion and extend the lifespan of the magnet, our NdFeB Magnet can be coated with various materials such as nickel, zinc, epoxy, and more. This ensures the magnet stays in top condition even in harsh environments.

OEM and ODM Services Available

At our company, we understand that every project has unique requirements. That's why we offer OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services for our NdFeB Magnet. Our experienced team will work closely with you to develop the perfect solution for your specific needs.


Application and Scene

NdFeB Magnets are widely used in a variety of industries, including electronics, automotive, medical, aerospace, and many others. They are commonly used in applications such as:

  • Electric Motors: NdFeB Magnets are an essential component in electric motors, providing high torque and efficiency.
  • Magnetic Separators: NdFeB Magnets are used in magnetic separation processes to remove or separate magnetic materials from non-magnetic substances.
  • Sensors: NdFeB Magnets are used in sensors to detect and measure changes in magnetic fields, such as in compasses and magnetic position sensors.
  • Loudspeakers: NdFeB Magnets are used in loudspeakers to produce high-quality sound with minimal distortion.
  • Medical Equipment: NdFeB Magnets are used in medical equipment, such as MRI machines, to create strong and precise magnetic fields for imaging and diagnostics.

With their high performance, superior magnetic properties, and wide range of applications, NdFeB Magnets are an essential component in many modern technologies and industries. Choose JN NdFeB Magnets for reliable and efficient solutions to your magnetic needs.


Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5



NiCuNi Coated NdFeB Magnet with Super Strong N52 Neodymium magnetic material SST test over 72 hrs for wheel-motor-magnet 0
