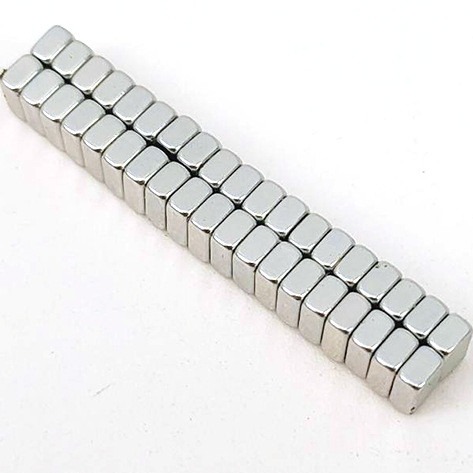

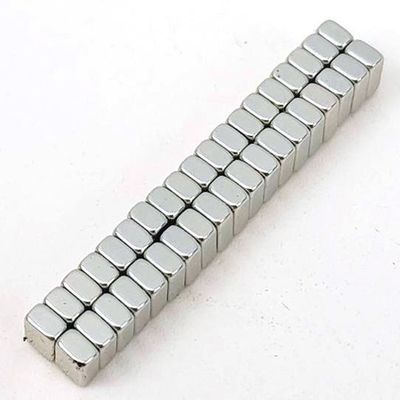

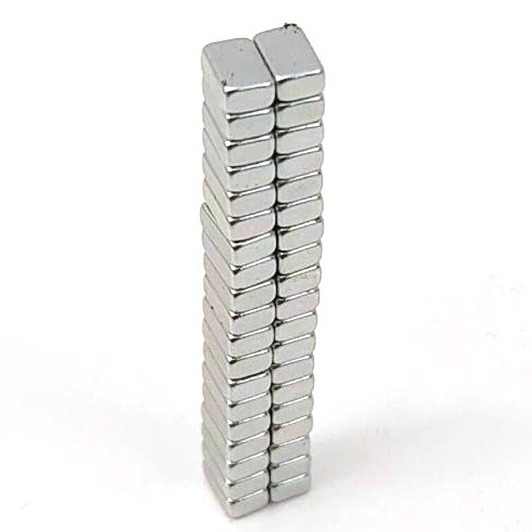

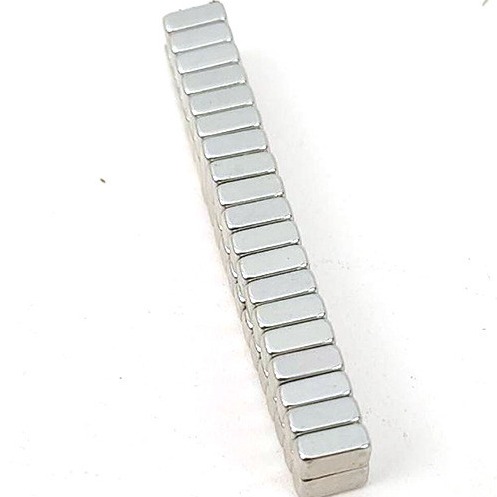

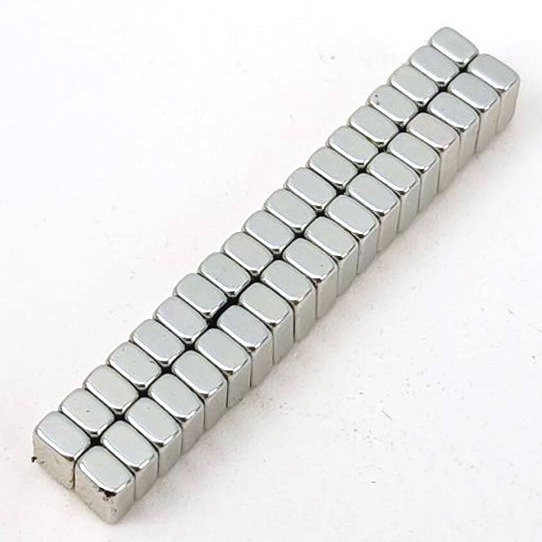

80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square

  • 80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square
  • 80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square
  • 80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square
  • 80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square
Place of Origin CHINA
Brand Name JN
Certification ISO9001
Model Number JN-ND-17
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time 21 Days
Payment Terms L/C,T/T
Supply Ability 1 000K PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tolerance +/- 0.05mm - +/- 0.1mm Working Temp 80-220 Centigrade
Compressive Strength 1000N Curie Temperature 310-400°C
Type Of Magnet NdFeB Magnets Plant Nickel - Copper - Nickel
Size Customize Grand Available N35-N52
Category Neodymium Magnets
Highlight

n52 rare earth magnets square

,

220 centigrade ndfeb magnets

,

ndfeb n52 rare earth magnets
Leave a Message
Product Description

Working Temp 80-220 Centigrade NdFeB Magnets with Grand N35-N52 shape square

Product Description:

NdFeB Magnet - Super Strong Magnet for Various Applications

NdFeB Magnet, also known as neodymium magnet or rare earth magnet, is a type of high-performance permanent magnet made from an alloy of neodymium, iron, and boron. It is the strongest type of permanent magnet available commercially, with a maximum energy product of up to 52 MGOe (MegaGauss Oersted). NdFeB magnets are widely used in various industrial and commercial applications due to their super strong magnetic properties.

Our NdFeB magnets can be processed into various shapes and sizes according to customer requirements. We offer bending services, which allow for the production of complex shapes and designs that cannot be achieved through traditional machining methods. This flexibility in processing allows for greater design possibilities and makes NdFeB magnets suitable for a wide range of applications.
Magnetism Direction: Through Thickness(Axially)

The magnetism direction of our NdFeB magnets is through the thickness, also known as axially. This means that the north and south poles are located on opposite sides of the magnet, making it ideal for applications where a strong holding force is required in a specific direction.

Key Features of NdFeB Magnet:
  • Super strong magnet with high coercivity and high energy product
  • Made from rare earth materials for maximum magnetic strength
  • Available in various sizes and shapes to suit different applications
  • Can be processed through bending to achieve complex shapes and designs
  • Magnetism direction through the thickness for strong holding force in a specific direction
  • Acceptable for ODM services to meet specific requirements

In conclusion, NdFeB Magnet is a super strong magnet with high coercivity and high energy product, making it an ideal choice for a wide range of industrial and commercial applications. With our large inventory, ODM services, and flexible processing options, we are committed to providing high-quality NdFeB magnets that meet the unique needs of our customers.



Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5



80 - 220 Centigrade NdFeB Magnets With Grand N35 - N52 Rare Earth Magnets Square 0
