0.1mm Tolerance Rare Earth Cobalt Magnet Perfect Choice For Magnetic Separators
| Place of Origin | CHINA |
|---|---|
| Brand Name | JN |
| Certification | ISO9001 |
| Model Number | JN-CO-2 |
| Minimum Order Quantity | 500PCS |
| Price | Negotiable |
| Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time | 25 Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 500K PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Curie Temperature | 700-800°C | Property | Isotropic And Anisotropic Is Avaible |
|---|---|---|---|
| Tolerance | 0.1mm | Applications | Motors, Sensors, Magnetic Couplings, Magnetic Separators, Etc. |
| Color | Brown, Black | Magnetization | Multipolar Or So |
| Demagnetization Resistance | Excellent | Advantages | High Temperature Stability, High Magnetic Strength, Corrosion Resistance |
| Highlight | 0.1mm Tolerance smco magnet grades,smco magnet grades for Separators,thin rare earth magnets ISO9001 |
||
Product Description
0.1mm Tolerance Rare Earth Cobalt Magnet Perfect Choice for Magnetic Separators
JN's SmCo Magnets have a wide range of applications and are suitable for various scenarios, thanks to their unique properties and shape options. Some of the common applications and scenarios for our SmCo Magnets include:
Bar SmCo Magnet - Ideal for use in motors, generators, and loudspeakers.
Disc SmCo Magnet - Perfect for sensors, magnetic couplings, and magnetic bearings.
Cylinder SmCo Magnet - Suitable for aerospace and military equipment.

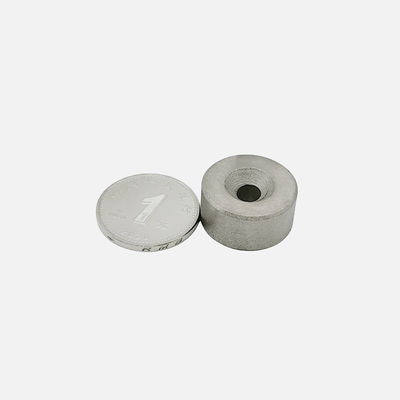

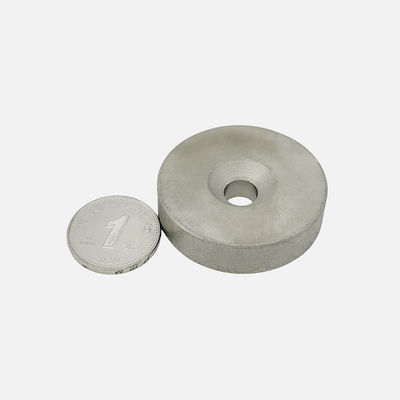

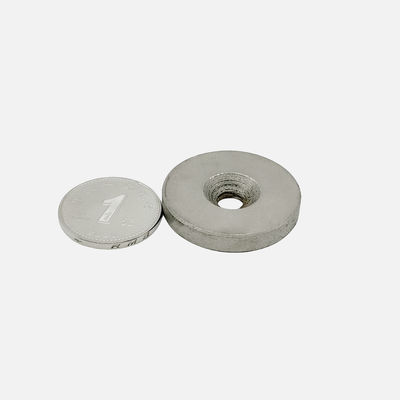

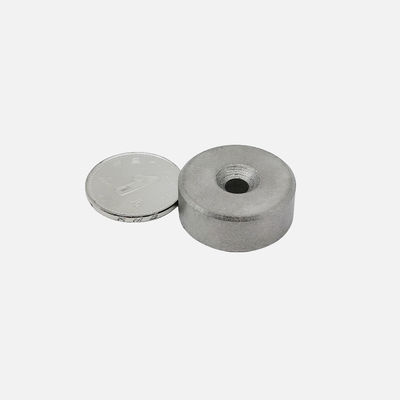

Ring SmCo Magnet - Used in MRI machines, magnetic separators, and magnetic chucks.
Arc SmCo Magnet - Great for high-speed motors, magnetic pumps, and magnetic couplings.
Segment SmCo Magnet - Commonly used in magnetic levitation systems, magnetic switches, and magnetic clamps.
No matter what your industry or specific application may be, JN's SmCo Magnets can provide the high performance you need.
Technical Parameters:
Disc SmCo Magnet - Perfect for sensors, magnetic couplings, and magnetic bearings.
Cylinder SmCo Magnet - Suitable for aerospace and military equipment.
Ring SmCo Magnet - Used in MRI machines, magnetic separators, and magnetic chucks.
Arc SmCo Magnet - Great for high-speed motors, magnetic pumps, and magnetic couplings.
Segment SmCo Magnet - Commonly used in magnetic levitation systems, magnetic switches, and magnetic clamps.
No matter what your industry or specific application may be, JN's SmCo Magnets can provide the high performance you need.
| Advantages | High Temperature Stability, High Magnetic Strength, Corrosion Resistance |
|---|---|
| Curie Temperature | 700-800°C |
| Magnetic Properties | High Magnetic Energy Product, High Coercive Force, High Remanence |
| Demagnetization Resistance | Excellent |
| Applications | Motors, Sensors, Magnetic Couplings, Magnetic Separators, Etc. |
| Magnetization | Multipolar Or So |
| Shape | Disc, Cylinder, Block, Ring, Arc, Segment, Etc. |
| Color | Brown, Black |
| Tolerance | 0.1mm |
| Property | Isotropic And Anisotropic Is Avaible |
| Grade | Residual Induction | Coercive Force | Intrinsic Coercive Force |
Max. Energy Product |
Max. Working Temperature | ||||||
| Br | Hcb | Hcj | (BH)max | Tw | |||||||
| kGs | T | kOe | KA/m | kOe | KA/m | MGOe | KJ/m³ | ℃ | |||
| SmCo5 | SC16 | 8.1-8.5 | 0.81-0.85 | 7.8-8.3 | 620-660 | 15-23 | 1194-1830 | 14-16 | 110-127 | 250 | |
| SC18 | 8.5-9.0 | 0.85-0.90 | 8.3-8.8 | 660-700 | 15-23 | 1194-1830 | 16-18 | 127-143 | 250 | ||
| SC20 | 9.0-9.4 | 0.90-0.94 | 8.5-9.1 | 676-725 | 15-23 | 1194-1830 | 19-21 | 150-167 | 250 | ||
| SC22 | 9.2-9.6 | 0.92-0.96 | 8.9-9.4 | 710-748 | 15-23 | 1194-1830 | 20-22 | 160-175 | 250 | ||
| SC24 | 9.6-10.0 | 0.96- 1.00 | 9.2-9.7 | 730-770 | 15-23 | 1194-1830 | 22-24 | 175-190 | 250 | ||
| Sm2Co17 | SCS22 | 9.3-9.7 | 0.93-0.97 | 8.5-9.3 | 676-740 | >18 | >1433 | 20-23 | 160-183 | 350 | |
| SCS24 | 9.5-10.2 | 0.95- 1.02 | 8.7-9.6 | 692-764 | >18 | >1433 | 22-24 | 175-191 | 350 | ||
| SCS24H | 9.5-10.2 | 0.95- 1.02 | 8.7-9.6 | 692-764 | >25 | >1990 | 22-24 | 175-191 | 350 | ||
| SCS26M | 10.2-10.5 | 1.02- 1.05 | 8.5-9.8 | 676-780 | 12-18 | 955-1433 | 24-26 | 191-207 | 350 | ||
| SCS26 | 10.2-10.5 | 1.02- 1.05 | 9.4-10.0 | 748-796 | >18 | >1433 | 24-26 | 191-207 | 350 | ||
| SCS26H | 10.2-10.5 | 1.02- 1.05 | 9.4-10.0 | 748-796 | >25 | >1990 | 24-26 | 191-207 | 350 | ||
| SCS28M | 10.3-10.8 | 1.03- 1.08 | 8.5-10.0 | 676-796 | 12-18 | 955-1433 | 26-28 | 207-223 | 350 | ||
| SCS28 | 10.3-10.8 | 1.03- 1.08 | 9.5-10.2 | 796-812 | >18 | >1433 | 26-28 | 207-223 | 350 | ||
| SCS28H | 10.3-10.8 | 1.03- 1.08 | 9.5-10.2 | 796-812 | >25 | >1990 | 26-28 | 207-223 | 350 | ||
| SCS30M | 10.8-11.0 | 1.08- 1.10 | 8.5-10.5 | 676-835 | 12-18 | 955-1433 | 28-30 | 223-239 | 350 | ||
| SCS30 | 10.8-11.0 | 1.08- 1.10 | 9.9-10.5 | 788-835 | >18 | >1433 | 28-30 | 223-239 | 350 | ||
| SCS30H | 10.8-11.0 | 1.08- 1.10 | 9.9-10.5 | 788-835 | >25 | >1990 | 28-30 | 223-239 | 350 | ||
| SCS32M | 11.0-11.3 | 1.10-1.13 | 8.5-10.7 | 676-852 | 12-18 | 955-1433 | 29-32 | 231-255 | 350 | ||
| SCS32 | 11.0-11.3 | 1.10-1.13 | 10.2-10.8 | 812-860 | >18 | >1433 | 29-32 | 231-255 | 350 | ||
| SCS32H | 11.0-11.3 | 1.10-1.13 | 10.2-10.8 | 812-860 | >25 | >1990 | 29-32 | 231-255 | 350 | ||
| SCS35 | 11.6-12.0 | 1.16-1.20 | 10.9-11.4 | 868-908 | >18 | >1433 | 32-35 | 255-278 | 350 | ||
| Low Temp Coeff Sm2Co17 | SCL18LT | 8.4-8.9 | 0.84-0.89 | 7.9-8.4 | 629-668 | >18 | >1433 | 17-19 | 135-151 | 350 | |
| SCL20LT | 8.9-9.4 | 0.89-0.94 | 8.3-8.9 | 660-708 | >18 | >1433 | 19-21 | 151-167 | 350 | ||
| SCL22LT | 9.4-9.8 | 0.94-0.98 | 8.7-9.3 | 692-740 | >18 | >1433 | 21-23 | 167-183 | 350 | ||
| High Temp Resistance Sm2Co17 | SCG24 | 9.9-10.4 | 0.99- 1.04 | 9.3-9.9 | 740-788 | >23 | >1830 | 23-25 | 183-199 | 400 | |
| SCG22 | 9.4-9.9 | 0.94-0.99 | 8.8-9.4 | 700-748 | >23 | >1830 | 21-23 | 167-183 | 450 | ||
| SCG20 | 8.9-9.4 | 0.89-0.94 | 8.3-8.9 | 660-708 | >23 | >1830 | 19-21 | 151-167 | 500 | ||
