Magnetic Assembly For Filtration Of Food Processing Line，Strong Adsorption, High Temperature Resistance, Corrosion Resis
| Place of Origin | CHINA |
|---|---|
| Brand Name | JN |
| Certification | ISO9001 |
| Model Number | 1101FL |
| Minimum Order Quantity | 1000PCS |
| Price | Negotiable |
| Packaging Details | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time | 25 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000K PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Magnetic Assembly For Filtration | Application Industry | Food Processing Industry |
|---|---|---|---|
| Application | Food Processing Lines | Materials | NdFeB Rare Earth Materials(or AlNiCo /SmCo) |
| Process | Sintered | Shape | Grid |
| Size | Made To Order | Coating | SS316(or 304) Stainless Steel Tube |
| Highlight | ISO9001 Permanent Magnet Assembly,6mm Permanent Magnet Assembly,8mm NdFeB Rare earth material |
||
Product Description
Magnetic Assembly for filtration of food processing line,Strong adsorption, high temperature resistance, corrosion resis
Description

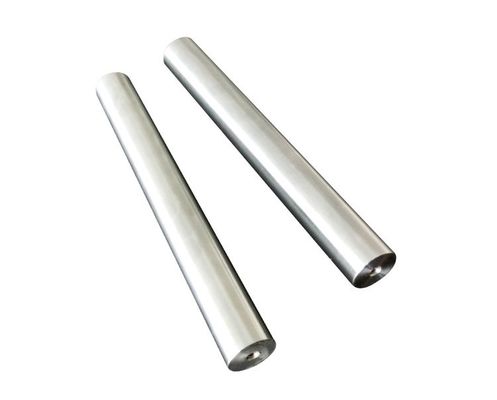

Magnetic filter components (magnetic rods) are widely used in production lines in ceramics, electric power, mining, plastics, chemicals, rubber, pharmaceuticals, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries, and are used to remove ferromagnetic impurities in powder, granular or liquid slurry raw materials. (Common foreign objects such as iron filings, iron nails, screws, rust and so on)

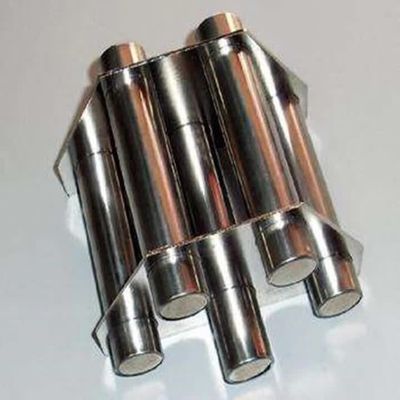

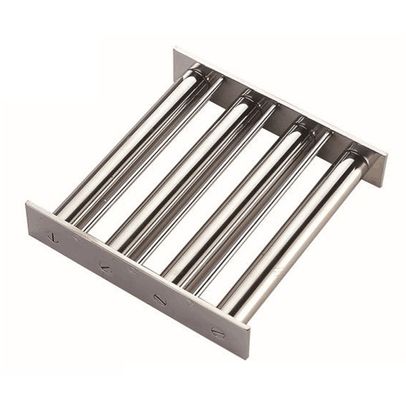

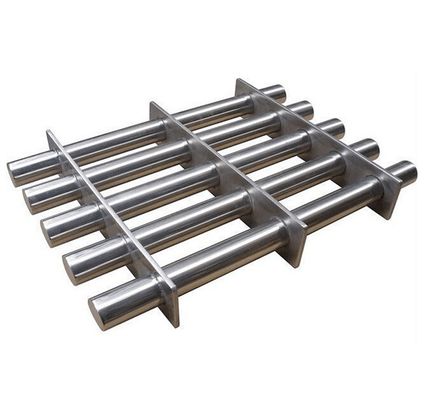

The filter assembly is fixed in the sealed stainless steel rod housing by several magnet blocks, which can be assembled into grids, grates, cubes, spheres, sectors, circles, etc. as needed. These components can be easily installed into your production line, which is a simple, cost-effective, efficient and safe magnetic separation solution.
We can customize different materials according to the needs of the use scenario to make, magnets are generally made of NdFeB, you can also choose SmCo, AlNiCo and ferrite magnets, magnetic field strength from 4000Gs to 12000Gs, the maximum working temperature can reach 350 °C, the shell is generally made of SS304 stainless steel, higher requirements can also use food grade SS316 material, all have good cleaning and corrosion resistance.
Our company with China’s No.1 rare earth miner Chinalco has a strategic partnership, with a complete production chain and a sound quality assurance system.
Customized needs
To Order, please provide the following key requirements:
1. Performance requirements (such as Remanence Br, Intrinsic Coercivity Hcj, Working Temperture, etc.)
2. Shape and size (drawings are available)
3. Tolerance requirements (please pay attention to cost-effective, to avoid excessive quality)
4.Testing requirements
5. Futures requirements
6.Packing and transportation requirements
Performance
The relationship between the outer diameter specifications of the commonly used magnetic rod and the magnetic strength is as follows.
| Magnetic strength | ||||||||
Magnetic rod outer diameter |
4000GS | 5000GS | 6000GS | 7000GS | 8000GS | 10000GS | 11000GS | 12000GS |
| Φ6(0.24") | √UH | － | － | － | － | － | － | － |
| Φ8(0.31") | √UH | － | － | － | － | － | － | － |
| Φ9(0.35") | √UH | － | － | － | － | － | － | － |
| Φ10(0.39") | √UH | － | － | － | － | － | － | － |
| Φ12(0.47") | √UH | √UH | － | － | － | － | － | － |
| Φ16(0.63") | √UH | √UH | √UH | － | － | － | － | － |
| Φ19 (0.75") | √UH | √UH | √UH | √UH | － | － | － | － |
| Φ20.3(0.80") | √UH | √UH | √UH | √UH | － | － | － | － |
| Φ22 (0.85") | √UH | √UH | √UH | √UH | √UH | － | － | － |
| Φ25 (1.00") | √UH | √UH | √UH | √UH | √UH | √UH | √N | √N |
| Φ32 (1.25") | √UH | √UH | √UH | √UH | √UH | √UH | √N | √N |
| Φ38 (1.50") | √UH | √UH | √UH | √UH | √UH | √UH | √N | √N |
| Φ50 (1.75") | √UH | √UH | √UH | √UH | √UH | √UH | √N | √N |
| Φ63(2.48") | √UH | √UH | √UH | √UH | √UH | √UH | √N | √N |
Where H: indicates temperature resistance; There are six kinds of temperature resistance: (1) N: below 80 °C; (2) M: below 100°C; (3) H: below 120°C; (4) SH: below 150°C; (5) UH: below 180°C. (6) EH: 200°C or less (shown in the table below as the highest temperature resistance of the corresponding specifications). Operating temperatures above 200 °C are rare, and SmCo cores can be customized to reach a maximum operating temperature of 350 °C if required."
